Wheels 16"

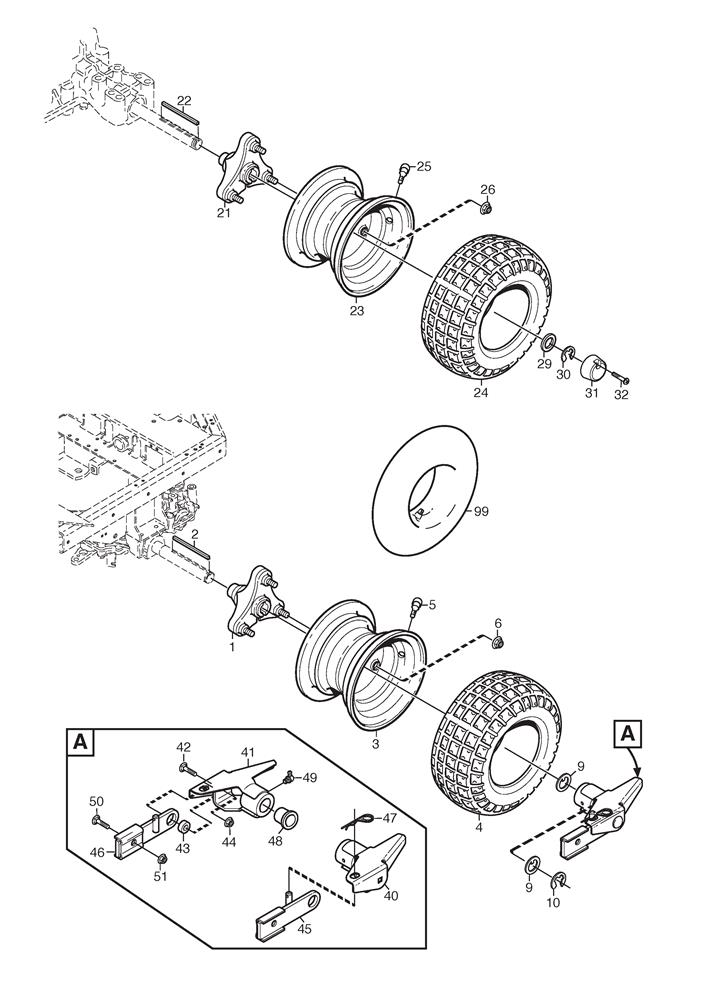

Wheels 16" assembly details for Stiga Park Diesel 4WD (13-6181-33) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1134-4844-03 WHEEL HUB ASSEMBLY £58.87 Add to
002 1134-3383-02 KEY (L=51 MM) £9.41 Add to
003 1134-4558-01 WHEEL RIM £107.93 Add to
004 9545-0116-00 TYRE 16 x 7.50-8 £86.13 Add to
005 9545-0500-00 VALVE ASSY. £5.73 Add to
006 9731-1031-22 LOCK NUT M6MF M10 £2.47 Add to
009 137670203/0 WASHER DEST=45 DINT=25.6 £5.05 Add to
010 9653-0002-04 CIRCLIP 1" £3.69 Add to
021 1134-4844-02 WHEEL HUB ASSEMBLY £57.52 Add to
022 1134-2471-01 KEY £9.41 Add to
023 1134-4558-01 WHEEL RIM £107.93 Add to
024 9545-0116-00 TYRE 16 x 7.50-8 £86.13 Add to
025 9545-0500-00 VALVE ASSY. £5.73 Add to
026 9731-1031-22 LOCK NUT M6MF M10 £2.47 Add to
029 1134-0341-01 WASHER £7.10 Add to
030 9653-0001-04 CIRCLIP 3/4" £2.61 Add to
031 1134-4796-01 HUB CAP £5.46 Add to
032 9947-0540-19 SCREW £2.06 Add to
042 9898-1025-16 SCREW £2.87 Add to
044 112156602/0 LOW SELF-LOCKING NUT M10 £1.79 Add to
045 1134-6397-01 ATTACHMENT-LH £68.42 Add to
047 9598-2001-02 SPRING PIN £5.19 Add to
048 1134-5686-01 BEARING BUSH D= 25.4mm £14.58 Add to
049 9501-0502-00 GREASE JOINT £8.87 Add to
050 9898-1035-16 SCREW 10 x 35 £3.15 Add to
051 9739-1031-22 NUT M10 £2.32 Add to
