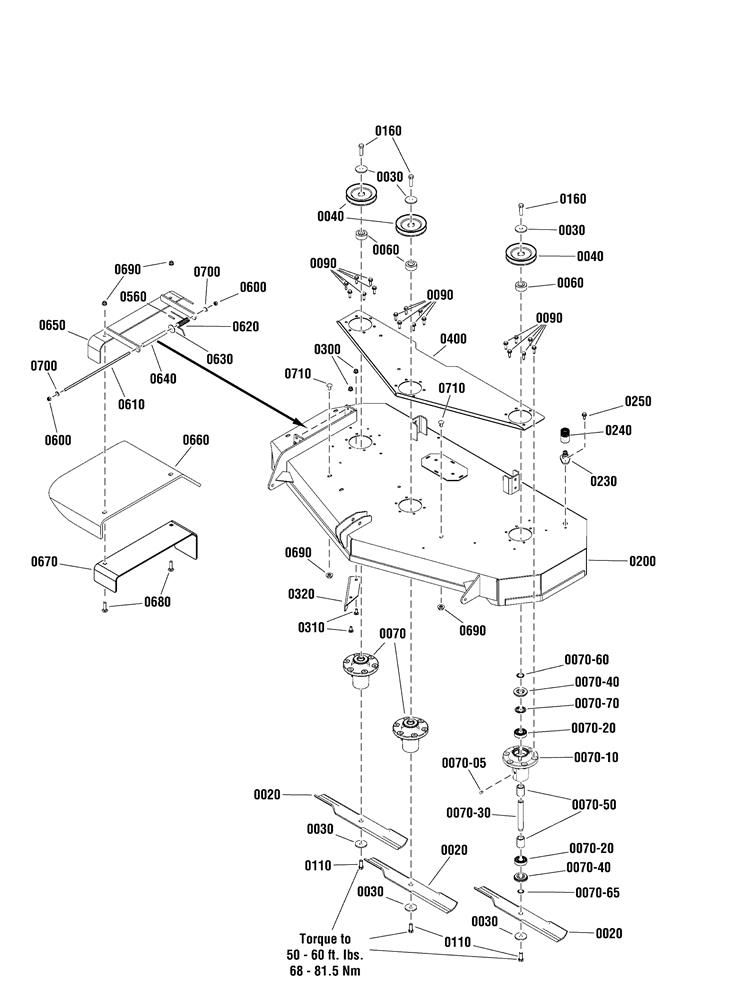

52" Mower Deck - Housing, Arbors & Blade Group , ZT - EU

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0020 SI-1756152AYP BLADE, MOWER, 18IN £32.77 Add to
0030 SI-1656916SM WASHER £6.92 Add to
0040 SI-1732951SM PULLEY-04.60 OD 1.000I £16.19 Add to
0070-05 SI-1704314SM LUBE FITTING, .250 DR £4.45 Add to
0070-20 SI-1735399YP BEARING, BALL, 20MM £10.15 Add to
0070-40 SI-84003166 ARBOUR COVER £10.03 Add to
0070-50 SI-1735328YP SPACER-BEARING PWDR MT £4.88 Add to
0070-60 SI-1960766YP RING, SELF LOCKING £3.69 Add to
0070-70 SI-7106224YP SEAL, BEARING £15.51 Add to
0090 SI-704146 BOLT £3.35 Add to
0110 SI-1920676SM SCREW £4.20 Add to
0230 SI-1756247YP ADAPTOR WASH PORT £4.79 Add to
0240 SI-1756246YP WASHOUT CONNECTOR £5.98 Add to
0250 SI-703228 SCREW# £3.26 Add to
0300 SI-703115 NUT £2.75 Add to
0310 SI-703185 SCREW £3.01 Add to
0560 SI-5023489SM CAP, PROTECTOR, .120 £2.92 Add to
0680 SI-703406 CAPSCREW,3/8-16X1.5 £3.18 Add to
0690 SI-5025394SM NUT, 3/8-16 HEX NYLOCK £3.69 Add to
0700 SI-703302 WASHER, 5/16 £2.75 Add to
