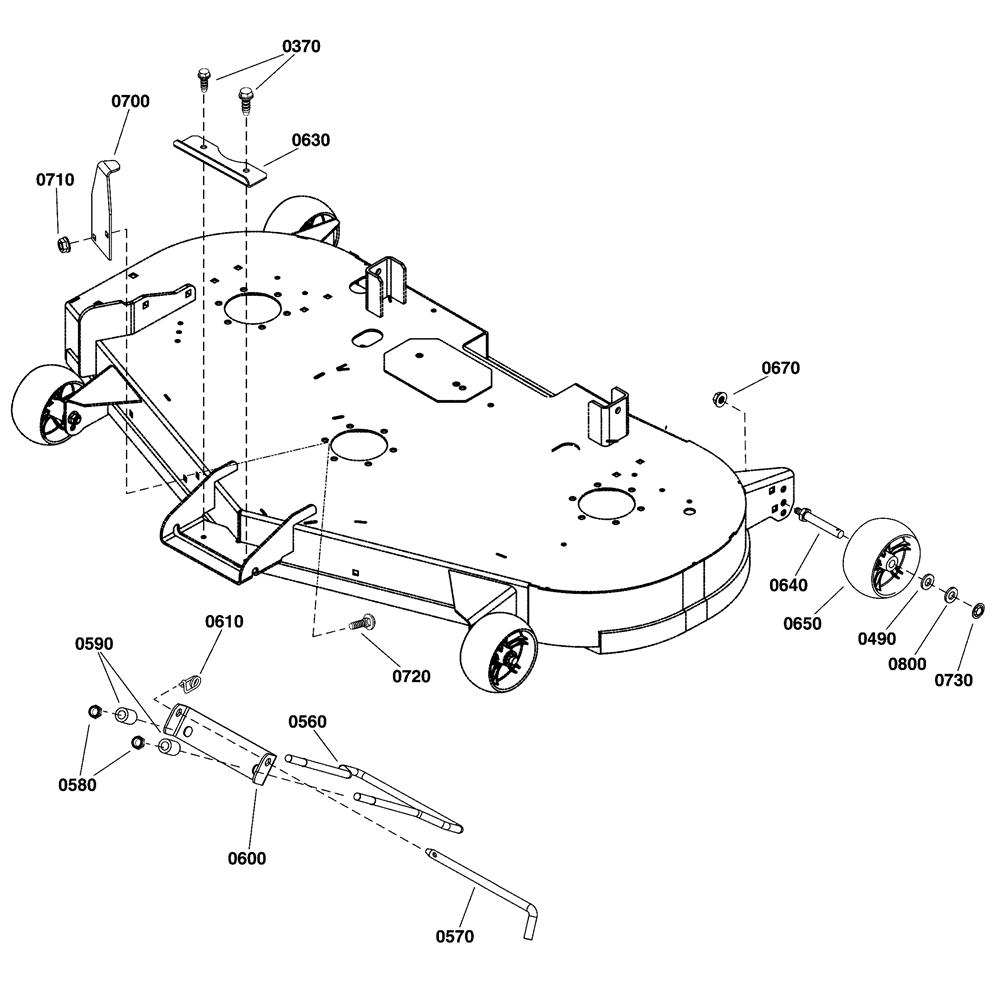

48" (122cm) RE mower deck - support Group

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0370 SI-703228 SCREW# £3.26 Add to
0490 SI-703853 WASHER, 0.516IDX1OD £3.09 Add to
0560 SI-1730097SM ROD-,500DIA .500-13 BA £51.52 Add to
0570 SI-1731414SM ROD-LATCH .500DIA 9" £14.23 Add to
0580 SI-1960379SM NUT £3.94 Add to
0590 SI-1679166SM SPACER-0.520ID 0.88 OD £5.56 Add to
0600 SI-1730221ASM HANGER-FRONT MOWER RE £10.32 Add to
0610 SI-703852 PIN, 5/16 X 0.375 £3.60 Add to
0650 SI-1736896YP WHEEL GAUGE BLACK POLY £15.25 Add to
0670 SI-703158 NUT £2.92 Add to
0710 SI-703409 NUT £2.75 Add to
0730 SI-705437 PUSH NUT, FLAT , 500 N/A POA
0800 SI-0020X3MA WASHER,SPRING .52X.99 £3.86 Add to
