46" Mower Deck - Housing , Arbor & Blades Group

Parts list

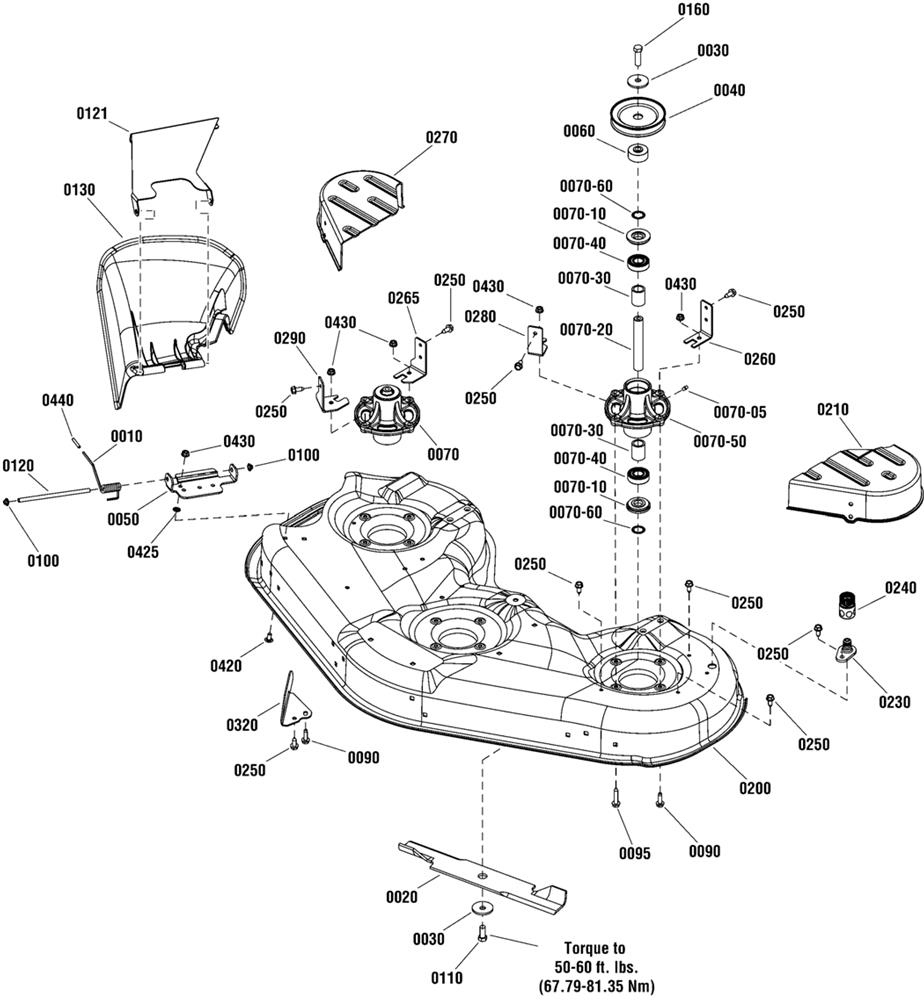

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0010 SI-1759042YP TORSION SPRING £5.39 Add to
0020 SI-1739889AYP BLADE 46" £37.88 Add to
0030 SI-1656916SM WASHER £6.92 Add to
0060 SI-1737457YP SPACER, PULLEY £9.13 Add to
0070-05 SI-1704314SM LUBE FITTING, .250 DR £4.45 Add to
0070-10 SI-84003166 ARBOUR COVER £10.03 Add to
0070-20 SI-1760276YP SHAFT £24.44 Add to
0070-30 SI-1735328YP SPACER-BEARING PWDR MT £4.88 Add to
0070-40 SI-1735399YP BEARING, BALL, 20MM £10.15 Add to
0070-50 SI-1735573YP HOUSING SPINDLE CAST A £51.65 Add to
0070-60 SI-1960766YP RING, SELF LOCKING £3.69 Add to
0090 SI-704146 BOLT £3.35 Add to
0095 SI-1930600SM SCREW-HEX WSHR HD TAP £4.28 Add to
0100 SI-704028 NUT, PUSH, 5/16 BZ £3.18 Add to
0110 SI-1920676SM SCREW £4.20 Add to
0121 SI-1758935AYP BRACKET SUPPORT £51.74 Add to
0130 SI-1687750YP 46/52 DEFLECTOR KIT £64.17 Add to
0200 SI-1687848YP 46 DECK PAN ZTX150 £1,525.83 Add to
0230 SI-1756247YP ADAPTOR WASH PORT £4.79 Add to
0240 SI-1756246YP WASHOUT CONNECTOR £5.98 Add to
0425 SI-703297 RETAINER, BOLT, 5/16 £2.75 Add to
0440 SI-5023489SM CAP, PROTECTOR, .120 £2.92 Add to
