46" Mower Deck - Housing , Arbor & Blades Group

Parts list

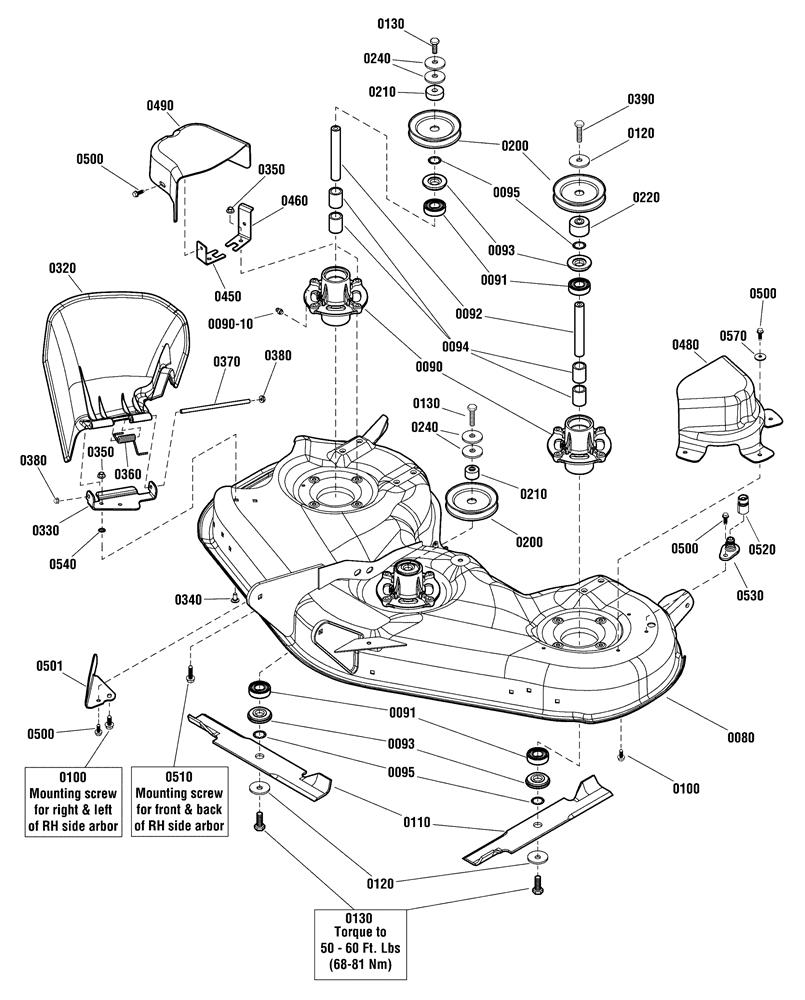

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0080 SI-1687625YP KIT, DECK, 46 £540.18 Add to
0090 SI-1735573YP HOUSING SPINDLE CAST A £51.65 Add to
0090-10 SI-1704314SM LUBE FITTING, .250 DR £4.45 Add to
0091 SI-1735399YP BEARING, BALL, 20MM £10.15 Add to
0092 SI-1760276YP SHAFT £24.44 Add to
0093 SI-84003166 ARBOUR COVER £10.03 Add to
0094 SI-1735328YP SPACER-BEARING PWDR MT £4.88 Add to
0095 SI-1960766YP RING, SELF LOCKING £3.69 Add to
0100 SI-704146 BOLT £3.35 Add to
0110 SI-1739889AYP BLADE 46" £37.88 Add to
0120 SI-1656916SM WASHER £6.92 Add to
0130 SI-1920676SM SCREW £4.20 Add to
0240 SI-1960769YP WASHER, BELLEVILLE £4.20 Add to
0320 SI-1687750YP 46/52 DEFLECTOR KIT £64.17 Add to
0330 SI-1758935AYP BRACKET SUPPORT £51.74 Add to
0340 SI-703125 BOLT £3.01 Add to
0350 SI-703409 NUT £2.75 Add to
0360 SI-1759042YP TORSION SPRING £5.39 Add to
0370 SI-1759064YP ROD £5.47 Add to
0380 SI-704028 NUT, PUSH, 5/16 BZ £3.18 Add to
0390 SI-703171 HHCS £3.43 Add to
0480 SI-1735750YP COVER, BELT/ARBOR LH £35.15 Add to
0500 SI-703228 SCREW# £3.26 Add to
0510 SI-1930600SM SCREW-HEX WSHR HD TAP £4.28 Add to
0520 SI-1756246YP WASHOUT CONNECTOR £5.98 Add to
0530 SI-1756247YP ADAPTOR WASH PORT £4.79 Add to
0540 SI-703297 RETAINER, BOLT, 5/16 £2.75 Add to
0570 SI-703302 WASHER, 5/16 £2.75 Add to
