46" & 52" Mower Deck - Height Adjustment Group

Parts list

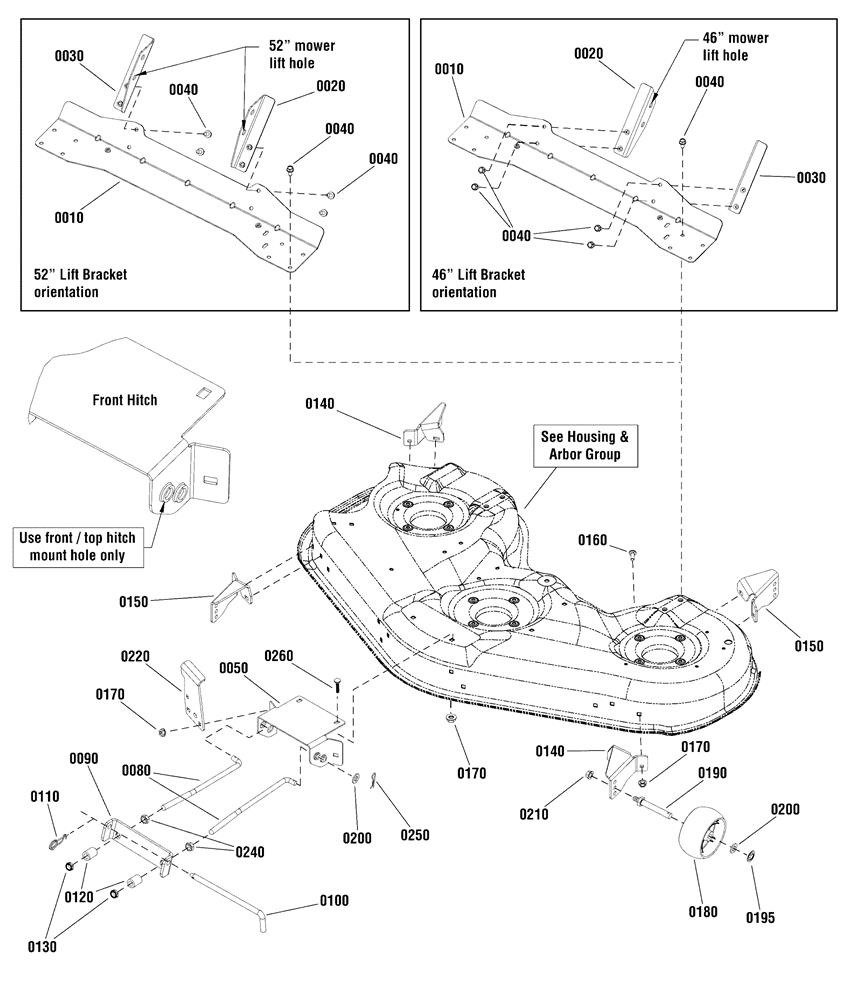

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0040 SI-703228 SCREW# £3.26 Add to
0050 SI-1736071BMYP HITCH, FRONT £27.67 Add to
0080 SI-1736081YP CARRIER ROD £12.02 Add to
0100 SI-1731414SM ROD-LATCH .500DIA 9" £14.23 Add to
0110 SI-703852 PIN, 5/16 X 0.375 £3.60 Add to
0120 SI-1679166SM SPACER-0.520ID 0.88 OD £5.56 Add to
0130 SI-1960379SM NUT £3.94 Add to
0170 SI-703409 NUT £2.75 Add to
0180 SI-1736896YP WHEEL GAUGE BLACK POLY £15.25 Add to
0195 SI-705437 PUSH NUT, FLAT , 500 N/A POA
0200 SI-703853 WASHER, 0.516IDX1OD £3.09 Add to
0210 SI-703893 NUT £4.11 Add to
0250 SI-703300 PIN 3/32 X 1.6 £2.75 Add to
0260 SI-703185 SCREW £3.01 Add to
