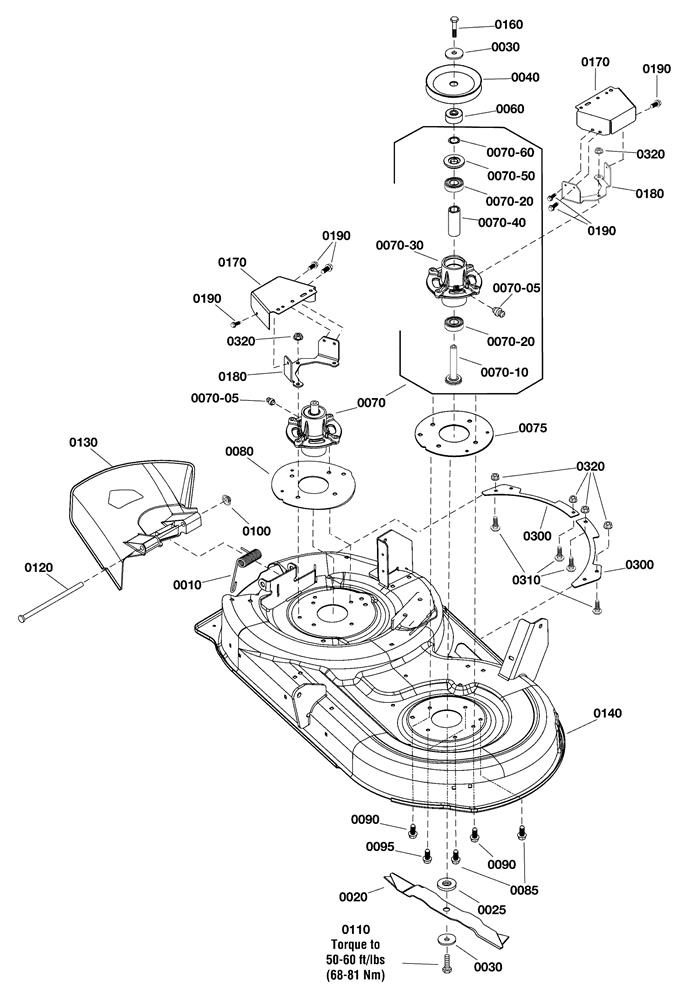

42" Mower Deck - Housing , Arbors & Blade Group

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0010 SI-7035813SM SPING, TORSION, SIDE N/A POA
0020 SI-1752100AYP BLADE £43.66 Add to
0025 SI-1755892YP SPACER, BLADE ADAPTOR £24.44 Add to
0030 SI-1656916SM WASHER £6.92 Add to
0070 SI-84003175 ARBOUR ASS £92.41 Add to
0070-05 SI-1704314SM LUBE FITTING, .250 DR £4.45 Add to
0070-10 SI-84003170 SHAFT, SPINDLE £29.03 Add to
0070-20 SI-1735399YP BEARING, BALL, 20MM £10.15 Add to
0070-30 SI-84003654 BRG HSG CASTING ONLY £66.83 Add to
0070-50 SI-84003166 ARBOUR COVER £10.03 Add to
0070-60 SI-1960766YP RING, SELF LOCKING £3.69 Add to
0085 SI-703949 SCREW-HEX WSHR HD TAPT £3.01 Add to
0090 SI-704146 BOLT £3.35 Add to
0095 SI-704318 SCREW, 5/16- 18X1- 1/2 £6.25 Add to
0110 SI-703579 BOLT £4.11 Add to
0120 SI-7104640YP ROD, DISCHARGE CHUTE £15.49 Add to
0130 SI-7104733YP CHUTE, SIDE DISCHARGE £82.40 Add to
0140 SI-1687913YP KIT - MOWER DECK (Special order No returns on this £2,899.26 Add to
0190 SI-703054 HWST, 1/4C X5/8 YZ £3.01 Add to
0300 SI-092426E701MA PLATE REAR £11.85 Add to
0310 SI-703185 SCREW £3.01 Add to
