42" Mower Deck Clutch & Support Group

Parts list

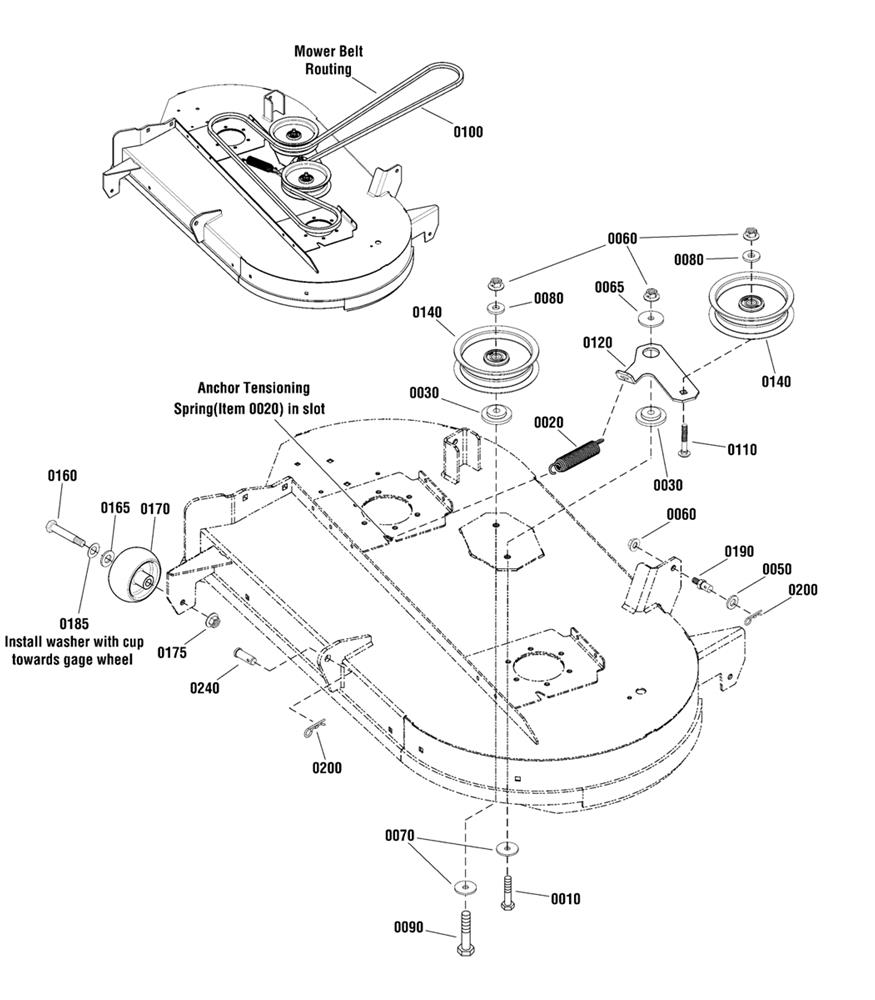

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0010 SI-703406 CAPSCREW,3/8-16X1.5 £3.18 Add to
0020 SI-1715772SM SPRING-EXTN 0.987ODX 0 £9.04 Add to
0030 SI-706128 SPACER, IDLER £4.71 Add to
0050 SI-703853 WASHER, 0.516IDX1OD £3.09 Add to
0060 SI-703158 NUT £2.92 Add to
0070 SI-703591 WASHER £3.43 Add to
0080 SI-703878 WASHER £2.75 Add to
0100 SI-1758101YP BELT £62.03 Add to
0110 SI-7900009SM RHSSNB, 3/8-16X2-1/4, £3.99 Add to
0140 SI-7034422SM (C) PULLEY, FLAT IDLE £36.51 Add to
0160 SI-2108765SM BOLT-WHEEL .375- £5.64 Add to
0165 SI-703853 WASHER, 0.516IDX1OD £3.09 Add to
0170 SI-1714760SM WHEEL £9.98 Add to
0175 SI-703158 NUT £2.92 Add to
0185 SI-0020X3MA WASHER,SPRING .52X.99 £3.86 Add to
0190 SI-704054 PIN £7.43 Add to
0200 SI-703300 PIN 3/32 X 1.6 £2.75 Add to
0240 SI-5025479YP CLEVIS PIN, 1/2 X 1.3 £4.37 Add to
