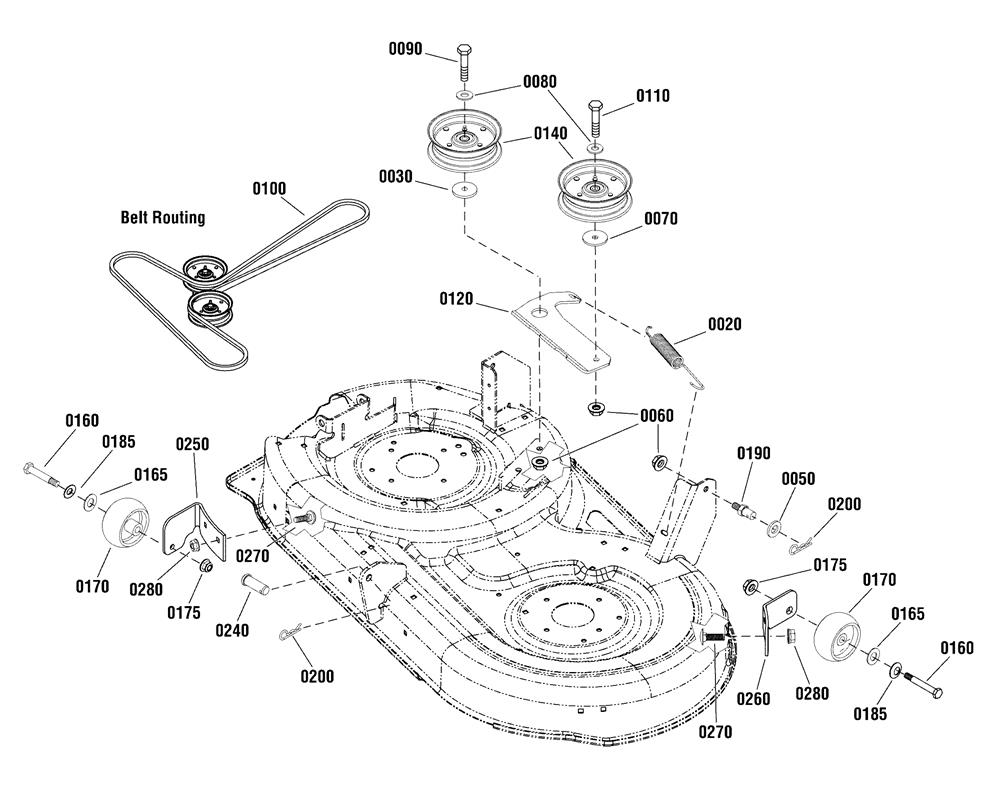

42" Mower Deck Clutch & Support Group

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0030 SI-706128 SPACER, IDLER £4.71 Add to
0050 SI-703853 WASHER, 0.516IDX1OD £3.09 Add to
0060 SI-5025394SM NUT, 3/8-16 HEX NYLOCK £3.69 Add to
0080 SI-703878 WASHER £2.75 Add to
0090 SI-703873 CAPSCREW, 3/8-16X2.5 N/A POA
0100 SI-1758101YP BELT £62.03 Add to
0110 SI-703872 CAPSCREW-HEX HD £6.15 Add to
0140 SI-1757894YP PULLEY, FLAT IDLER N/A POA
0160 SI-2108765SM BOLT-WHEEL .375- £5.64 Add to
0165 SI-5025158SM WASHER, 1/2" SAE N/A POA
0170 SI-1714760SM WHEEL £9.98 Add to
0175 SI-5025394SM NUT, 3/8-16 HEX NYLOCK £3.69 Add to
0185 SI-0020X3MA WASHER,SPRING .52X.99 £3.86 Add to
0190 SI-704054 PIN £7.43 Add to
0200 SI-703300 PIN 3/32 X 1.6 £2.75 Add to
0240 SI-5025479YP CLEVIS PIN, 1/2 X 1.3 £4.37 Add to
0250 SI-1731402ASM SUPPORT-GAUGE WHEEL R £14.32 Add to
0270 SI-703185 SCREW £3.01 Add to
