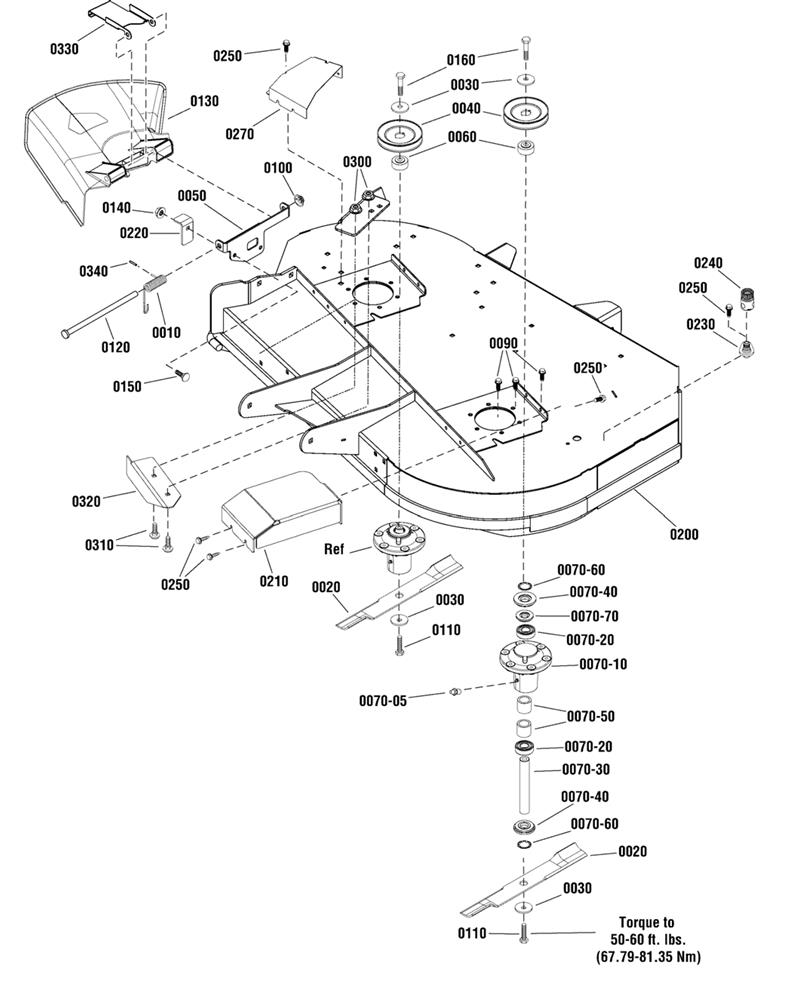

42" (107cm) Mower Deck - Housing, arbors & blades group, ZT-EU

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0010 SI-7035813SM SPING, TORSION, SIDE N/A POA
0030 SI-1656916SM WASHER £6.92 Add to
0060 SI-1737457YP SPACER, PULLEY £9.13 Add to
0070-05 SI-1704314SM LUBE FITTING, .250 DR £4.45 Add to
0070-20 SI-1735399YP BEARING, BALL, 20MM £10.15 Add to
0070-30 SI-1760276YP SHAFT £24.44 Add to
0070-40 SI-84003166 ARBOUR COVER £10.03 Add to
0070-50 SI-1735328YP SPACER-BEARING PWDR MT £4.88 Add to
0070-60 SI-1960766YP RING, SELF LOCKING £3.69 Add to
0070-70 SI-7106224YP SEAL, BEARING £15.51 Add to
0090 SI-704146 BOLT £3.35 Add to
0110 SI-1920676SM SCREW £4.20 Add to
0120 SI-7104640YP ROD, DISCHARGE CHUTE £15.49 Add to
0130 SI-7104733YP CHUTE, SIDE DISCHARGE £82.40 Add to
0150 SI-703815 BOLT, RD SQ 3/8-16X1 £3.69 Add to
0220 SI-1758593BMYP PROP, DEFLECTOR £16.70 Add to
0230 SI-1756247YP ADAPTOR WASH PORT £4.79 Add to
0240 SI-1756246YP WASHOUT CONNECTOR £5.98 Add to
0250 SI-703228 SCREW# £3.26 Add to
0300 SI-703115 NUT £2.75 Add to
0310 SI-703185 SCREW £3.01 Add to
0340 SI-5023489SM CAP, PROTECTOR, .120 £2.92 Add to
