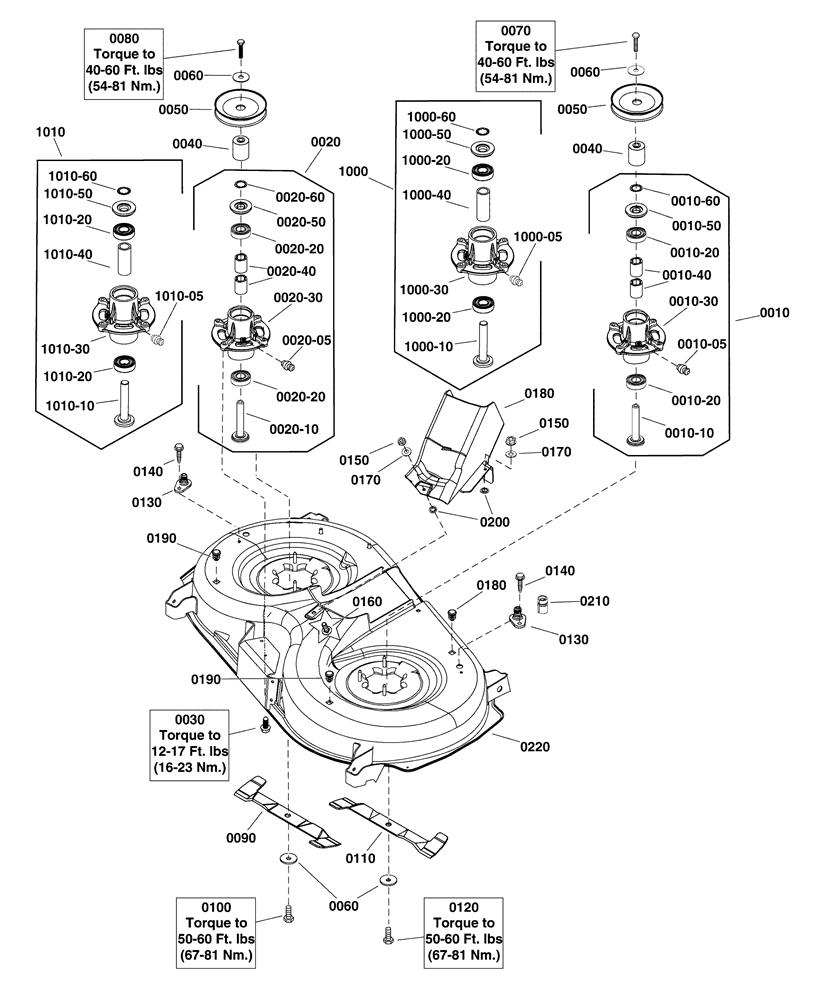

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref |
No |
Description |
Price |
|
0010-05
|
SI-1704314SM
|
LUBE FITTING, .250 DR
|
£4.45
|
Add to
|
0010-10
|
SI-1760276YP
|
SHAFT
|
£24.44
|
Add to
|
0010-20
|
SI-1735399YP
|
BEARING, BALL, 20MM
|
£10.15
|
Add to
|
0010-30
|
SI-1735573YP
|
HOUSING SPINDLE CAST A
|
£51.65
|
Add to
|
0010-40
|
SI-1735328YP
|
SPACER-BEARING PWDR MT
|
£4.88
|
Add to
|
0010-50
|
SI-84003166
|
ARBOUR COVER
|
£10.03
|
Add to
|
0010-60
|
SI-1960766YP
|
RING, SELF LOCKING
|
£3.69
|
Add to
|
0020-05
|
SI-1704314SM
|
LUBE FITTING, .250 DR
|
£4.45
|
Add to
|
0020-20
|
SI-1735399YP
|
BEARING, BALL, 20MM
|
£10.15
|
Add to
|
0020-30
|
SI-1735573YP
|
HOUSING SPINDLE CAST A
|
£51.65
|
Add to
|
0020-40
|
SI-1735328YP
|
SPACER-BEARING PWDR MT
|
£4.88
|
Add to
|
0020-50
|
SI-84003166
|
ARBOUR COVER
|
£10.03
|
Add to
|
0020-60
|
SI-1960766YP
|
RING, SELF LOCKING
|
£3.69
|
Add to
|
0030
|
SI-704318
|
SCREW, 5/16- 18X1- 1/2
|
£6.25
|
Add to
|
0050
|
SI-1758750YP
|
PULLEY
|
N/A
|
POA
|
0060
|
SI-1656916SM
|
WASHER
|
£6.92
|
Add to
|
0080
|
SI-703846
|
SCREW, 7/16-14X2.75
|
£9.26
|
Add to
|
0090
|
SI-1758513BMYP
|
BLADE RH 107CM
|
£76.83
|
Add to
|
0100
|
SI-703845
|
CAP SCREW
|
£6.66
|
Add to
|
0110
|
SI-1758514BMYP
|
BLADE LH 107CM
|
£76.83
|
Add to
|
0120
|
SI-1920676SM
|
SCREW
|
£4.20
|
Add to
|
0130
|
SI-1756247YP
|
ADAPTOR WASH PORT
|
£4.79
|
Add to
|
0140
|
SI-703228
|
SCREW#
|
£3.26
|
Add to
|
0150
|
SI-703409
|
NUT
|
£2.75
|
Add to
|
0160
|
SI-703800
|
RHSSNB, 5/16C X1 GR5 Y
|
£3.09
|
Add to
|
0170
|
SI-1919326SM
|
WASHER
|
£3.52
|
Add to
|
0180
|
SI-885719YP
|
CENTER CAP
|
£139.85
|
Add to
|
0200
|
SI-703297
|
RETAINER, BOLT, 5/16
|
£2.75
|
Add to
|
0210
|
SI-1756246YP
|
WASHOUT CONNECTOR
|
£5.98
|
Add to
|
0220
|
SI-885827BMYP
|
WELD, 106CM HOUSING A
|
£423.15
|
Add to
|
1000
|
SI-84003175
|
ARBOUR ASS
|
£92.41
|
Add to
|
1000-05
|
SI-1704314SM
|
LUBE FITTING, .250 DR
|
£4.45
|
Add to
|
1000-10
|
SI-1735573YP
|
HOUSING SPINDLE CAST A
|
£51.65
|
Add to
|
1000-20
|
SI-1735399YP
|
BEARING, BALL, 20MM
|
£10.15
|
Add to
|
1000-30
|
SI-84003170
|
SHAFT, SPINDLE
|
£29.03
|
Add to
|
1000-40
|
SI-84003166
|
ARBOUR COVER
|
£10.03
|
Add to
|
1000-60
|
SI-1960766YP
|
RING, SELF LOCKING
|
£3.69
|
Add to
|
1010
|
SI-84003176
|
BLADE BRG HSG
|
N/A
|
POA
|
1010-05
|
SI-1704314SM
|
LUBE FITTING, .250 DR
|
£4.45
|
Add to
|
1010-20
|
SI-1735399YP
|
BEARING, BALL, 20MM
|
£10.15
|
Add to
|
1010-30
|
SI-1735573YP
|
HOUSING SPINDLE CAST A
|
£51.65
|
Add to
|
1010-50
|
SI-84003166
|
ARBOUR COVER
|
£10.03
|
Add to
|
1010-60
|
SI-1960766YP
|
RING, SELF LOCKING
|
£3.69
|
Add to
|
