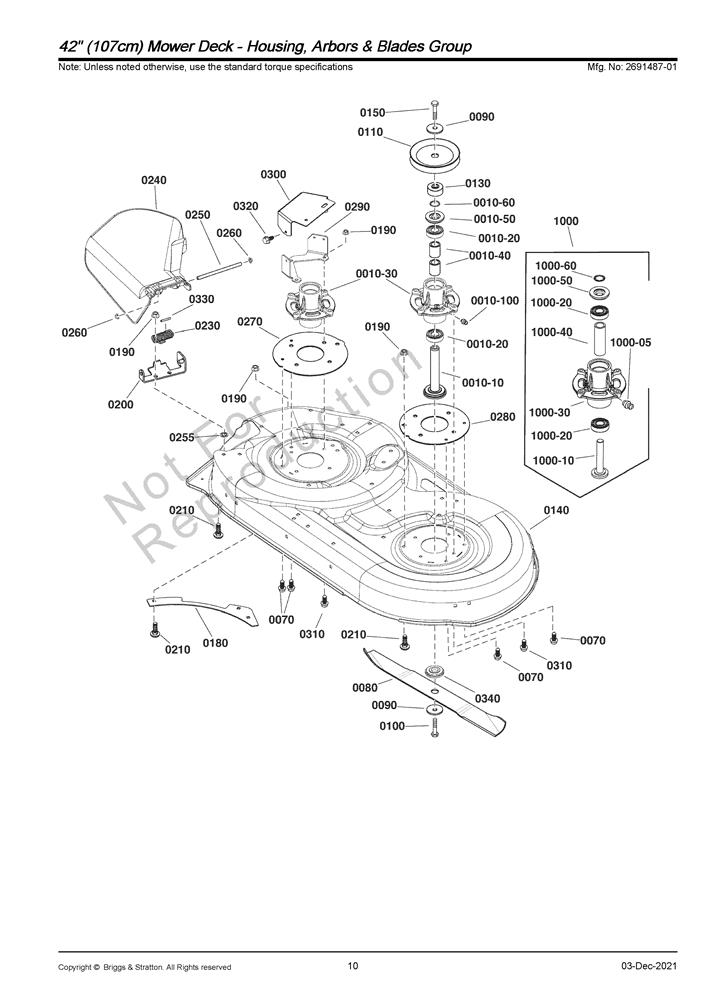

42" (107cm) Mower Deck - Housing, arbors & blades group

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0070 SI-704146 BOLT £3.35 Add to
0080 SI-1752100AYP BLADE £43.66 Add to
0090 SI-1656916SM WASHER £6.92 Add to
0100 SI-703579 BOLT £4.11 Add to
0130 SI-1737457YP SPACER, PULLEY £9.13 Add to
0140 SI-1736504ZYP HOUSING, 42 £655.51 Add to
0150 SI-703579 BOLT £4.11 Add to
0180 SI-092426E701MA PLATE REAR £11.85 Add to
0190 SI-703409 NUT £2.75 Add to
0200 SI-094956E701MA BRKT HINGE £17.29 Add to
0210 SI-703185 SCREW £3.01 Add to
0230 SI-0166X4MA SPRING £6.49 Add to
0240 SI-094707MA DEFLECTOR £107.11 Add to
0250 SI-094957ZMA ROD DEFLECTOR £6.66 Add to
0255 SI-703297 RETAINER, BOLT, 5/16 £2.75 Add to
0260 SI-703948 PUSHNUT, 3/8 £3.09 Add to
0310 SI-1930600SM SCREW-HEX WSHR HD TAP £4.28 Add to
0320 SI-26X263MA SCREW .25-20X0.59 HEX £4.20 Add to
0330 SI-5023489SM CAP, PROTECTOR, .120 £2.92 Add to
0340 SI-1755892YP SPACER, BLADE ADAPTOR £24.44 Add to
1000 SI-84003175 ARBOUR ASS £92.41 Add to
1000-05 SI-1704314SM LUBE FITTING, .250 DR £4.45 Add to
1000-10 SI-84003170 SHAFT, SPINDLE £29.03 Add to
1000-20 SI-1735399YP BEARING, BALL, 20MM £10.15 Add to
1000-30 SI-84003654 BRG HSG CASTING ONLY £66.83 Add to
1000-50 SI-84003166 ARBOUR COVER £10.03 Add to
1000-60 SI-1960766YP RING, SELF LOCKING £3.69 Add to
