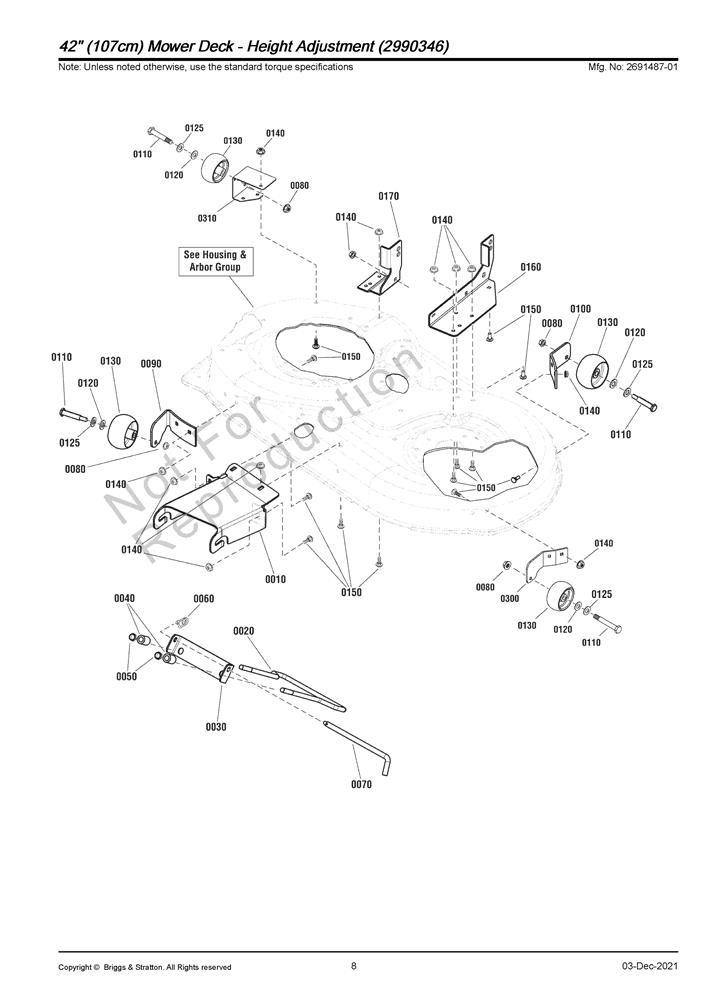

42" (107cm) Mower Deck - height adjustment

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0020 SI-1730097SM ROD-,500DIA .500-13 BA £51.52 Add to
0030 SI-1730221ASM HANGER-FRONT MOWER RE £10.32 Add to
0040 SI-1679166SM SPACER-0.520ID 0.88 OD £5.56 Add to
0050 SI-1960379SM NUT £3.94 Add to
0060 SI-703852 PIN, 5/16 X 0.375 £3.60 Add to
0070 SI-1731414SM ROD-LATCH .500DIA 9" £14.23 Add to
0080 SI-703158 NUT £2.92 Add to
0090 SI-1731402ASM SUPPORT-GAUGE WHEEL R £14.32 Add to
0110 SI-2108765SM BOLT-WHEEL .375- £5.64 Add to
0120 SI-703853 WASHER, 0.516IDX1OD £3.09 Add to
0125 SI-0020X3MA WASHER,SPRING .52X.99 £3.86 Add to
0130 SI-1714760SM WHEEL £9.98 Add to
0140 SI-703409 NUT £2.75 Add to
0150 SI-703185 SCREW £3.01 Add to
0170 SI-1753663BMYP SUPPORT, MOWER RH 38/ £13.38 Add to
0300 SI-1732258BMYP BRKT, GAUGE WHL FR LH £16.02 Add to
