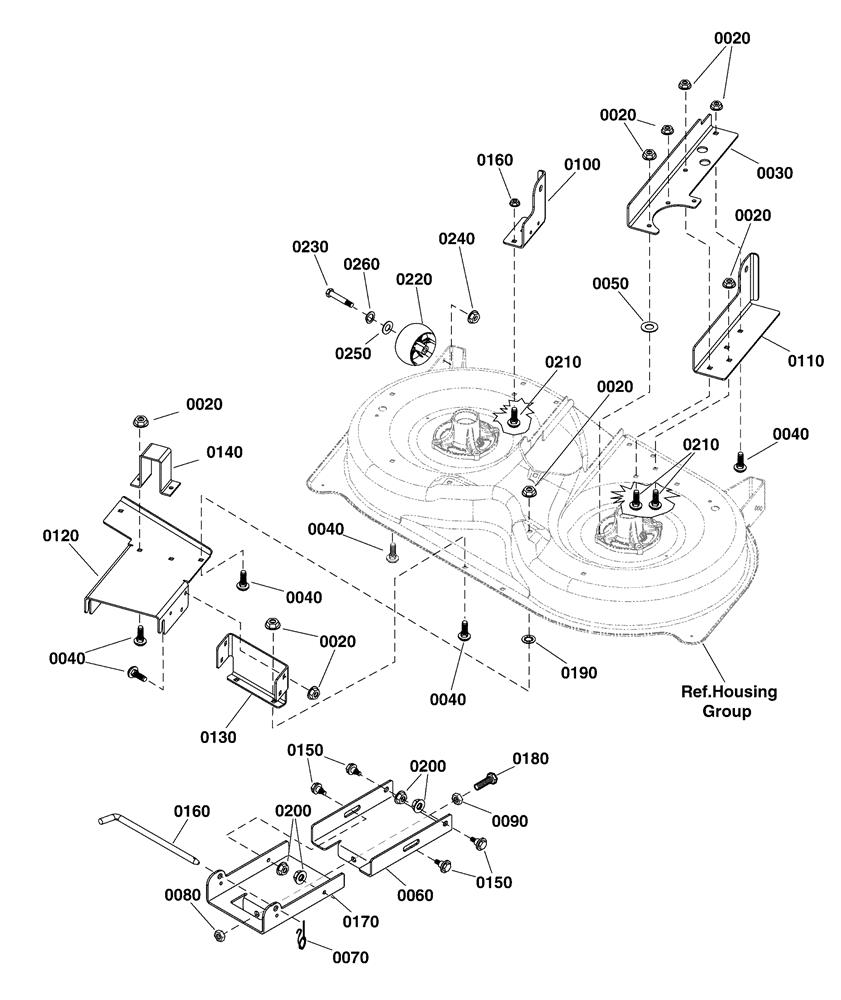

38" (96cm) Mower Deck - Support Group

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0020 SI-703409 NUT £2.75 Add to
0040 SI-703185 SCREW £3.01 Add to
0050 SI-1919326SM WASHER £3.52 Add to
0070 SI-703852 PIN, 5/16 X 0.375 £3.60 Add to
0080 SI-1960379SM NUT £3.94 Add to
0150 SI-1732426SM BOLT-SHLDR 5/16-18 0.5 £4.62 Add to
0160 SI-1731414SM ROD-LATCH .500DIA 9" £14.23 Add to
0190 SI-703297 RETAINER, BOLT, 5/16 £2.75 Add to
0200 SI-703115 NUT £2.75 Add to
0210 SI-703800 RHSSNB, 5/16C X1 GR5 Y £3.09 Add to
0220 SI-1714760SM WHEEL £9.98 Add to
0230 SI-2108765SM BOLT-WHEEL .375- £5.64 Add to
0240 SI-703158 NUT £2.92 Add to
0250 SI-703853 WASHER, 0.516IDX1OD £3.09 Add to
