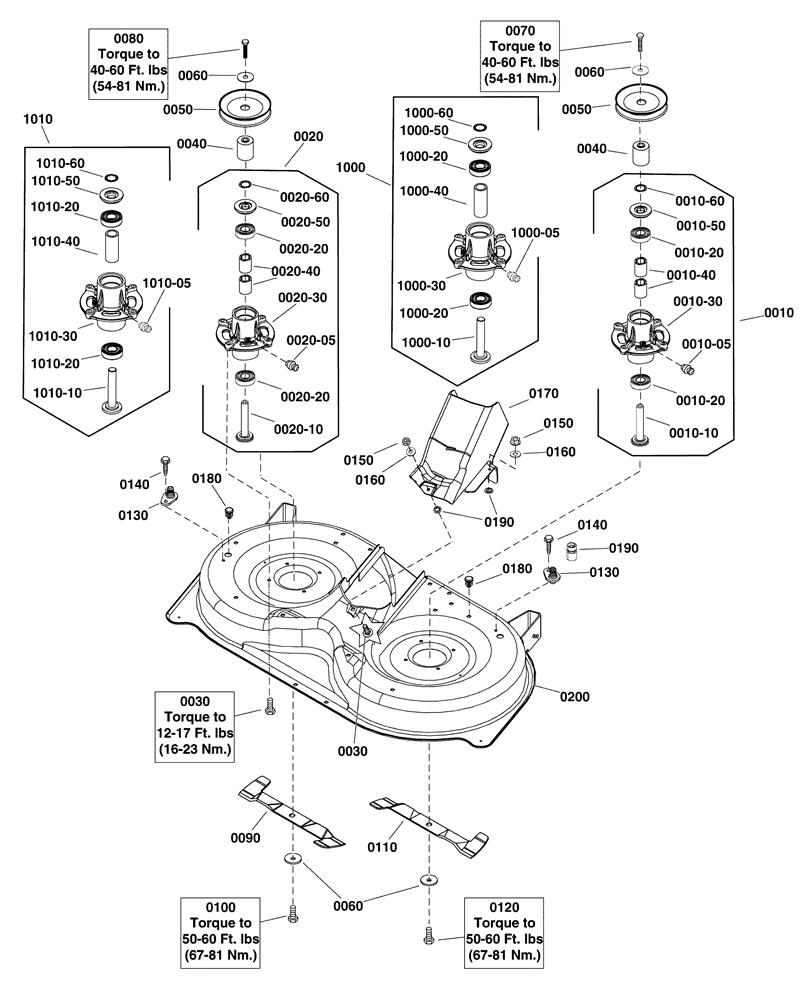

38" (96cm) Mower Deck - Housing, Arbors & Blades Group

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
0010-05	SI-1704314SM	LUBE FITTING, .250 DR	£4.45	Add to
0010-10	SI-1760276YP	SHAFT	£24.44	Add to
0010-20	SI-1735399YP	BEARING, BALL, 20MM	£10.15	Add to
0010-30	SI-1735573YP	HOUSING SPINDLE CAST A	£51.65	Add to
0010-40	SI-1735328YP	SPACER-BEARING PWDR MT	£4.88	Add to
0010-50	SI-84003166	ARBOUR COVER	£10.03	Add to
0010-60	SI-1960766YP	RING, SELF LOCKING	£3.69	Add to
0020-05	SI-1704314SM	LUBE FITTING, .250 DR	£4.45	Add to
0020-10	SI-1760279YP	SHAFT, SPINDLE, RH	£24.35	Add to
0020-20	SI-1735399YP	BEARING, BALL, 20MM	£10.15	Add to
0020-30	SI-1735573YP	HOUSING SPINDLE CAST A	£51.65	Add to
0020-40	SI-1735328YP	SPACER-BEARING PWDR MT	£4.88	Add to
0020-50	SI-84003166	ARBOUR COVER	£10.03	Add to
0020-60	SI-1960766YP	RING, SELF LOCKING	£3.69	Add to
0030	SI-704318	SCREW, 5/16- 18X1- 1/2	£6.25	Add to
0050	SI-1758750YP	PULLEY	N/A	POA
0060	SI-1656916SM	WASHER	£6.92	Add to
0080	SI-703846	SCREW, 7/16-14X2.75	£9.26	Add to
0090	SI-1758511BMYP	BLADE RH 96CM	£79.30	Add to
0100	SI-703845	CAP SCREW	£6.66	Add to
0110	SI-1758512BMYP	BLADE LH 96CM	£79.30	Add to
0120	SI-1920676SM	SCREW	£4.20	Add to
0130	SI-1756247YP	ADAPTOR WASH PORT	£4.79	Add to
0140	SI-703228	SCREW#	£3.26	Add to
0150	SI-703409	NUT	£2.75	Add to
0160	SI-1919326SM	WASHER	£3.52	Add to
0170	SI-885460YP	DECK, CENTER CAP	N/A	POA
0190	SI-1756246YP	WASHOUT CONNECTOR	£5.98	Add to
0200	SI-709692	DECK KIT	£387.35	Add to
1000	SI-84003175	ARBOUR ASS	£92.41	Add to
1000-05	SI-1704314SM	LUBE FITTING, .250 DR	£4.45	Add to
1000-10	SI-1735573YP	HOUSING SPINDLE CAST A	£51.65	Add to
1000-20	SI-1735399YP	BEARING, BALL, 20MM	£10.15	Add to
1000-30	SI-84003170	SHAFT, SPINDLE	£29.03	Add to
1000-40	SI-84003166	ARBOUR COVER	£10.03	Add to
1000-60	SI-1960766YP	RING, SELF LOCKING	£3.69	Add to
1010	SI-84003176	BLADE BRG HSG	N/A	POA
1010-05	SI-1704314SM	LUBE FITTING, .250 DR	£4.45	Add to
1010-20	SI-1735399YP	BEARING, BALL, 20MM	£10.15	Add to
1010-30	SI-1735573YP	HOUSING SPINDLE CAST A	£51.65	Add to
1010-50	SI-84003166	ARBOUR COVER	£10.03	Add to
1010-60	SI-1960766YP	RING, SELF LOCKING	£3.69	Add to
