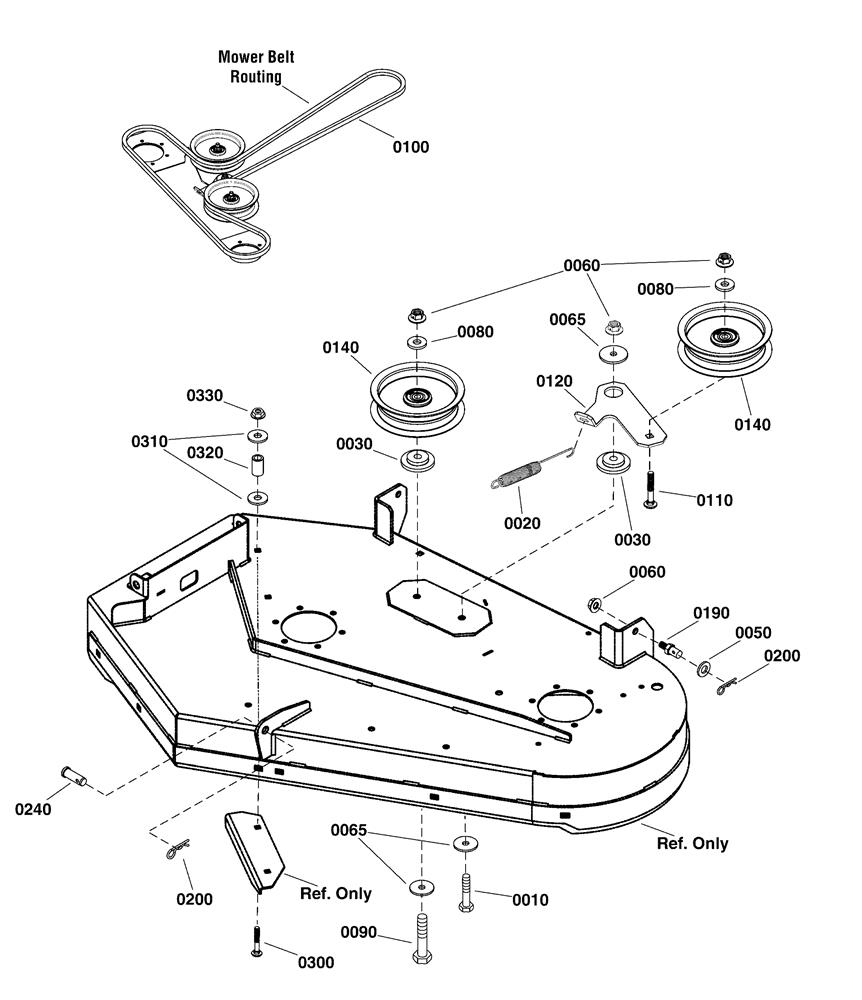

36" Mower Deck - Clutch & Support Group

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0010 SI-703406 CAPSCREW,3/8-16X1.5 £3.18 Add to
0030 SI-706128 SPACER, IDLER £4.71 Add to
0050 SI-703853 WASHER, 0.516IDX1OD £3.09 Add to
0060 SI-703158 NUT £2.92 Add to
0080 SI-703878 WASHER £2.75 Add to
0110 SI-7900009SM RHSSNB, 3/8-16X2-1/4, £3.99 Add to
0140 SI-1757894YP PULLEY, FLAT IDLER N/A POA
0190 SI-704054 PIN £7.43 Add to
0200 SI-703300 PIN 3/32 X 1.6 £2.75 Add to
0240 SI-5025479YP CLEVIS PIN, 1/2 X 1.3 £4.37 Add to
0330 SI-703115 NUT £2.75 Add to
