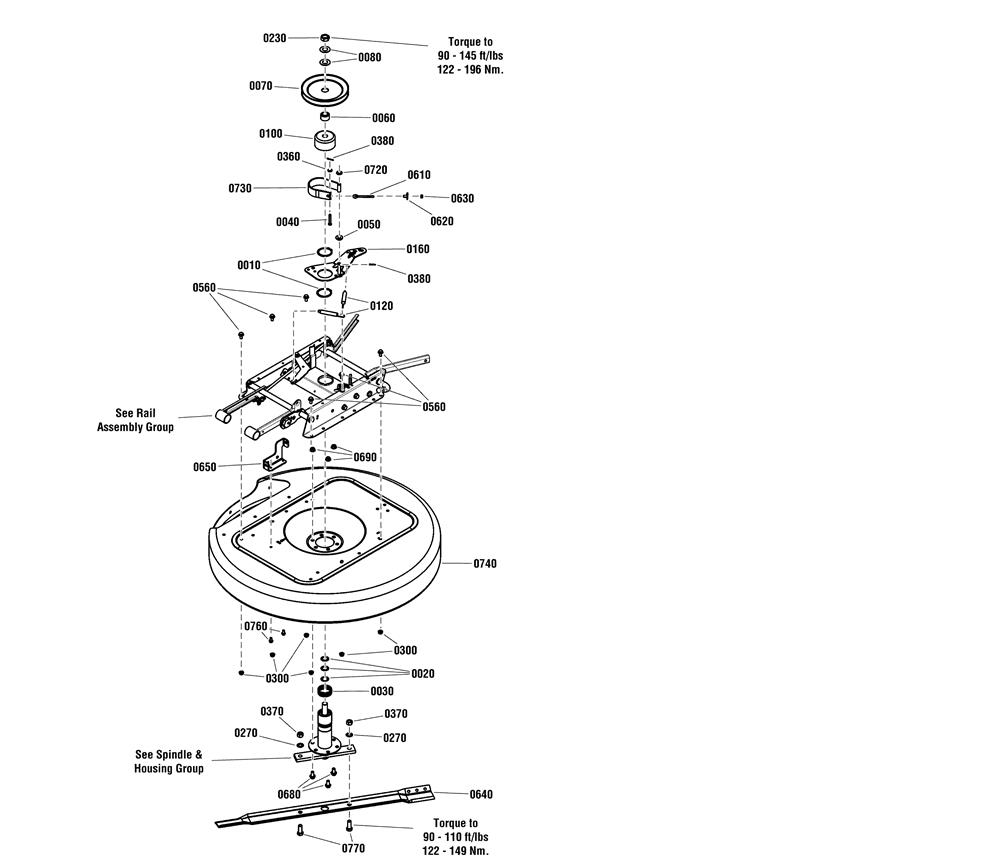

33" Mower Assembly - EURO

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0010 SI-7010740YP RING, RETAINING £4.45 Add to
0020 SI-7010935SM FW, .77X1.13X.06 £3.60 Add to
0030 SI-7012670YP TOLERANCE RING £7.51 Add to
0060 SI-7015290YP HUB, PULLEY, PM N/A POA
0070 SI-7018781YP PULLEY, DECK £25.80 Add to
0080 SI-7032027SM FW .77X1.5X.06 £3.99 Add to
0100 SI-7035378YP BRAKE DRUM, SPINDLE, C N/A POA
0120 SI-7036521YP SPRING £6.24 Add to
0230 SI-7074467SM HJN, 3/4F GR8 £4.54 Add to
0270 SI-7090509YP LOCKWASHER, BZ £3.69 Add to
0370 SI-7091939YP HN, 1/2F GR5 ZP £3.69 Add to
0560 SI-703823 BOLT, 5/16-18X0.625 £3.01 Add to
0630 SI-703127 NUT N/A POA
0640 SI-7019523BZYP BLADE 33 £44.34 Add to
0680 SI-703955 HFLB, 3/8C X3/4 GR5 YZ £8.19 Add to
0690 SI-703333 NUT £2.92 Add to
0730 SI-7503086YP ASSEMBLY, BRAKE BAND £25.12 Add to
0740 SI-7061972YP 33" DECK £592.15 Add to
0770 SI-7090491YP HHCS, 1/2F X1-1/4 GR5 £4.45 Add to
