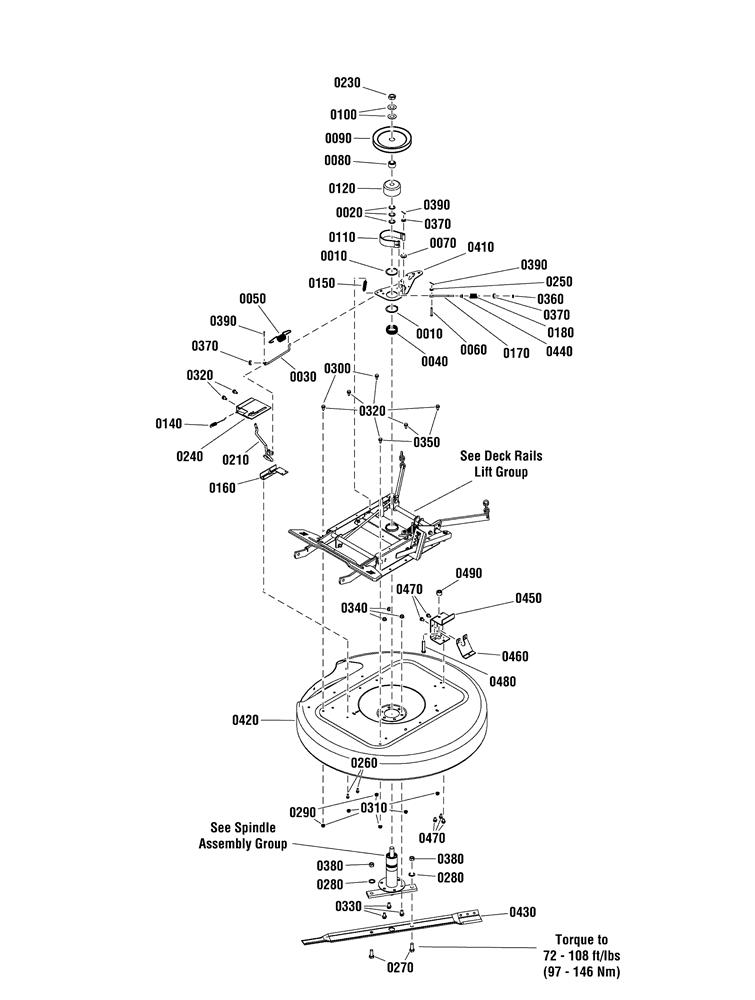

28" & 33" Mower Deck Assembly

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
0010	SI-7010740YP	RING, RETAINING	£4.45	Add to
0020	SI-7010935SM	FW, .77X1.13X.06	£3.60	Add to
0040	SI-7012670YP	TOLERANCE RING	£7.51	Add to
0050	SI-7014168YP	SPRING, BLADE HANDLE	£6.92	Add to
0080	SI-7015290YP	HUB, PULLEY, PM	N/A	POA
0100	SI-7032027SM	FW .77X1.5X.06	£3.99	Add to
0110	SI-7600133YP	BRAKE BAND	£23.93	Add to
0120	SI-7035378YP	BRAKE DRUM, SPINDLE, C	N/A	POA
0150	SI-7036521YP	SPRING	£6.24	Add to
0160	SI-7038021YP	MOUNT, SWITCH	£10.74	Add to
0170	SI-7046677YP	EYE BOLT	£5.05	Add to
0180	SI-7046782YP	SPRING, RECT WIRE	£10.57	Add to
0210	SI-7059254YP	WELD, BLADE ENGAGEMENT	£23.33	Add to
0230	SI-7074467SM	HJN, 3/4F GR8	£4.54	Add to
0240	SI-7600140YP	CLUTCH PLATE ASSY, RLM	£27.41	Add to
0260	SI-703054	HWST, 1/4C X5/8 YZ	£3.01	Add to
0270	SI-7090491YP	HHCS, 1/2F X1-1/4 GR5	£4.45	Add to
0280	SI-7090509YP	LOCKWASHER, BZ	£3.69	Add to
0300	SI-7090584YP	HFLB, 1/4C X1/2 GR5	N/A	POA
0310	SI-703409	NUT	£2.75	Add to
0320	SI-703949	SCREW-HEX WSHR HD TAPT	£3.01	Add to
0330	SI-703955	HFLB, 3/8C X3/4 GR5 YZ	£8.19	Add to
0340	SI-703333	NUT	£2.92	Add to
0350	SI-703823	BOLT, 5/16-18X0.625	£3.01	Add to
0370	SI-703332	WASHER, 1/4	£2.75	Add to
0380	SI-7091939YP	HN, 1/2F GR5 ZP	£3.69	Add to
0390	SI-703312	PIN, COTTER, 3/32X.75	£3.32	Add to
0420	SI-7061970YP	28" DECK	£512.79	Add to
0420	SI-7061972YP	33" DECK	£592.15	Add to
0430	SI-7019515BZYP	BLADE, 28", AIR LIFT	£36.00	Add to
0430	SI-7019523BZYP	BLADE 33	£44.34	Add to
0440	SI-7014343YP	BUSHING	£3.18	Add to
0450	SI-7035728BMYP	BRACKET FIXED IDLER E	N/A	POA
0460	SI-7036526BMYP	BRACE, FIXED IDLER EC	N/A	POA
0470	SI-703985	HWST, 5/16C X1/2 BZ	£3.18	Add to
0490	SI-703589	CAPSCREW, 3/8-16X2	£3.26	Add to
