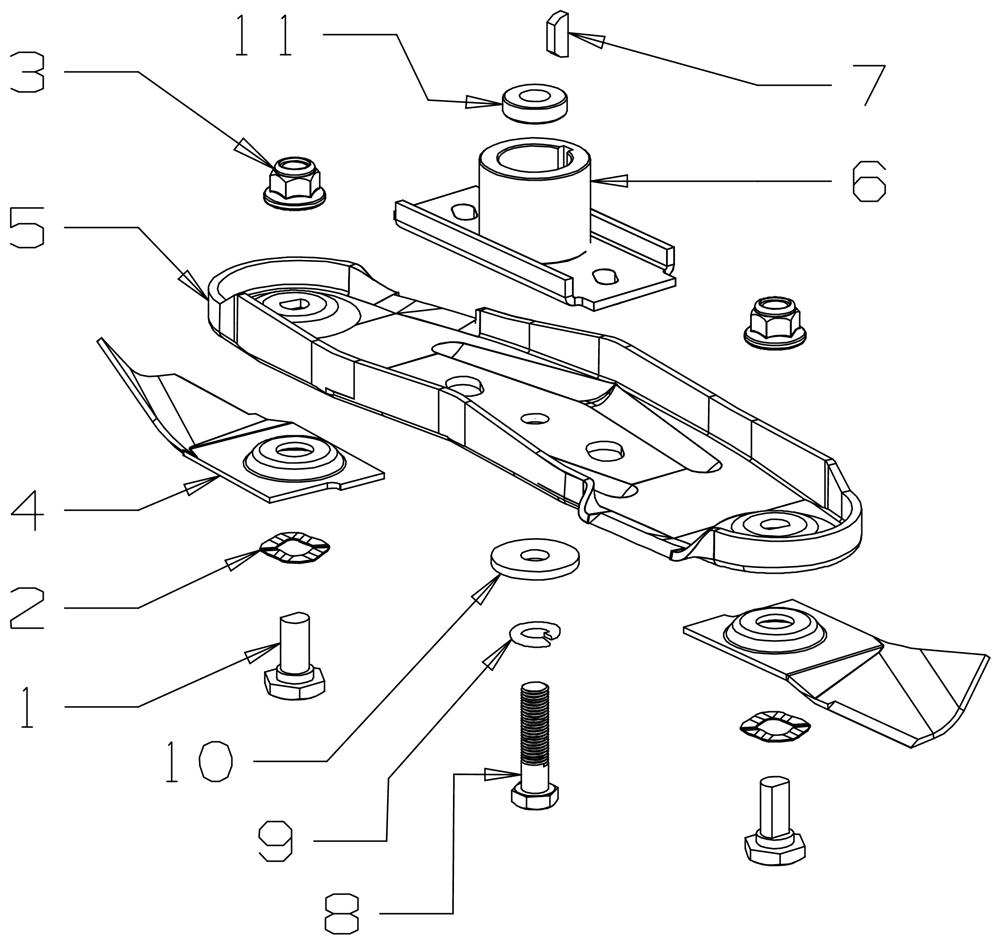

18" QUICK CUT BLADE ASSEMBLY (1)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 MA-581707 BOLT £2.21 Add to
002 MA-580693 WASHER WAVY 13,4X2.5 £1.89 Add to
003 MA-503672 NUT NYLOC M10 £2.02 Add to
004 MA-980658 BLADE (460MM CUSH) £6.43 Add to
005 MA-980653 BLADE CARRIER £26.05 Add to
006 MA-031640 BOSS 25MM £18.29 Add to
007 MA-500636 KEY £1.42 Add to
008 MA-503543 BOLT HEX NF 3/8X1.5 N £2.74 Add to
009 MA-500204 WASHER £1.68 Add to
010 MA-503667 WASHER, FLT 9.75 X 30 X 3 £1.19 Add to
011 MA-583542 SPACER £3.07 Add to
