HANDLE - "START" UNTIL S/N 545084(from s/n 144251 to s/n 545084 from 1988 to 2011)

Parts list

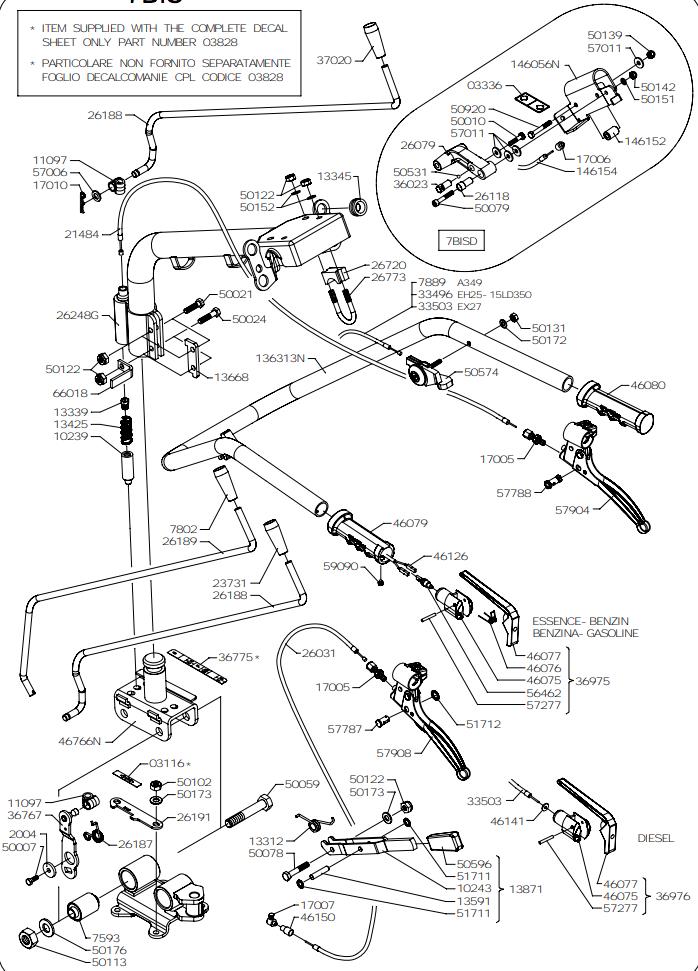

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
10243	10243	LEVER	£18.62	Add to
11097	11097	GEARBOX ARTICULATION	£3.34	Add to
13312	13312	LEVER SPRING	£4.64	Add to
13339	13339	PIN	£2.87	Add to
13425	13425	SPRING	£4.47	Add to
13591	13591	PIN	£3.57	Add to
136313N	136313N	HANDLEBAR	£85.65	Add to
13668	13668	SMALL PLATE	£5.34	Add to
146056N	146056N	DIFF. BLOCK LEVER SUPPORT	£13.91	Add to
146152	146152	SPACER	£5.10	Add to
146154	146154	WIRE	£9.97	Add to
17005	17005	ADJUSTER	£5.27	Add to
17006	17006	BUSHING	£51.96	Add to
17007	17007	CLAMP	£2.61	Add to
17010	17010	SPLIT PIN	£1.99	Add to
186351	186351	KNOB	£4.51	Add to
196689	196689	REVERSE GEAR CONTROL ROD	£30.42	Add to
2004	2004	WASHER	£3.69	Add to
21484	21484	WIRE	£14.89	Add to
23731	23731	KNOB	£3.67	Add to
26031	26031	WIRE	£10.58	Add to
26079	26079	HANDLE	£5.80	Add to
26118	26118	BUSHING	£2.91	Add to
26187	26187	LEVER SPRING	£3.69	Add to
26188	26188	CONTROL ROD	£18.04	Add to
26191	26191	SMALL PLATE	£7.36	Add to
26248G	26248G	STEERING COLUMN	£143.59	Add to
26720	26720	SUPPORT	£3.64	Add to
26773	26773	HANDLEBAR U-BOLT	£6.36	Add to
33496	33496	WIRE	£7.16	Add to
33503	33503	WIRE	£9.82	Add to
36023	36023	CONNECTION	£5.46	Add to
36975	36975	SUPPORT	£33.83	Add to
36976	36976	SUPPORT	£27.56	Add to
37020	37020	KNOB	£3.93	Add to
46075	46075	SUPPORT	£10.58	Add to
46076	46076	LEVER SPRING	£4.54	Add to
46077	46077	MOTOR STOP LEVER	£8.16	Add to
46079	46079	HANDLE	£5.10	Add to
46080	46080	HANDLE	£6.44	Add to
46126	46126	WIRE	£9.99	Add to
46141	46141	STICKER PLATE	£3.89	Add to
46150	46150	BUSHING	£3.04	Add to
46766N	46766N	SUPPORT	£51.43	Add to
50007	50007	SCREW	£1.50	Add to
50010	50010	SCREW	£1.42	Add to
50021	50021	SCREW	£1.46	Add to
50024	50024	SCREW	£1.46	Add to
50059	50059	SCREW	£3.23	Add to
50078	50078	SCREW	£1.69	Add to
50079	50079	SCREW	£1.49	Add to
50102	50102	NUT	£1.36	Add to
50113	50113	NUT	£1.71	Add to
50122	50122	NUT	£1.44	Add to
50131	50131	NUT	£1.32	Add to
50139	50139	NUT	£1.34	Add to
50142	50142	NUT	£1.32	Add to
50151	50151	WASHER	£1.28	Add to
50152	50152	WASHER	£1.30	Add to
50172	50172	WASHER	£1.30	Add to
50173	50173	WASHER	£1.34	Add to
50176	50176	WASHER	£1.60	Add to
50531	50531	BALL	£1.49	Add to
50574	50574	ACCELERATOR CONTROL LEVER	£8.74	Add to
50920	50920	SCREW	£1.45	Add to
51711	51711	RING	£1.44	Add to
51712	51712	RING	£1.49	Add to
56462	56462	SWITCH	£11.06	Add to
57006	57006	WASHER	£1.36	Add to
57011	57011	WASHER	£1.30	Add to
57277	57277	PIN	£1.61	Add to
57787	57787	CYLINDER	£3.39	Add to
57788	57788	CLAMP	£3.39	Add to
57904	57904	LEVER	£41.00	Add to
57908	57908	LEVER	£27.12	Add to
59090	59090	SCREW	£1.32	Add to
66018	66018	GEAR HINDERING BRACKET	£4.79	Add to
7593	7593	SILENTBLOC	£22.02	Add to
7802	7802	KNOB	£4.62	Add to
7889	7889	WIRE	£8.54	Add to
