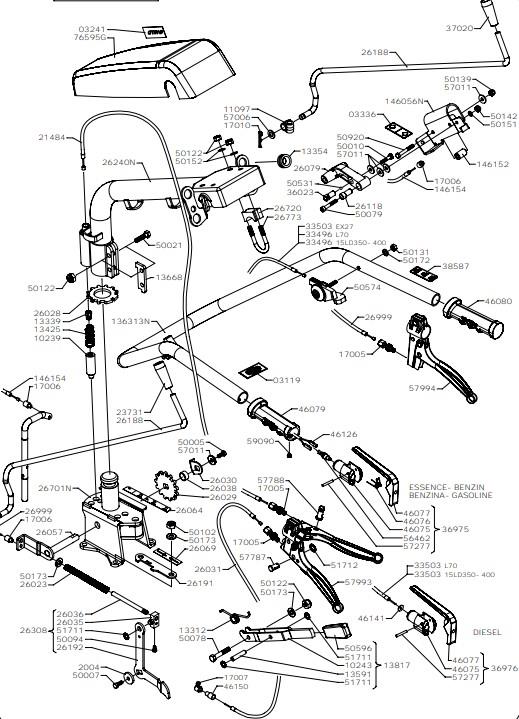

HANDLE "START" (from sn 226751 to sn 544886 from 1996 to 2011)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
03119 03119 STICKER £2.20 Add to
03241 03241 STICKER £2.23 Add to
03336 03336 LOCK DEVICE DECAL SHEET £1.58 Add to
10243 10243 LEVER £18.62 Add to
11097 11097 GEARBOX ARTICULATION £3.34 Add to
13312 13312 LEVER SPRING £4.64 Add to
13339 13339 PIN £2.87 Add to
13354 13354 RING £3.28 Add to
13425 13425 SPRING £4.47 Add to
13591 13591 PIN £3.57 Add to
136313N 136313N HANDLEBAR £85.65 Add to
13668 13668 SMALL PLATE £5.34 Add to
13817 13817 HANDLE £22.88 Add to
146056N 146056N DIFF. BLOCK LEVER SUPPORT £13.91 Add to
146152 146152 SPACER £5.10 Add to
146154 146154 WIRE £9.97 Add to
17005 17005 ADJUSTER £4.40 Add to
17006 17006 BUSHING £51.96 Add to
17010 17010 SPLIT PIN £1.99 Add to
186351 186351 KNOB £4.51 Add to
2004 2004 WASHER £3.69 Add to
21484 21484 WIRE £14.89 Add to
23731 23731 KNOB £3.67 Add to
26023 26023 SPRING £2.97 Add to
26028 26028 GEAR £8.25 Add to
26029 26029 GEAR £8.25 Add to
26030 26030 SMALL PLATE £5.90 Add to
26031 26031 WIRE £10.58 Add to
26035 26035 ARTICULATION £18.72 Add to
26036 26036 ROD £3.59 Add to
26038 26038 SPACER £2.34 Add to
26057 26057 LEVER £21.53 Add to
26064 26064 STICKER £3.49 Add to
26069 26069 STICKER £2.51 Add to
26079 26079 HANDLE £5.80 Add to
26118 26118 BUSHING £2.91 Add to
26188 26188 CONTROL ROD £18.04 Add to
26191 26191 SMALL PLATE £7.36 Add to
26192 26192 LEVER £15.10 Add to
26240N 26240N STEERING COLUMN £155.16 Add to
26308 26308 LEVER £31.07 Add to
26701N 26701N SUPPORT £101.42 Add to
26720 26720 SUPPORT £3.64 Add to
26773 26773 HANDLEBAR U-BOLT £6.36 Add to
26999 26999 WIRE £12.80 Add to
33496 33496 WIRE £7.16 Add to
33503 33503 WIRE £9.82 Add to
36023 36023 CONNECTION £5.46 Add to
36975 36975 SUPPORT £33.83 Add to
36976 36976 SUPPORT £27.56 Add to
37020 37020 KNOB £3.93 Add to
38587 38587 STICKER £3.34 Add to
43300 43300 ROD £5.23 Add to
46075 46075 SUPPORT £10.58 Add to
46076 46076 LEVER SPRING £4.54 Add to
46077 46077 MOTOR STOP LEVER £8.16 Add to
46079 46079 HANDLE £5.10 Add to
46080 46080 HANDLE £6.44 Add to
46126 46126 WIRE £9.99 Add to
46141 46141 STICKER PLATE £3.89 Add to
46150 46150 BUSHING £3.04 Add to
50005 50005 SHAFT -INPUT £1.34 Add to
50007 50007 SCREW £1.50 Add to
50010 50010 SCREW £1.42 Add to
50021 50021 SCREW £1.46 Add to
500220 500220 CLAMP £1.63 Add to
50078 50078 SCREW £1.69 Add to
50079 50079 SCREW £1.49 Add to
50094 50094 SCREW £1.40 Add to
50102 50102 NUT £1.36 Add to
50122 50122 NUT £1.44 Add to
50131 50131 NUT £1.32 Add to
50139 50139 NUT £1.34 Add to
50142 50142 NUT £1.32 Add to
50151 50151 WASHER £1.28 Add to
50152 50152 WASHER £1.30 Add to
50172 50172 WASHER £1.30 Add to
50173 50173 WASHER £1.34 Add to
50531 50531 BALL £1.49 Add to
50574 50574 ACCELERATOR CONTROL LEVER £8.74 Add to
50920 50920 SCREW £1.45 Add to
51711 51711 RING £1.44 Add to
51712 51712 RING £1.49 Add to
56462 56462 SWITCH £11.06 Add to
57006 57006 WASHER £1.36 Add to
57011 57011 WASHER £1.30 Add to
57277 57277 PIN £1.61 Add to
57787 57787 CYLINDER £3.39 Add to
57788 57788 CLAMP £3.39 Add to
57993 57993 LEVER £32.77 Add to
57994 57994 LEVER £29.58 Add to
59090 59090 SCREW £1.32 Add to
76595G 76595G GUARD £24.26 Add to
