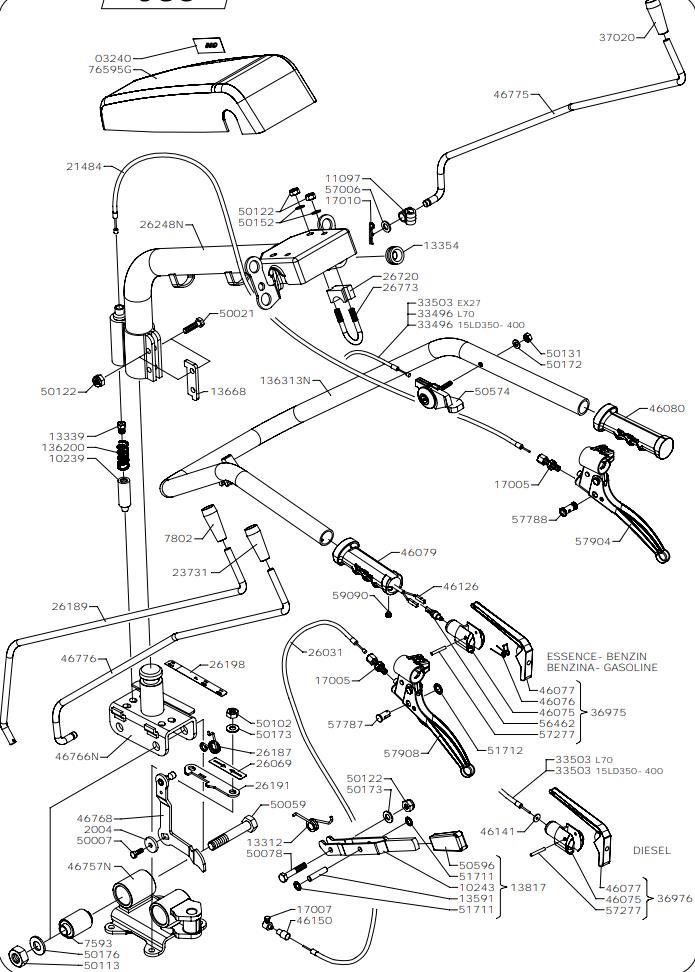

HANDLE"START"(from s/n 322278 to s/n 549345 from 2005 to 2011)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
03240 03240 STICKER £4.79 Add to
10243 10243 LEVER £18.62 Add to
11097 11097 GEARBOX ARTICULATION £3.34 Add to
13312 13312 LEVER SPRING £4.64 Add to
13339 13339 PIN £2.87 Add to
13354 13354 RING £3.28 Add to
13591 13591 PIN £3.57 Add to
136200 136200 SPRING £3.12 Add to
136313N 136313N HANDLEBAR £85.65 Add to
13668 13668 SMALL PLATE £5.34 Add to
13817 13817 HANDLE £22.88 Add to
17005 17005 ADJUSTER £5.27 Add to
17007 17007 CLAMP £2.61 Add to
17010 17010 SPLIT PIN £1.99 Add to
186351 186351 KNOB £4.51 Add to
196689 196689 REVERSE GEAR CONTROL ROD £30.42 Add to
2004 2004 WASHER £3.69 Add to
21484 21484 WIRE £14.89 Add to
23731 23731 KNOB £3.67 Add to
26031 26031 WIRE £10.58 Add to
26069 26069 STICKER £2.51 Add to
26187 26187 LEVER SPRING £3.69 Add to
26191 26191 SMALL PLATE £7.36 Add to
26198 26198 STICKER £5.25 Add to
26248N 26248N STEERING COLUMN £143.59 Add to
26720 26720 SUPPORT £3.64 Add to
26773 26773 HANDLEBAR U-BOLT £6.36 Add to
33496 33496 WIRE £7.16 Add to
33503 33503 WIRE £9.82 Add to
36975 36975 SUPPORT £33.83 Add to
36976 36976 SUPPORT £27.56 Add to
46075 46075 SUPPORT £10.58 Add to
46076 46076 LEVER SPRING £4.54 Add to
46077 46077 MOTOR STOP LEVER £8.16 Add to
46079 46079 HANDLE £5.10 Add to
46080 46080 HANDLE £6.44 Add to
46126 46126 WIRE £9.99 Add to
46141 46141 STICKER PLATE £3.89 Add to
46150 46150 BUSHING £3.04 Add to
46757N 46757N SUPPORT £64.59 Add to
46766N 46766N SUPPORT £51.43 Add to
46768 46768 LEVER £36.88 Add to
46775 46775 ROD £16.76 Add to
46776 46776 ROD £18.28 Add to
50007 50007 SCREW £1.50 Add to
50021 50021 SCREW £1.46 Add to
50059 50059 SCREW £3.23 Add to
50078 50078 SCREW £1.69 Add to
50102 50102 NUT £1.36 Add to
50113 50113 NUT £1.71 Add to
50122 50122 NUT £1.44 Add to
50131 50131 NUT £1.32 Add to
50152 50152 WASHER £1.30 Add to
50172 50172 WASHER £1.30 Add to
50173 50173 WASHER £1.34 Add to
50176 50176 WASHER £1.60 Add to
50574 50574 ACCELERATOR CONTROL LEVER £8.74 Add to
51711 51711 RING £1.44 Add to
51712 51712 RING £1.49 Add to
56462 56462 SWITCH £11.06 Add to
57006 57006 WASHER £1.36 Add to
57277 57277 PIN £1.61 Add to
57787 57787 CYLINDER £3.39 Add to
57788 57788 CLAMP £3.39 Add to
57904 57904 LEVER £41.00 Add to
57908 57908 LEVER £27.12 Add to
59090 59090 SCREW £1.32 Add to
7593 7593 SILENTBLOC £22.02 Add to
76595G 76595G GUARD £24.26 Add to
7802 7802 KNOB £4.62 Add to
