HANDLE "START"(from s/n 200251 to s/n 333866 from 1991 to 2008)

Parts list

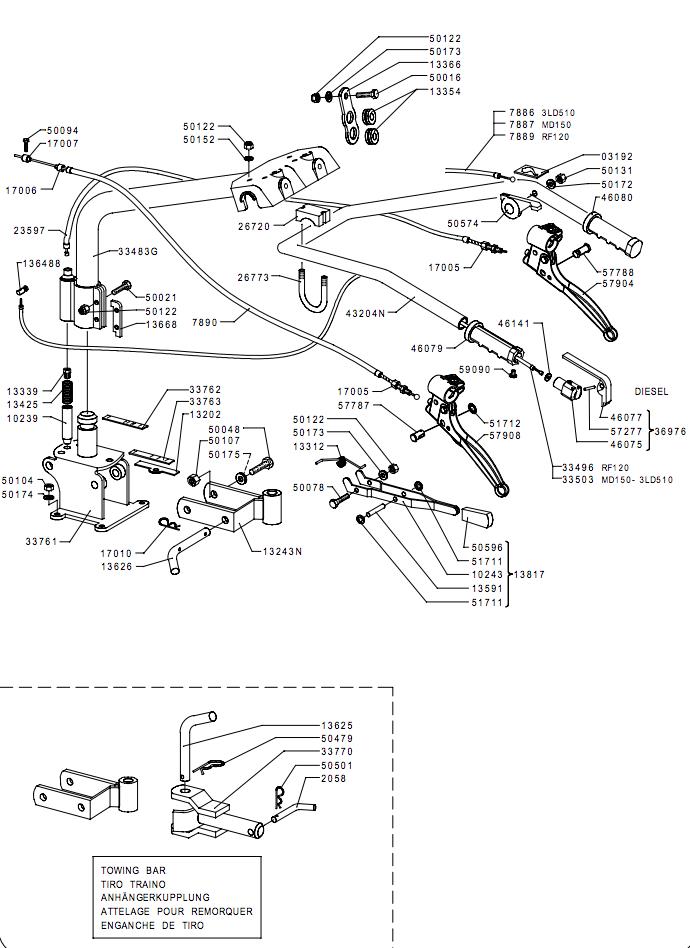

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
03192 03192 STICKER £3.12 Add to
10243 10243 LEVER £18.62 Add to
13202 13202 SMALL PLATE £5.41 Add to
13243N 13243N DRAWBAR £86.01 Add to
13312 13312 LEVER SPRING £4.64 Add to
13339 13339 PIN £2.87 Add to
13354 13354 RING £3.28 Add to
13366 13366 PLATE £6.84 Add to
13425 13425 SPRING £4.47 Add to
13591 13591 PIN £3.57 Add to
13625 13625 PIN £40.18 Add to
13626 13626 PIN £18.42 Add to
136488 136488 CLAMP £3.75 Add to
13668 13668 SMALL PLATE £5.34 Add to
13817 13817 HANDLE £22.88 Add to
17005 17005 ADJUSTER £5.27 Add to
17006 17006 BUSHING £51.96 Add to
17007 17007 CLAMP £2.61 Add to
17010 17010 SPLIT PIN £1.99 Add to
186351 186351 KNOB £4.51 Add to
2058 2058 LOCK £16.38 Add to
23597 23597 WIRE £9.41 Add to
26720 26720 SUPPORT £3.64 Add to
26773 26773 HANDLEBAR U-BOLT £6.36 Add to
33496 33496 WIRE £7.16 Add to
33503 33503 WIRE £9.82 Add to
33762 33762 STICKER £14.02 Add to
33763 33763 STICKER £5.49 Add to
36976 36976 SUPPORT £27.56 Add to
43204N 43204N HANDLEBAR £112.28 Add to
46075 46075 SUPPORT £10.58 Add to
46077 46077 MOTOR STOP LEVER £8.16 Add to
46079 46079 HANDLE £5.10 Add to
46080 46080 HANDLE £6.44 Add to
46141 46141 STICKER PLATE £3.89 Add to
50016 50016 SCREW £18.80 Add to
50021 50021 SCREW £1.46 Add to
50048 50048 SCREW £1.90 Add to
50078 50078 SCREW £1.69 Add to
50094 50094 SCREW £1.40 Add to
50104 50104 NUT £1.44 Add to
50107 50107 NUT £1.59 Add to
50122 50122 NUT £1.44 Add to
50131 50131 NUT £1.32 Add to
50152 50152 WASHER £1.30 Add to
50172 50172 WASHER £1.30 Add to
50173 50173 WASHER £1.34 Add to
50174 50174 WASHER £1.50 Add to
50175 50175 WASHER £1.42 Add to
50479 50479 SPLIT PIN £1.99 Add to
50501 50501 SPLIT PIN £1.75 Add to
50574 50574 ACCELERATOR CONTROL LEVER £8.74 Add to
51711 51711 RING £1.44 Add to
51712 51712 RING £1.49 Add to
57277 57277 PIN £1.61 Add to
57787 57787 CYLINDER £3.39 Add to
57788 57788 CLAMP £3.39 Add to
57904 57904 LEVER £41.00 Add to
57908 57908 LEVER £27.12 Add to
59090 59090 SCREW £1.32 Add to
7886 7886 WIRE £8.54 Add to
7887 7887 WIRE £8.54 Add to
7889 7889 WIRE £8.54 Add to
7890 7890 WIRE £14.18 Add to
