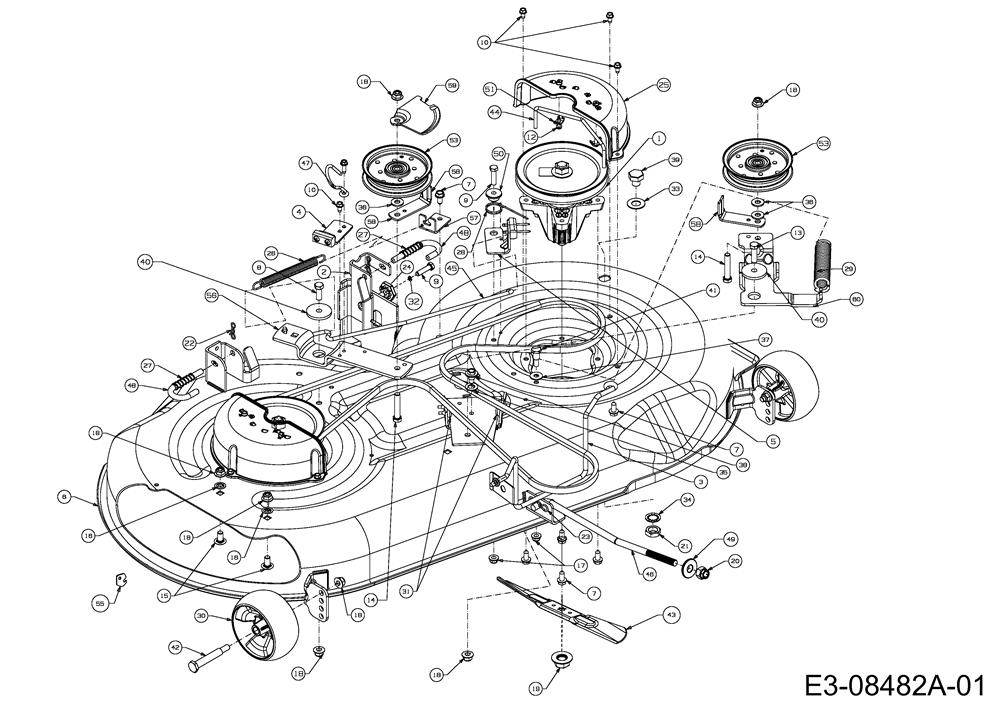

Mowing deck T (46"/117cm)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04865A SPINDLE ASSY £118.08 Add to
002 683-0254B BRKT:ASM:DECK:HNGR LH LT (OBSOLETE) N/A
003 683-04414 N/A POA
004 683-04511 BRAKE ASM DECK £36.27 Add to
005 683-04525 BRAKE ASM:YOKE:LH £52.33 Add to
006 683-04730 N/A POA
007 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £5.27 Add to
008 710-0514 HEX BOLT £3.81 Add to
009 710-0528 SCREW (DNR) £3.55 Add to
010 710-0599 HEX TT SCREW 1/4-20 £4.60 Add to
011 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.68 Add to
012 710-1003 SCR:B:#10-16:0.625:HXINDWSH:SP £3.31 Add to
013 710-3005 BOLT £3.24 Add to
014 710-3144 SCREW £3.28 Add to
015 710-3178 BOLT SHORT NECK CARR £11.46 Add to
016 712-0229 NUT PUSH £5.20 Add to
017 712-04063 FLANGED NUT £4.20 Add to
018 712-04065 NUT £4.02 Add to
019 712-05134 BLADE NUT £3.81 Add to
020 712-04243 NUT £5.00 Add to
021 712-0641 NUT £6.47 Add to
022 714-04040 PIN-COTTER £4.38 Add to
023 714-04043 COTTER PIN £4.29 Add to
024 717-04074 GEAR DECK ADJUSTMENT £11.11 Add to
025 731-06496 COVER DECK BELT 46" £28.82 Add to
026 732-0384 EXT SPRING £15.79 Add to
027 732-04652 SPR:COMP:.535 OD x 1.751 LG £8.11 Add to
028 732-04840 TORSION SPRING N/A POA
029 732-04909 N/A POA
030 734-04155 WHEEL:DECK:5.0 DIA BALL £16.47 Add to
031 735-0271A UTV TAILGATE GROMMET £9.24 Add to
032 736-0119 LOCK WASHER 5/16 £3.33 Add to
033 736-0187 FLAT WASHER £3.19 Add to
034 736-0225 WASHER (RED) £5.32 Add to
035 736-0226 WASHER:FLAT:.474 x.879 x.064 £3.39 Add to
036 736-0300 WASHER £2.81 Add to
037 736-0371 WASH:THRST:.343 X .880 X .062 £3.20 Add to
038 738-04091A SCR:SHLDR:.43 x.29:TT:5/16-18 £5.45 Add to
039 738-04146 PLUG:BOLT:M16 X 1.5 £8.94 Add to
040 738-04162C SPACER £4.64 Add to
041 738-0754 SCR:SHLD:.437 DIA x .54 £9.72 Add to
042 738-3056 SHOULDER BOLT £12.94 Add to
043 742-04290 BLADE 2 IN 1 23.25" £63.55 Add to
044 747-05011 ROD BELT KEEPER N/A POA
045 747-05052A ROD DECK BRAKE N/A POA
046 747-05141A ROD:LIFT:DECK:MEDIUM £26.75 Add to
047 747-05323 ROD BELT KEEPER N/A POA
048 747-1116 QUICK RELEASE PINS RH LONG £14.71 Add to
049 748-04069 PIVOT CUP £4.12 Add to
050 748-04272 N/A POA
051 751B221535 CLAMP-CASING £3.00 Add to
052 754-04219 V-BELT £113.84 Add to
053 756-04129C PUL:IDLR:4.25" DIA 756-04129 N/A POA
054 771-11725A TAG:DNGR:RT-99 CHUTE BLNGL N/A POA
055 783-05219 BRKT:STOP:CHUTE 50"/54" £14.15 Add to
056 783-05946 BRACKET-IDLER PIVOT £23.64 Add to
057 783-06243 N/A POA
058 783-06368A N/A POA
059 783-07183A N/A POA
060 783-07234 N/A POA
