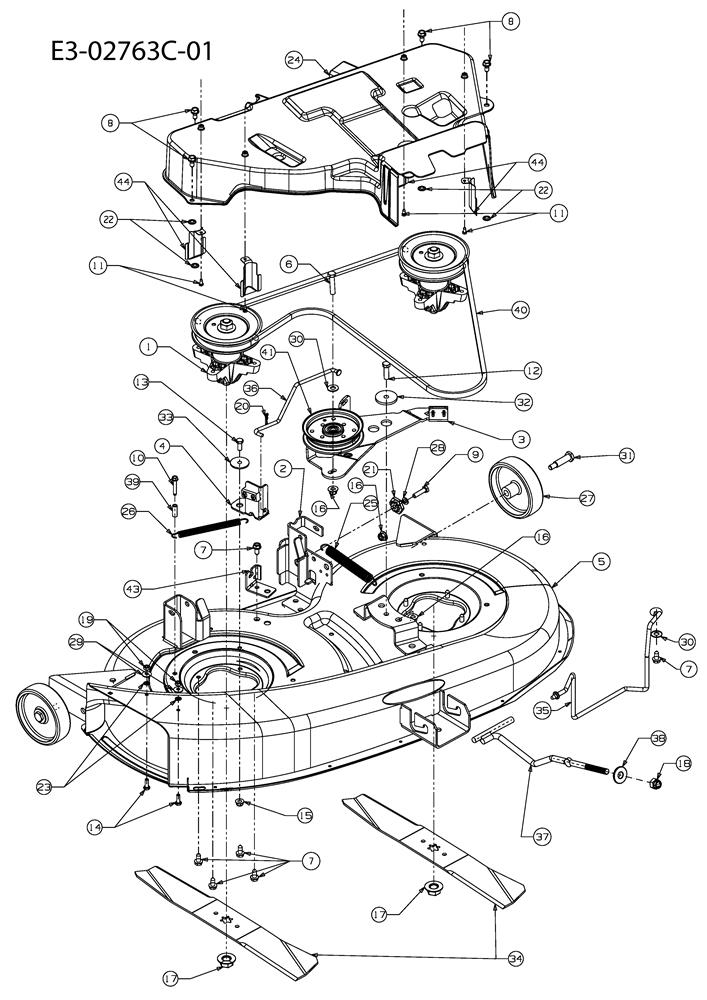

Mowing deck F (38"/96cm)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04474B	SPINDLE 5.75 INCH DIA	£132.96	Add to
002	683-04228	BRKT ASM:DECK:HNGR LH LT	N/A	POA
003	683-04138B	BRAKE ASM:DECK:42" (OBSOLETE) (OBSOLETE)	N/A
004	983-04167	BRAKE ASM:DECK 42" 683-04167	£23.95	Add to
005	683-04264C-S	DECK PAN 38 INCH BLACK	£556.92	Add to
006	710-0347	HEX SCR	£3.72	Add to
007	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add to
008	710-05045	SCR:TT:5/16-18:.750:HXINDWSH	N/A	POA
009	710-0528	SCREW (DNR)	£3.55	Add to
010	710-0778	HEX WASHER HEAD SCREW	£3.20	Add to
011	710-0919	SCREW TAPP	£3.07	Add to
012	710-3005	BOLT	£3.24	Add to
013	710-3008	HEX BOLT	£3.03	Add to
014	710-3015	SCREW HEX CAP	£3.33	Add to
015	712-04063	FLANGED NUT	£4.20	Add to
016	712-04065	NUT	£4.02	Add to
017	712-05134	BLADE NUT	£3.81	Add to
018	712-04243	NUT	£5.00	Add to
019	712-3006	NUT	£2.77	Add to
020	714-0104	PIN INTERNAL COTTER	£2.78	Add to
021	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add to
022	726-0201	SPEED NUT	£3.10	Add to
023	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add to
024	731-05699B	CVR:DECK:38" EXPORT	N/A	POA
025	732-04280B	EXT SPRING	£18.09	Add to
026	732-04287	EXT SPRING	£16.41	Add to
027	734-0973	WHEEL DECK 5in. DIA	£11.16	Add to
028	736-0119	LOCK WASHER 5/16	£3.33	Add to
029	736-0270	BELL WASHER	£3.91	Add to
030	736-0300	WASHER	£2.81	Add to
031	738-0373	AXLE BOLT	£6.84	Add to
032	738-04162C	SPACER	£4.64	Add to
033	738-04166	SPACER	£5.21	Add to
034	742-0675-637	BLADE 19.38"LG 742-0675	£45.02	Add to
035	747-04332A	ROD:KEEPR:BELT 38"	N/A	POA
036	747-04381	BRAKE ROD 38"	£18.78	Add to
037	747-04875	HGR:FRNT:38"	£55.73	Add to
038	748-04069	PIVOT CUP	£4.12	Add to
039	750-0566A	SPACER	£7.75	Add to
040	754-04062	BELT	£66.33	Add to
041	756-04129C	PUL:IDLR:4.25" DIA 756-04129	N/A	POA
043	783-04740	BRKT:CBL:DECK ENGAGE (OBSOLETE)	N/A
044	783-05497-Z	BRKT:KEEPR:BELT:ZINC PLATED	£24.51	Add to
