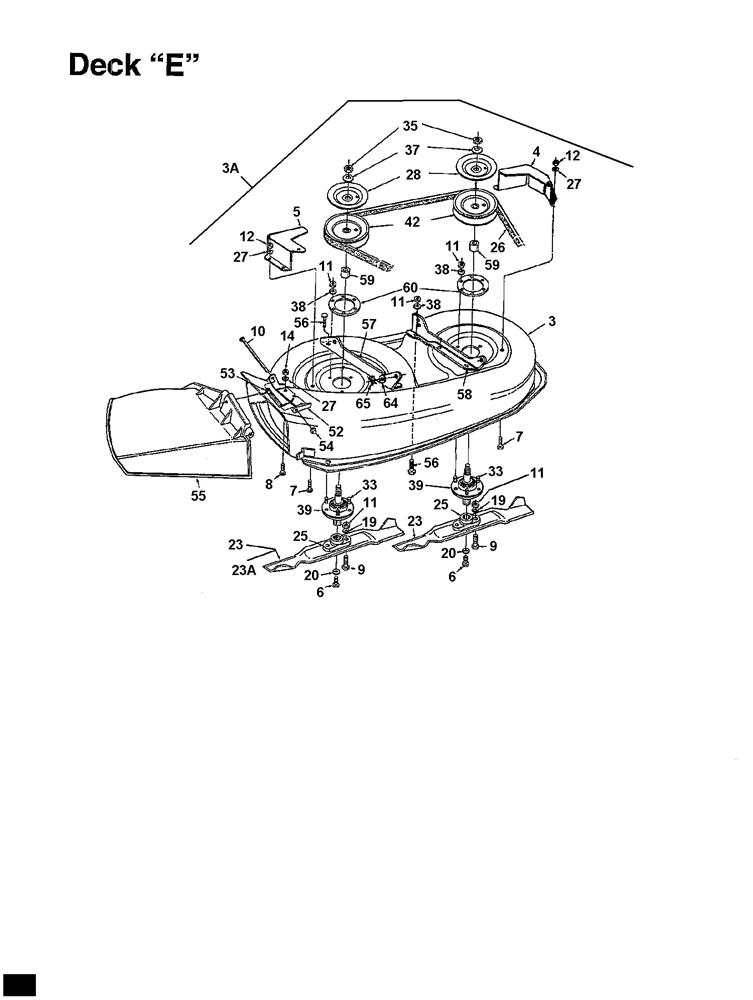

Mowing deck E (36"/91cm) side discharge

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
003 16879B637 NO LONGER AVAILABLE N/A POA
004 16607637 BELT GUARD 38 INCH DECK £20.49 Add to
005 16608A637 NO LONGER AVAILABLE N/A POA
006 710-1039 HEX BOLT 3/8-24 x 1 INCH Lg £3.62 Add to
007 710-0195 HEX BOLT £2.93 Add to
008 710-0924 TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A
009 710-0888 HEX SCR SPECIAL £8.87 Add to
010 711-0792 HINGE PIN £12.33 Add to
011 712-3057 NUT 5/16-24 £3.00 Add to
014 712-0287 NUT HEX £3.31 Add to
019 736-0119 LOCK WASHER 5/16 £3.33 Add to
020 736-0217 H.L. WASHER (RED) £4.89 Add to
023 742-0496A BLADE £29.94 Add to
025 748-0300 BLADE ADAPTOR £20.23 Add to
026 754-0364 BELT:V TYP:BX68.04 LG KEVLAR £100.26 Add to
027 736-0270 BELL WASHER £3.91 Add to
028 09322 BLADE BRAKE DISC £10.74 Add to
033 710-1012 BOLT:RIBBED:HD 5/16-24 x.87"LG £3.39 Add to
035 712-0318 NUT £3.94 Add to
037 736-0158 WASHER:LOCK:5/8:SPLT:REG £3.47 Add to
038 736-0242 BELL WASHER £3.72 Add to
039 753-05405 SPINDLE KIT £70.36 Add to
03A 913-040008-S NO LONGER AVAILABLE N/A POA
042 756-0486 PULLEY £44.50 Add to
052 703-1693A CONNECTING PLATE 703-1693 £27.59 Add to
053 732-0602A SPRING £5.20 Add to
054 726-0106 CAP SPEED NUT £3.33 Add to
055 631-0220B CHUTE ASSY £35.56 Add to
056 710-0157 HHCS:5/16-24:.75:GR5:STD £6.99 Add to
057 17572637 BRKT:DECK R.H. £34.25 Add to
058 17571637 BRKT:DECK L.H. 17571 £54.96 Add to
059 750-0456 SPACER .790 ID X .347 LG. £7.02 Add to
060 09164A637 PLATE-REINFORCEMENT £17.67 Add to
062 712-0271 NUT:SEMS:1/4-20 £3.03 Add to
063 17863-0637 NO LONGER AVAILABLE N/A POA
064 736-0185 FLAT WASHER (RED) £3.59 Add to
065 714-0104 PIN INTERNAL COTTER £2.78 Add to
23A 742-0507A BLADE-18.37IN-EXPORT 742-0507 £37.12 Add to
