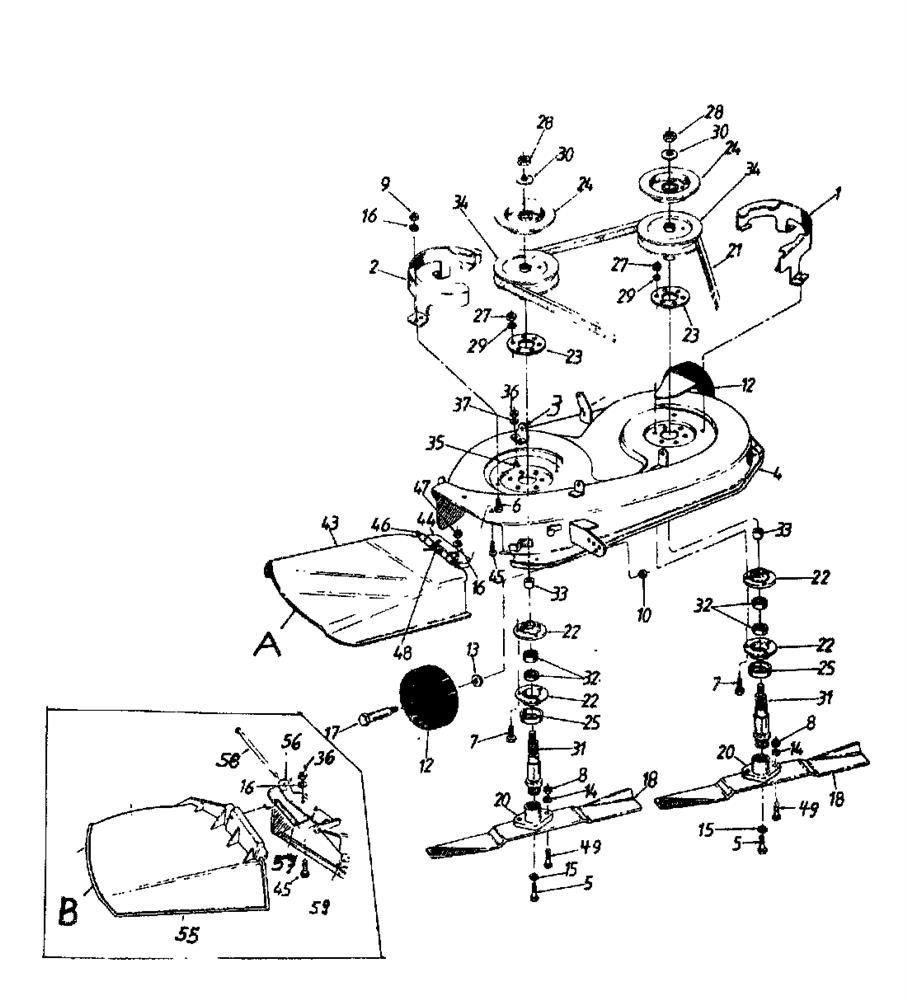

Mowing deck D (32"/81cm)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
002 16508A N/A POA
003 16666 BRACKET-DECK RR-RH £13.51 Add to
004 17101A DECK ASSEMBLY-32IN N/A POA
005 710-1039 HEX BOLT 3/8-24 x 1 INCH Lg £3.62 Add to
006 710-0195 HEX BOLT £2.93 Add to
007 710-1012 BOLT:RIBBED:HD 5/16-24 x.87"LG £3.39 Add to
008 712-3057 NUT 5/16-24 £3.00 Add to
009 712-0138 NUT £3.03 Add to
010 712-0181 HEX JAM L NUT £3.69 Add to
012 734-0973 WHEEL DECK 5in. DIA £11.16 Add to
013 736-0105 BELL WASHER £3.33 Add to
014 736-0119 LOCK WASHER 5/16 £3.33 Add to
015 736-0217 H.L. WASHER (RED) £4.89 Add to
016 736-0270 BELL WASHER £3.91 Add to
017 738-0373 AXLE BOLT £6.84 Add to
018 742-04108A BLADE 16in £26.88 Add to
020 748-0300 BLADE ADAPTOR £20.23 Add to
021 754-0145A BELT-V 5/ £76.80 Add to
022 08253B NO LONGER AVAILABLE N/A POA
022 08253B NO LONGER AVAILABLE N/A POA
023 09164A637 PLATE-REINFORCEMENT £17.67 Add to
024 09322 BLADE BRAKE DISC £10.74 Add to
025 13703 BEARING SHIELD £8.31 Add to
027 712-3057 NUT 5/16-24 £3.00 Add to
029 736-0119 LOCK WASHER 5/16 £3.33 Add to
030 736-0158 WASHER:LOCK:5/8:SPLT:REG £3.47 Add to
031 738-04219 SPDL:BLADE 738-0707A £43.10 Add to
032 741-0919B BALL BEARING £28.69 Add to
033 750-0456 SPACER .790 ID X .347 LG. £7.02 Add to
034 756-0486 PULLEY £44.50 Add to
035 710-0751 BOLT 069 £3.39 Add to
036 712-0287 NUT HEX £3.31 Add to
037 736-0329 L. WASHER £3.26 Add to
043 753-0567 NO LONGER AVAILABLE N/A POA
044 17137 BLOCK,TRANSMISSION,COVER £7.72 Add to
045 710-0924 TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A
046 711-0808 SHAFT-PIVOT £5.64 Add to
047 712-0298 NUT:JAM:1/4-20:GR2 £3.80 Add to
048 732-0542 NO LONGER AVAILABLE N/A POA
049 710-0888 HEX SCR SPECIAL £8.87 Add to
055 631-0220B CHUTE ASSY £35.56 Add to
056 703-1693A CONNECTING PLATE 703-1693 £27.59 Add to
058 711-0792 HINGE PIN £12.33 Add to
059 726-0106 CAP SPEED NUT £3.33 Add to
