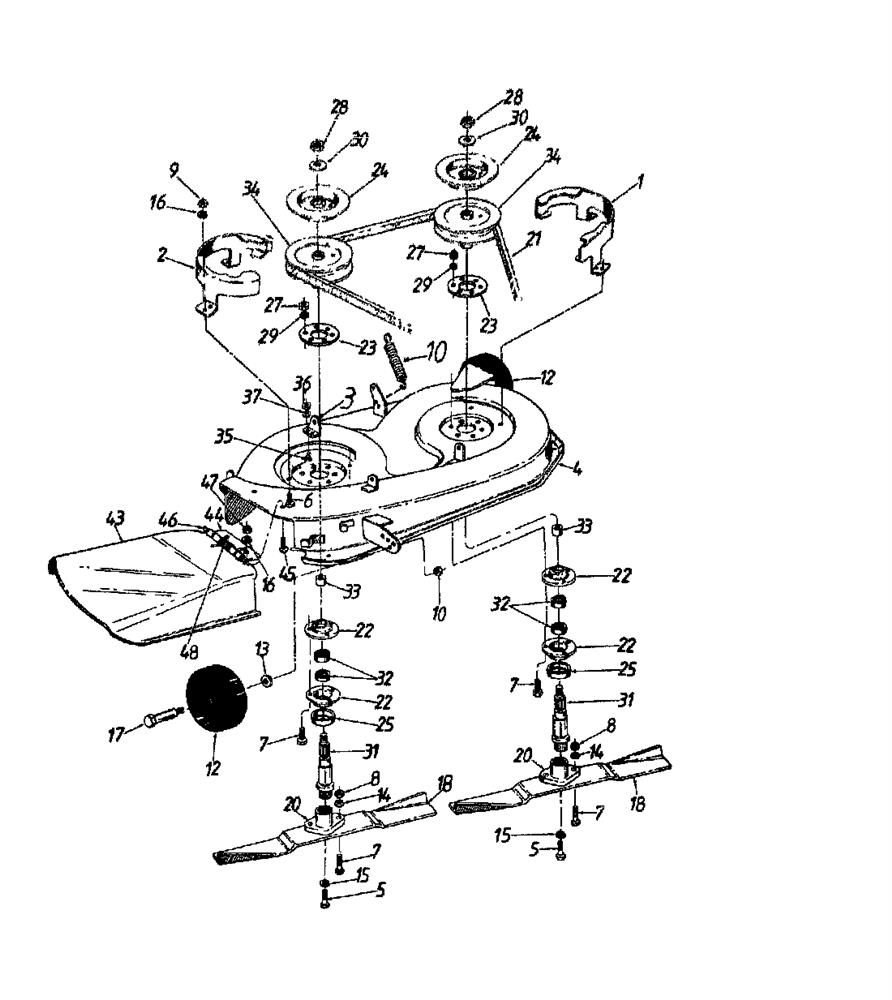

Mowing deck D (32"/81cm)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16607637	BELT GUARD 38 INCH DECK	£20.49	Add to
002	16608A637	NO LONGER AVAILABLE	N/A	POA
003	16666	BRACKET-DECK RR-RH	£13.51	Add to
004	17101A	DECK ASSEMBLY-32IN	N/A	POA
005	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add to
006	710-0888	HEX SCR SPECIAL	£8.87	Add to
007	710-0888	HEX SCR SPECIAL	£8.87	Add to
008	712-3057	NUT 5/16-24	£3.00	Add to
009	712-0138	NUT	£3.03	Add to
010	712-0181	HEX JAM L NUT	£3.69	Add to
012	734-0973	WHEEL DECK 5in. DIA	£11.16	Add to
013	736-0217	H.L. WASHER (RED)	£4.89	Add to
014	736-0119	LOCK WASHER 5/16	£3.33	Add to
015	736-0217	H.L. WASHER (RED)	£4.89	Add to
016	736-0270	BELL WASHER	£3.91	Add to
017	738-0373	AXLE BOLT	£6.84	Add to
018	742-0506A	BLADE 16.28IN HIGH LIFT	£26.40	Add to
020	748-0300	BLADE ADAPTOR	£20.23	Add to
021	754-0355	BELT-V	£45.68	Add to
022	08253B	NO LONGER AVAILABLE	N/A	POA
023	09164A637	PLATE-REINFORCEMENT	£17.67	Add to
024	09322	BLADE BRAKE DISC	£10.74	Add to
025	13703	BEARING SHIELD	£8.31	Add to
027	712-3057	NUT 5/16-24	£3.00	Add to
028	712-0318	NUT	£3.94	Add to
029	736-0119	LOCK WASHER 5/16	£3.33	Add to
030	736-0158	WASHER:LOCK:5/8:SPLT:REG	£3.47	Add to
030	736-0158	WASHER:LOCK:5/8:SPLT:REG	£3.47	Add to
031	738-04219	SPDL:BLADE 738-0707A	£43.10	Add to
032	741-0919B	BALL BEARING	£28.69	Add to
033	750-0456	SPACER .790 ID X .347 LG.	£7.02	Add to
034	756-0486	PULLEY	£44.50	Add to
035	710-0751	BOLT 069	£3.39	Add to
036	712-0287	NUT HEX	£3.31	Add to
037	736-0329	L. WASHER	£3.26	Add to
043	753-0567	NO LONGER AVAILABLE	N/A	POA
044	17137	BLOCK,TRANSMISSION,COVER	£7.72	Add to
045	710-0924	TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
046	711-0808	SHAFT-PIVOT	£5.64	Add to
047	712-0298	NUT:JAM:1/4-20:GR2	£3.80	Add to
048	732-0542	NO LONGER AVAILABLE	N/A	POA
