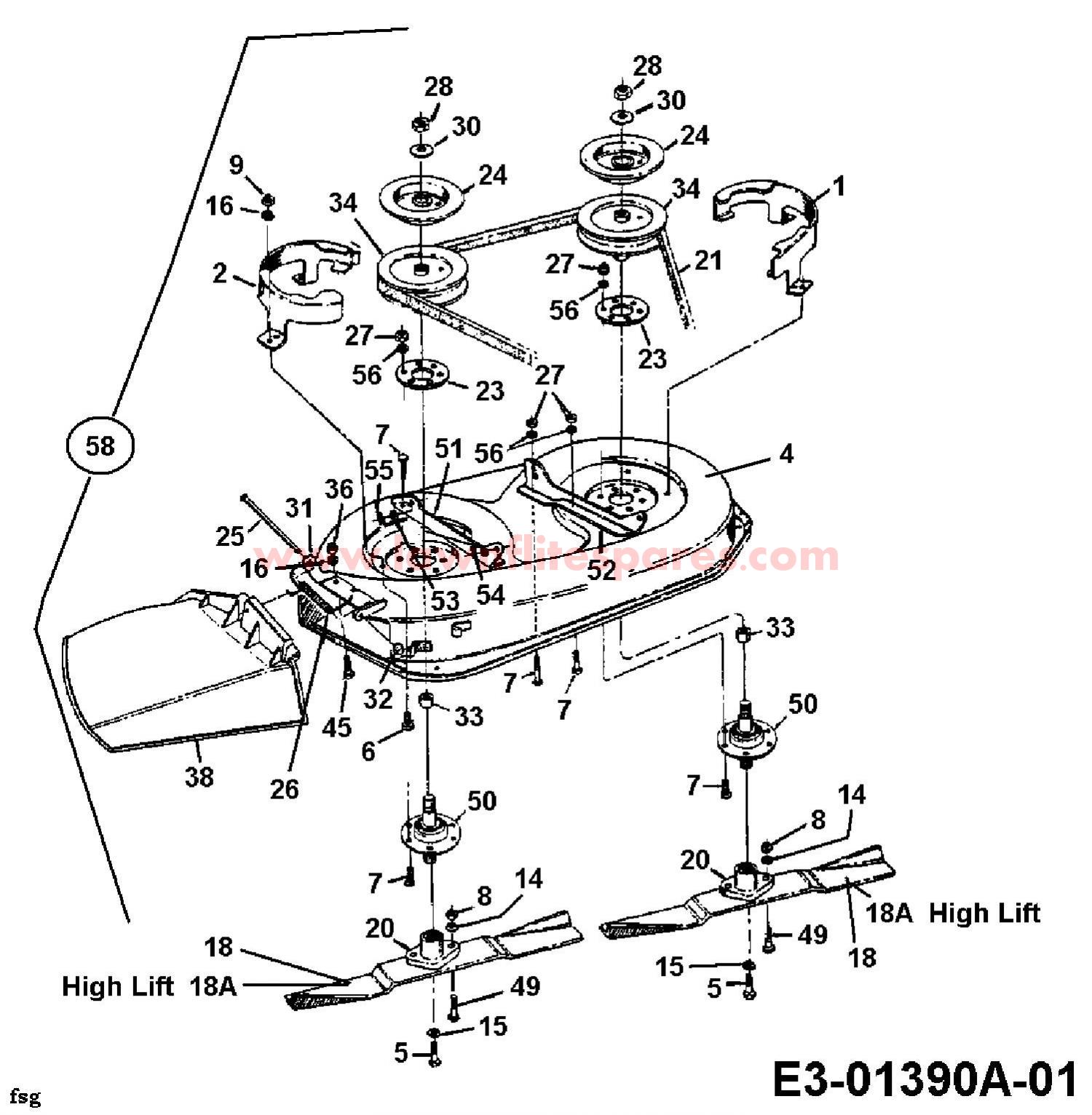

MOWING DECK D(32"/81cm)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	683-0113637	COVER ASSY:BELT LH 32" 683-0113	£37.86	Add to
002	683-0112637	NO LONGER AVAILABLE	N/A	POA
004	17750A637	NO LONGER AVAILABLE	N/A	POA
005	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add to
006	710-0195	HEX BOLT	£2.93	Add to
007	710-0157	HHCS:5/16-24:.75:GR5:STD	£6.99	Add to
008	712-3057	NUT 5/16-24	£3.00	Add to
009	712-0138	NUT	£3.03	Add to
014	736-0119	LOCK WASHER 5/16	£3.33	Add to
015	736-0217	H.L. WASHER (RED)	£4.89	Add to
016	736-0270	BELL WASHER	£3.91	Add to
018	742-04108A	BLADE 16in	£26.88	Add to
020	748-0300	BLADE ADAPTOR	£20.23	Add to
021	754-0363	BELT	£90.39	Add to
023	09164A637	PLATE-REINFORCEMENT	£17.67	Add to
024	09322	BLADE BRAKE DISC	£10.74	Add to
025	711-0792	HINGE PIN	£12.33	Add to
026	732-0602A	SPRING	£5.20	Add to
027	712-3057	NUT 5/16-24	£3.00	Add to
028	712-0318	NUT	£3.94	Add to
030	736-0158	WASHER:LOCK:5/8:SPLT:REG	£3.47	Add to
031	703-1693A	CONNECTING PLATE 703-1693	£27.59	Add to
032	726-0106	CAP SPEED NUT	£3.33	Add to
033	750-0456	SPACER .790 ID X .347 LG.	£7.02	Add to
034	756-0486	PULLEY	£44.50	Add to
036	712-0287	NUT HEX	£3.31	Add to
038	631-0220B	CHUTE ASSY	£35.56	Add to
045	710-0751	BOLT 069	£3.39	Add to
049	710-0888	HEX SCR SPECIAL	£8.87	Add to
050	753-05405	SPINDLE KIT	£70.36	Add to
051	783-0276	NO LONGER AVAILABLE	N/A	POA
052	783-0275637	NO LONGER AVAILABLE	N/A	POA
053	736-0185	FLAT WASHER (RED)	£3.59	Add to
054	714-0104	PIN INTERNAL COTTER	£2.78	Add to
055	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
056	736-0242	BELL WASHER	£3.72	Add to
057	732-0564	SPRING, GOVERNOR (OBSOLETE) (OBSOLETE)	N/A
058	813-040070-S	NO LONGER AVAILABLE	N/A	POA
18A	742-0506A	BLADE 16.28IN HIGH LIFT	£26.40	Add to
