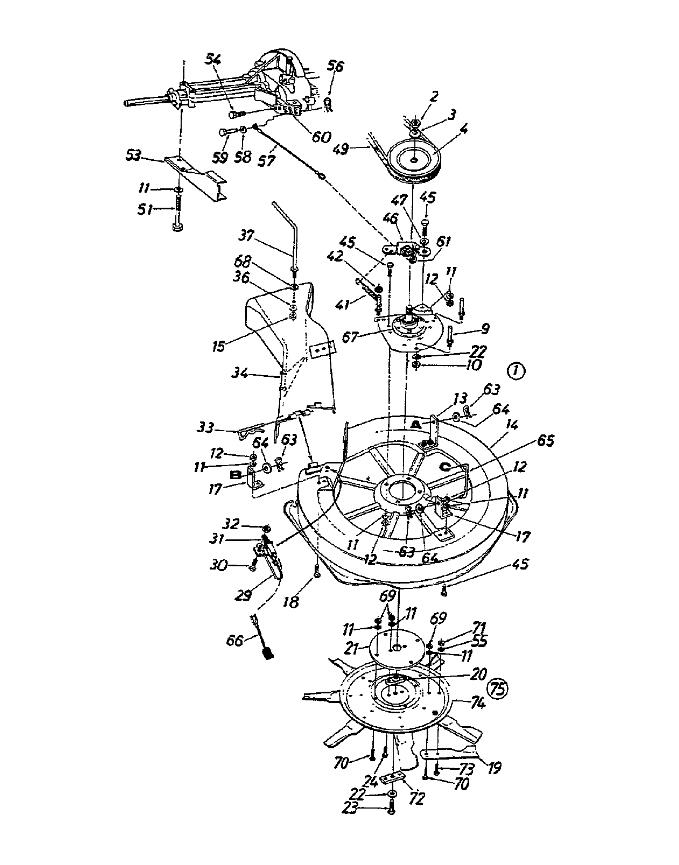

Mowing deck C (30"/76cm)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	17611T	RUBBER PADDLE 43673	N/A	POA
002	712-0318	NUT	£3.94	Add to
003	736-0317	BELLE WASHER	£8.58	Add to
004	756-0430	PULLEY	£92.17	Add to
009	711-0640	NO LONGER AVAILABLE	N/A	POA
010	712-0342	NUT-HEX CENTER AF-43082	£7.77	Add to
011	736-0119	LOCK WASHER 5/16	£3.33	Add to
012	712-3010	NUT 5/16 x 18	£2.77	Add to
013	16706	HANGER BRKT. 3.25"	£11.84	Add to
014	17610	30" S.D. DECK ASS'Y.	£219.68	Add to
015	736-0217	H.L. WASHER (RED)	£4.89	Add to
018	710-0924	TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
019	742-0256A	NO LONGER AVAILABLE	N/A	POA
020	748-0300	BLADE ADAPTOR	£20.23	Add to
022	736-0169	L. WASHER	£2.89	Add to
023	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add to
024	710-0888	HEX SCR SPECIAL	£8.87	Add to
026	712-3057	NUT 5/16-24	£3.00	Add to
030	710-0289	HHCS:1/4-20:.50:GR2:STD	£20.02	Add to
032	712-0287	NUT HEX	£3.31	Add to
033	711-0792	HINGE PIN	£12.33	Add to
034	631-0220B	CHUTE ASSY	£35.56	Add to
041	732-0482	EXTENSION SPRING .5" O.D. X 3.2" LG.	£6.14	Add to
042	726-0201	SPEED NUT	£3.10	Add to
045	710-3008	HEX BOLT	£3.03	Add to
046	16053	NO LONGER AVAILABLE	N/A	POA
047	748-0234	SHOULDER SPACER	£5.43	Add to
049	754-0264	V-BELT	£35.09	Add to
051	710-0176	HHCS:5/16-18:2.75:GR5:STD	£6.11	Add to
053	15625B	NO LONGER AVAILABLE	N/A	POA
054	732-0602A	SPRING	£5.20	Add to
055	736-0329	L. WASHER	£3.26	Add to
056	714-0104	PIN INTERNAL COTTER	£2.78	Add to
057	727-0296	BRAKE CABLE 9.75" LG.	£12.75	Add to
058	736-0142	WASHER:FLAT:.281 x.50 x.063	£3.59	Add to
059	711-0701	CLEVIS PIN	£4.89	Add to
060	15626B	NO LONGER AVAILABLE	N/A	POA
061	726-0106	CAP SPEED NUT	£3.33	Add to
063	714-0145	R CLIP	£2.78	Add to
064	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add to
065	747-0428	NO LONGER AVAILABLE	N/A	POA
067	717-0916	NO LONGER AVAILABLE	N/A	POA
068	15621A	BRKT:WELD:30"DECK	£6.15	Add to
069	703-1693A	CONNECTING PLATE 703-1693	£27.59	Add to
070	736-0270	BELL WASHER	£3.91	Add to
