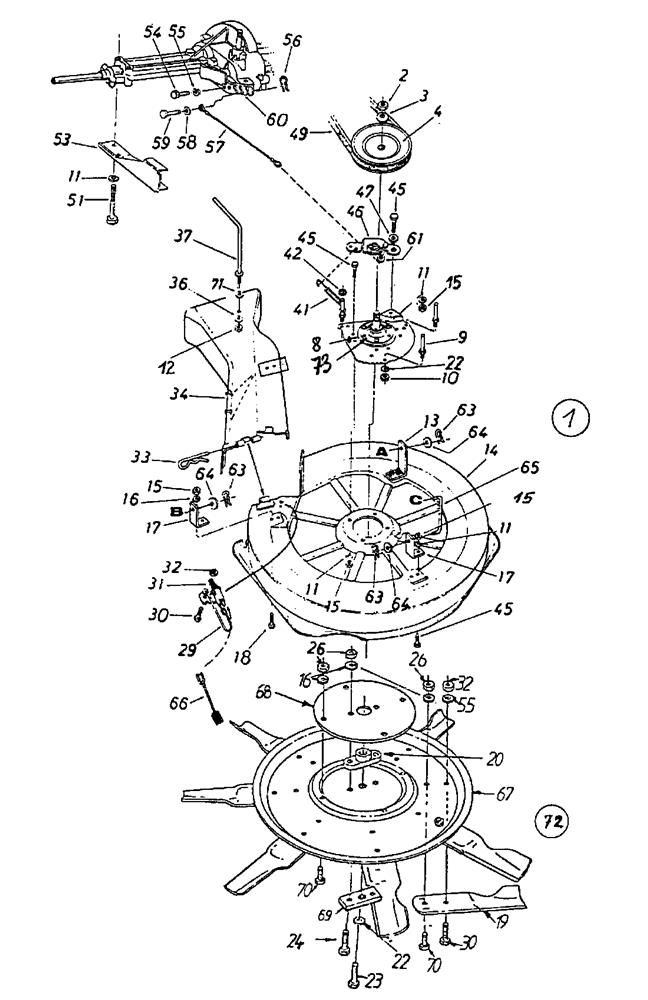

Mowing deck C (30"/76cm)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16761	NO LONGER AVAILABLE	N/A	POA
002	712-0318	NUT	£3.94	Add to
003	736-0317	BELLE WASHER	£8.58	Add to
004	756-0430	PULLEY	£92.17	Add to
008	16981	PLATE-BRG	£26.15	Add to
009	711-0640	NO LONGER AVAILABLE	N/A	POA
010	712-0342	NUT-HEX CENTER AF-43082	£7.77	Add to
011	736-0119	LOCK WASHER 5/16	£3.33	Add to
012	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add to
013	16706	HANGER BRKT. 3.25"	£11.84	Add to
014	15906	NO LONGER AVAILABLE	N/A	POA
015	712-3010	NUT 5/16 x 18	£2.77	Add to
016	736-0119	LOCK WASHER 5/16	£3.33	Add to
017	16705	NO LONGER AVAILABLE	N/A	POA
018	710-0323	SCREW	£3.70	Add to
019	742-0495B	BLADE	£18.32	Add to
020	748-0300	BLADE ADAPTOR	£20.23	Add to
022	736-0217	H.L. WASHER (RED)	£4.89	Add to
023	710-0879	BOLT	£17.27	Add to
024	710-0672	HHCS:5/16-24:1.25:GR5:STD	£3.51	Add to
026	712-0237	HEX CENTRE NUT	£11.18	Add to
029	725-0765	NO LONGER AVAILABLE	N/A	POA
030	710-0195	HEX BOLT	£2.93	Add to
031	725-0269	NO LONGER AVAILABLE	N/A	POA
032	712-0117	NUT:CTR LOCK:1/4-28:GR A	£3.19	Add to
033	714-0174	PIN-COTTER 092.15.519 (OBSOLETE)	N/A
034	16094A	NO LONGER AVAILABLE	N/A	POA
036	736-0271	WASHER	£3.16	Add to
037	747-0474	NO LONGER AVAILABLE	N/A	POA
041	732-0157	NO LONGER AVAILABLE	N/A	POA
042	726-0201	SPEED NUT	£3.10	Add to
045	710-3008	HEX BOLT	£3.03	Add to
046	16053	NO LONGER AVAILABLE	N/A	POA
047	748-0234	SHOULDER SPACER	£5.43	Add to
049	754-0264	V-BELT	£35.09	Add to
051	710-0176	HHCS:5/16-18:2.75:GR5:STD	£6.11	Add to
053	15625B	NO LONGER AVAILABLE	N/A	POA
054	710-0751	BOLT 069	£3.39	Add to
055	736-0329	L. WASHER	£3.26	Add to
056	714-0104	PIN INTERNAL COTTER	£2.78	Add to
057	727-0296	BRAKE CABLE 9.75" LG.	£12.75	Add to
058	736-0142	WASHER:FLAT:.281 x.50 x.063	£3.59	Add to
059	711-0701	CLEVIS PIN	£4.89	Add to
060	15626B	NO LONGER AVAILABLE	N/A	POA
061	726-0106	CAP SPEED NUT	£3.33	Add to
063	714-0145	R CLIP	£2.78	Add to
064	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add to
065	747-0428	NO LONGER AVAILABLE	N/A	POA
066	725-1037	WIRE LEAD	£9.58	Add to
067	742-0318	NO LONGER AVAILABLE	N/A	POA
068	742-0494-0637	NO LONGER AVAILABLE	N/A	POA
069	753-0478	NO LONGER AVAILABLE	N/A	POA
070	710-0237	HEX SCREW	£5.55	Add to
071	736-0231	WASHER FLAT	£3.58	Add to
072	801-6765	BLADE ASSY-8 TIP 3 16765	£384.59	Add to
073	717-0916	NO LONGER AVAILABLE	N/A	POA
