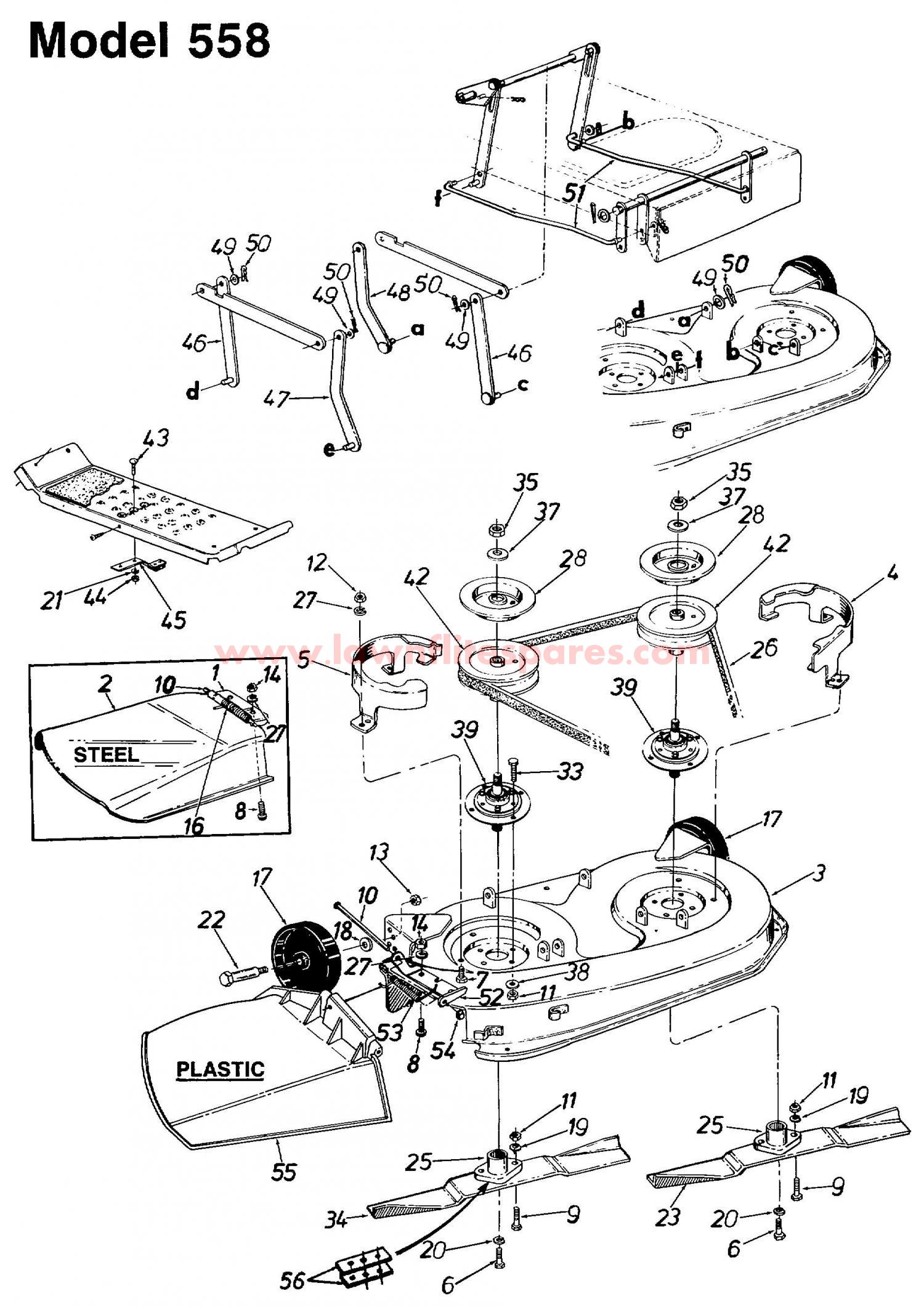

38" "DEEP" MOWING DECK -- MODEL 558

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16521	NO LONGER AVAILABLE	N/A	POA
002	753-0567	NO LONGER AVAILABLE	N/A	POA
003	753-04376	NO LONGER AVAILABLE	N/A	POA
003	17177	NO LONGER AVAILABLE	N/A	POA
004	16607637	BELT GUARD 38 INCH DECK	£20.49	Add to
005	16608A637	NO LONGER AVAILABLE	N/A	POA
006	710-0151	HHCS:3/8-24:2.00:GR5:SPEC	£4.84	Add to
007	710-0195	HEX BOLT	£2.93	Add to
008	710-0924	TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
009	710-0624	HEX. HEAD SCREW 5/16-24X1.50"	£10.65	Add to
010	711-0792	HINGE PIN	£12.33	Add to
011	712-3057	NUT 5/16-24	£3.00	Add to
012	712-0138	NUT	£3.03	Add to
013	712-0181	HEX JAM L NUT	£3.69	Add to
014	712-0298	NUT:JAM:1/4-20:GR2	£3.80	Add to
016	732-0542	NO LONGER AVAILABLE	N/A	POA
017	734-0973	WHEEL DECK 5in. DIA	£11.16	Add to
018	736-0105	BELL WASHER	£3.33	Add to
019	736-0119	LOCK WASHER 5/16	£3.33	Add to
020	736-0217	H.L. WASHER (RED)	£4.89	Add to
021	736-0329	L. WASHER	£3.26	Add to
022	738-0373	AXLE BOLT	£6.84	Add to
023	742-0473A	BLADE 19.88 INCH	£29.41	Add to
025	748-0300	BLADE ADAPTOR	£20.23	Add to
026	754-0329A	V-BELT	£88.01	Add to
027	736-0270	BELL WASHER	£3.91	Add to
028	9322	BRAKE DISC (OBSOLETE)	N/A
033	710-1013	RND HD RIB NECK BOLT 5/16-24 X	£3.49	Add to
034	742-0473A	BLADE 19.88 INCH	£29.41	Add to
035	712-0318	NUT	£3.94	Add to
037	736-0158	WASHER:LOCK:5/8:SPLT:REG	£3.47	Add to
038	736-0119	LOCK WASHER 5/16	£3.33	Add to
039	753-05319	KIT SPDL 38 & 42 INCH	£87.85	Add to
042	756-0486	PULLEY	£44.50	Add to
043	710-0134	BOLT	£3.03	Add to
044	712-0287	NUT HEX	£3.31	Add to
045	761-0168D	BRACKET ASSY-BRAKE 761-0168B	£32.66	Add to
046	14804A637	DECK LINK HANGER	£16.94	Add to
047	14800A637	LINK DECK HANGER ASSY	£25.89	Add to
048	15925	NO LONGER AVAILABLE	N/A	POA
049	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add to
050	714-0101	PIN:COT:INT:.08 X 1.42	£3.58	Add to
051	711-0790A	NO LONGER AVAILABLE	N/A	POA
052	703-1693A	CONNECTING PLATE 703-1693	£27.59	Add to
053	732-0602A	SPRING	£5.20	Add to
054	726-0106	CAP SPEED NUT	£3.33	Add to
055	631-0220B	CHUTE ASSY	£35.56	Add to
056	753-0478	NO LONGER AVAILABLE	N/A	POA
