Front adjustable brush 82 cm

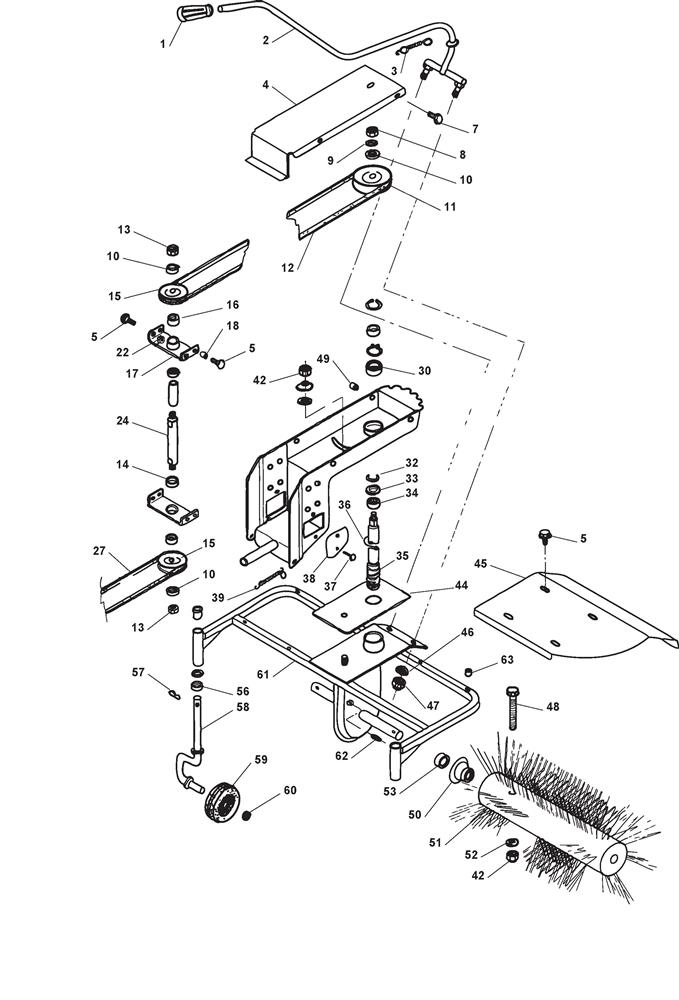

Front adjustable brush 82 cm assembly details for Stiga SILEX 95 H 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118800145/0KNOB£6.27 Add to
002118800146/0HANDLE£90.98 Add to
003118800015/0SPRING£5.19 Add to
004118800147/0GUARD£105.21 Add to
005112800815/0SCREW TE FL M8 x 16£2.06 Add to
0079959-0616-16SCREW M6SF M6 X 16£2.06 Add to
008112295300/0HEXAGON NUT M12£2.06 Add to
009112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0101483-2085-01WASHER (OBSOLETE) (OBSOLETE)N/A
0111483-2325-01BELT PULLEY£14.82 Add to
012118800148/0BELT£21.12 Add to
013112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
014118800050/0BEARINGN/A POA
0151483-2326-01ENGINE PULLEY£24.26 Add to
016118800051/0SPACER D.17 x 30 H25.5£9.41 Add to
017118800058/0UPPER SUPPORT£15.00 Add to
0181483-2108-01SPACER£2.18 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
024118800150/0SHAFT£34.35 Add to
027118800024/0BELT Z 23 10 X 575£10.23 Add to
0301483-2192-01BALL BEARING£34.35 Add to
0321483-2068-01CIRCLIP£3.64 Add to
0331483-2000-01SPACER£2.06 Add to
0341483-2072-01NEEDLE BEARING£8.44 Add to
0351483-2081-01ENDLESS SCREW£98.48 Add to
036118800151/0O RING£2.06 Add to
0379847-8016-16SCREW RXS B10 x 16£2.32 Add to
038118800290/0PROTECTION COVER WHITE£13.69 Add to
039118800025/0SPRING£14.05 Add to
042112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
044118800282/0NYLON PLATE£39.80 Add to
045118800152/0RIGHT GUARD£110.66 Add to
045118800153/0LEFT GUARD£112.02 Add to
0469699-0121-02WASHER£2.06 Add to
0479747-1231-02NUT£2.06 Add to
048112794985/0SCREW M10 x 120£3.69 Add to
0491483-2190-01NUT£2.06 Add to
0501483-2010-01DUST COVER£6.39 Add to
051118800154/0BRUSH£231.93 Add to
052112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0531483-2070-01OIL SEAL£8.32 Add to
056118800053/0SPACER D.17X30 H8£5.12 Add to
0579598-0002-02SPRING PIN 2.5mm L=47mm£2.06 Add to
058118800155/0RIGHT SUPPORT£47.97 Add to
058118800156/0LEFT SUPPORT£47.97 Add to
059118800157/0WHEEL£11.43 Add to
0601483-2195-01LOCK WASHER£3.83 Add to
061118800158/0MAIN FRAME£790.64 Add to
0621483-2075-01CAP£4.10 Add to
0631483-2191-01NUT£2.06 Add to
