GUARDS

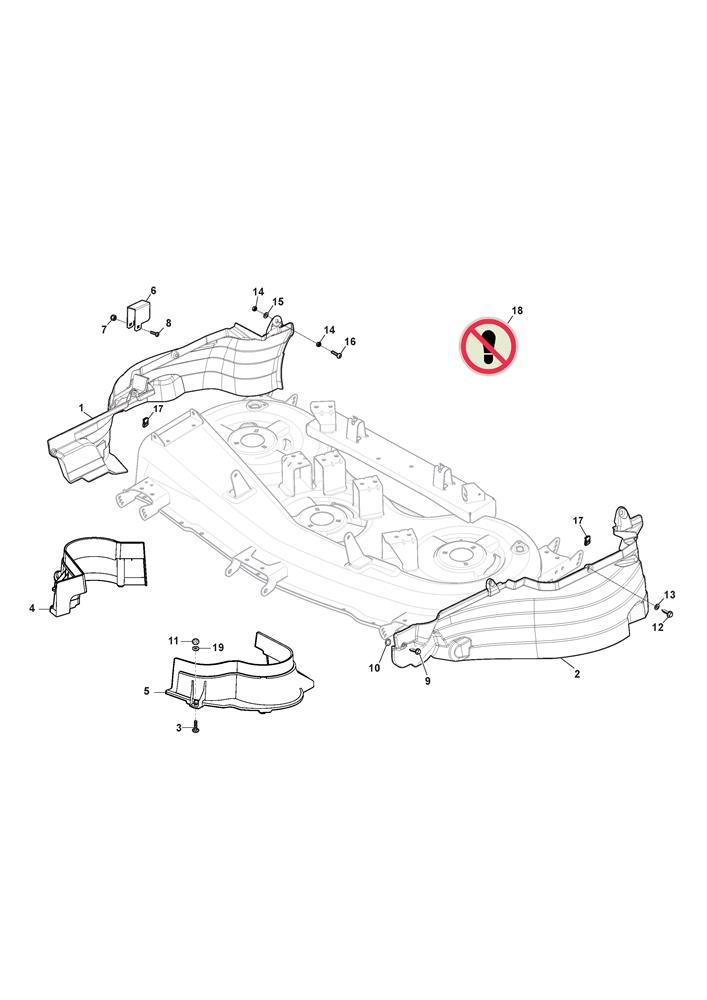

GUARDS assembly details for Stiga Tornado Pro 9121 XWSY (2T3040381/ST1) 2021 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	325060189/1	R/H EXTERNAL BELT COVER	£150.18	Add to
002	325060190/1	L/H EXTERNAL BELT COVER	£150.18	Add to
003	112815210/0	SCREW M6 x 20	£2.06	Add to
004	325060181/1	R/H INTERNAL BELT COVER	£27.27	Add to
005	325060182/1	L/H INTERNAL BELT COVER FROM SN 431074	£26.18	Add to
006	325774267/0	BRACKET	£7.57	Add to
007	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
008	112815255/0	CUP SQUARE BOLT M6 x 20	£1.79	Add to
009	125943014/0	FLANGED SCREW CARTER MOA FIXING	£9.03	Add to
010	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
011	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
012	112791213/1	SCREW M6 X 18	£1.74	Add to
013	325160039/0	SPACER	£2.06	Add to
014	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
015	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
016	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
017	1134-4176-01	CLIP	£5.19	Add to
018	114368431/0	SAFETY DECAL-DO NOT STEP	£6.42	Add to
019	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
