OIL PAN

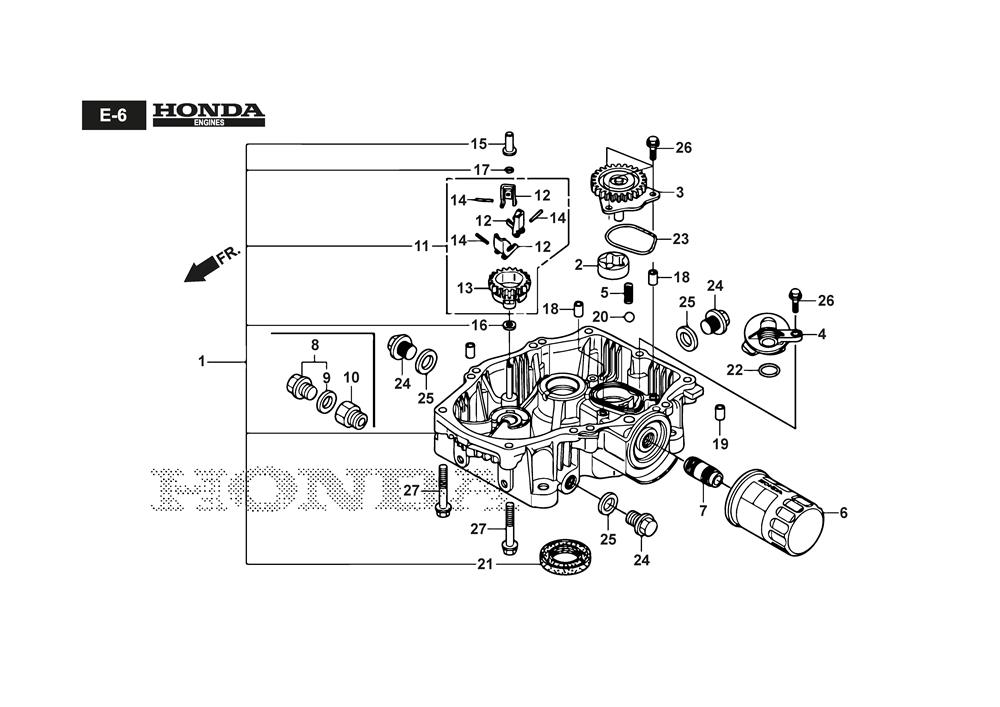

OIL PAN assembly details for Stiga Estate 7122 HWSY (2T1310381/ST1PSA) 2021 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118551716/0	PAN ASSY., OIL	£1,172.20	Add to
002	118551887/0	ROTOR, OIL PUMP OUTER	£41.16	Add to
003	118551888/0	GEAR COMP., OIL PUMP	£211.50	Add to
004	118551889/0	STRAINER COMP., OIL	£68.42	Add to
005	118551890/0	SPRING, RELIEF VALVE	£4.52	Add to
006	118551895/0	CARTRIDGE, OIL FILTER (MAHLE TENNEX)	£43.99	Add to
007	118551900/0	HOLDER, OIL FILTER	£12.14	Add to
008	118551902/0	CAP ASSY., DRAIN	£12.82	Add to
010	118551915/0	ADAPTER, OIL DRAIN EXTENSION	£32.99	Add to
011	118551967/0	GOVERNOR ASSY.	£42.53	Add to
017	118552244/0	GOVERNOR HOLDER CLIP	£1.74	Add to
020	118552247/0	BALL, STEEL, #15 (15/32)	£4.52	Add to
021	118552253/0	OIL SEAL, 38X58X9	£16.50	Add to
022	118552261/0	O-RING, 14.8X2.4	£4.10	Add to
023	118552265/0	O-RING, OIL PUMP	£8.19	Add to
024	118552272/0	BOLT, DRAIN PLUG, 20MM	£7.63	Add to
025	118552274/0	WASHER, DRAIN PLUG, 20MM	£2.87	Add to
