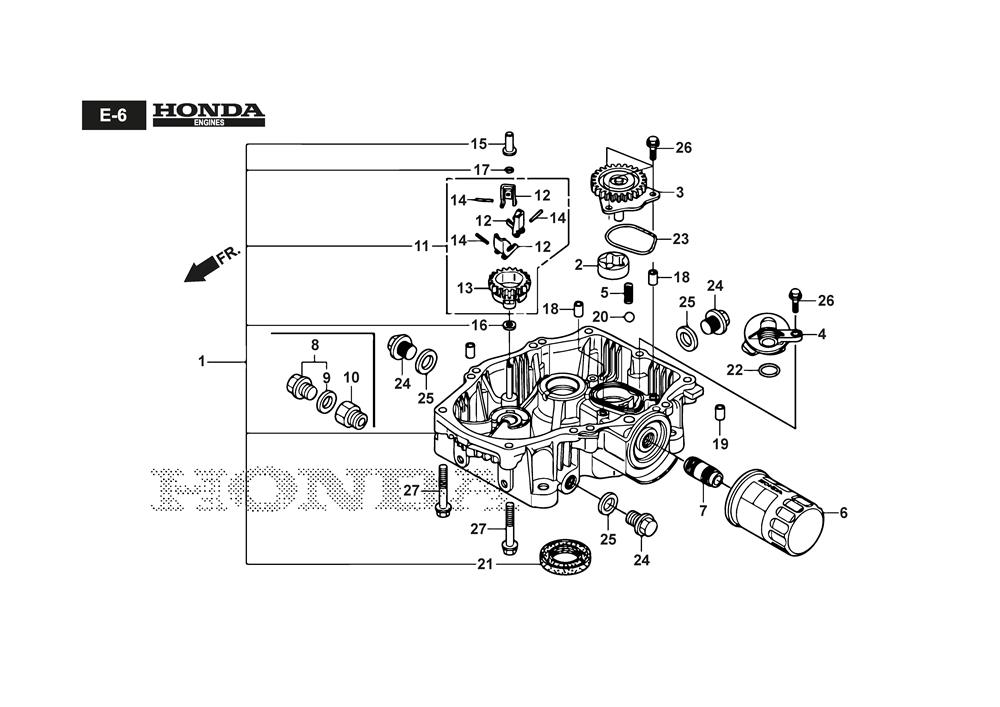

OIL PAN assembly details for Stiga Estate 7102 HWSY (2T0980381/ST1PSA) 2021 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref | No | Description | Price | |
---|
001 | 118551716/0 | PAN ASSY., OIL | £1,172.20 | Add to |
002 | 118551887/0 | ROTOR, OIL PUMP OUTER | £41.16 | Add to |
003 | 118551888/0 | GEAR COMP., OIL PUMP | £211.50 | Add to |
004 | 118551889/0 | STRAINER COMP., OIL | £68.42 | Add to |
005 | 118551890/0 | SPRING, RELIEF VALVE | £4.52 | Add to |
006 | 118551895/0 | CARTRIDGE, OIL FILTER (MAHLE TENNEX) | £43.99 | Add to |
007 | 118551900/0 | HOLDER, OIL FILTER | £12.14 | Add to |
008 | 118551902/0 | CAP ASSY., DRAIN | £12.82 | Add to |
010 | 118551915/0 | ADAPTER, OIL DRAIN EXTENSION | £32.99 | Add to |
011 | 118551967/0 | GOVERNOR ASSY. | £42.53 | Add to |
017 | 118552244/0 | GOVERNOR HOLDER CLIP | £1.74 | Add to |
020 | 118552247/0 | BALL, STEEL, #15 (15/32) | £4.52 | Add to |
021 | 118552253/0 | OIL SEAL, 38X58X9 | £16.50 | Add to |
022 | 118552261/0 | O-RING, 14.8X2.4 | £4.10 | Add to |
023 | 118552265/0 | O-RING, OIL PUMP | £8.19 | Add to |
024 | 118552272/0 | BOLT, DRAIN PLUG, 20MM | £7.63 | Add to |
025 | 118552274/0 | WASHER, DRAIN PLUG, 20MM | £2.87 | Add to |
