CRANKCASE

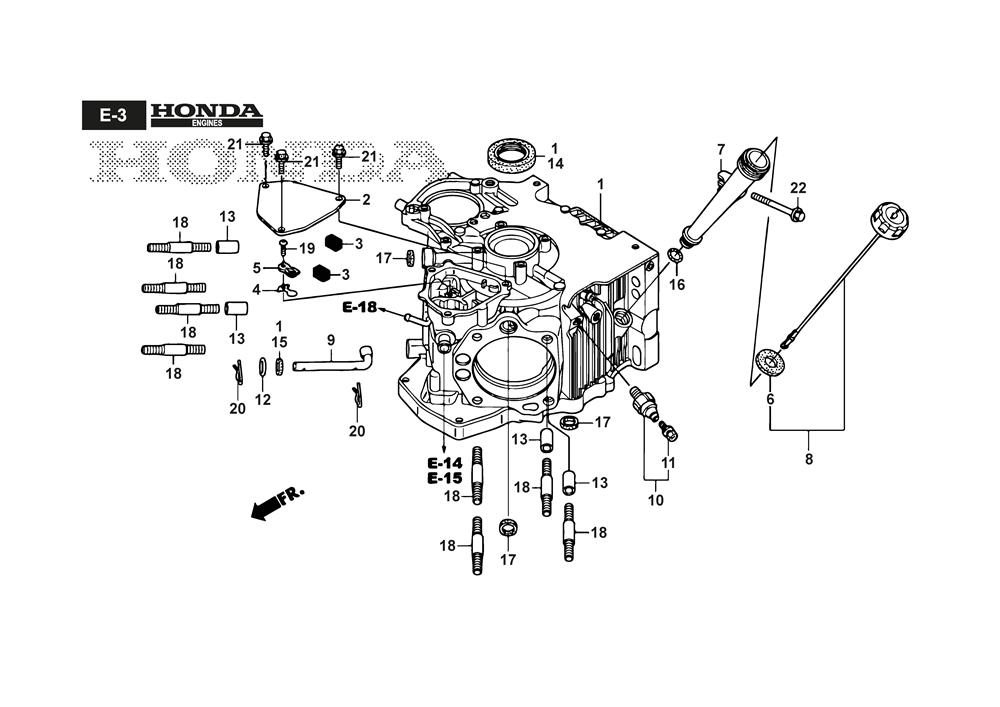

CRANKCASE assembly details for Stiga Estate 7102 HWSY (2T0980381/ST1PSA) 2021 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118551711/0	CRANKCASE ASSY.	£2,051.13	Add to
002	118551749/0	COVER, BREATHER	£22.63	Add to
003	118551752/0	FILTER, BREATHER	£12.00	Add to
004	118551903/0	VALVE, OIL OUTLET	£5.19	Add to
005	118551904/0	PLATE, STOPPER	£3.69	Add to
007	118551911/0	EXTENSION, OIL FILLER	£39.80	Add to
008	118551916/0	GAUGE ASSY., OIL LEVEL	£38.44	Add to
009	118551975/0	SHAFT, GOVERNOR ARM	£58.87	Add to
010	118552206/0	SWITCH, OIL PRESSURE	£75.23	Add to
014	118552251/0	OIL SEAL, 38X58X9	£16.50	Add to
016	118552261/0	O-RING, 14.8X2.4	£4.10	Add to
017	118552269/0	PACKING, OIL PASS	£7.92	Add to
