ENGINE - HONDA GXV 530

ENGINE - HONDA GXV 530 assembly details for Stiga Estate 5102 HW (2T1710381/ST1) 2021 model

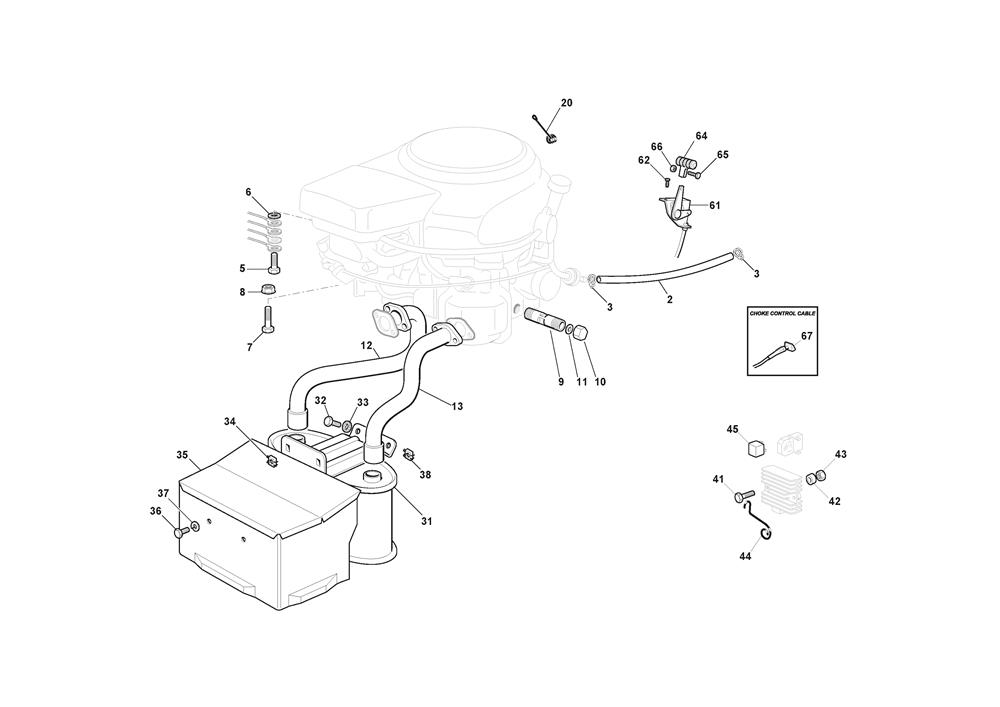

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	325869057/0	FUEL TUBE L=1000	£20.72	Add to
003	118375051/1	CABLE CLAMP B&S [GREEN]	£1.91	Add to
005	112735599/0	SELF-TAPPING SCREW M6 x 16	£2.06	Add to
006	112540260/0	INNER TOOTHED WASHER M8	£2.06	Add to
007	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
008	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
009	125598050/0	OIL DISCHARGE TUBE	£8.04	Add to
010	118737849/0	OIL DRAIN PLUG	£2.47	Add to
011	118401001/1	OIL DRAIN SEAL	£2.06	Add to
012	118738285/0	RIGHT EXHAUST CONNECTION PIPE	N/A	POA
013	118738286/0	LEFT EXHAUSTION CONNECTION PIPE	N/A	POA
020	127430562/1	SPRING	£2.06	Add to
031	182750003/0	MUFFLER ASSEMBLY	£265.02	Add to
032	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
033	112540260/0	INNER TOOTHED WASHER M8	£2.06	Add to
034	112360425/0	SQUARE NUT M8	£2.18	Add to
035	382598005/2	MUFFLER PROTECTION GUARD	£34.35	Add to
036	112792611/0	SCREW TE M8x16 UNI 5739 ACC.8.8	£2.06	Add to
037	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
041	112815221/0	SCREW M6 x 35	£1.79	Add to
042	122170950/0	SPACER	£1.79	Add to
043	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
044	127430561/0	SPRING	£2.87	Add to
045	133567000/0	RELAY	£13.91	Add to
061	182000201/2	THROTTLE CABLE	£26.69	Add to
062	125943012/0	FLANGED SCREW M4 x 10 WZ	£2.06	Add to
064	325592000/1	LEVER KNOB	£2.32	Add to
065	112726388/0	CROSS-HEAD SCREW M4X12	£2.06	Add to
066	112290800/0	HEXAGON NUT M4 UNI 5588 ACC.6S	£2.06	Add to
067	125090001/2	CHOKE CONTROL CABLE	£19.62	Add to
