Transmission Unit. Hydro-Gear T2-BDBE-2X1A-16X1

Transmission Unit. Hydro-Gear T2-BDBE-2X1A-16X1 assembly details for Stiga Combi 2072 H (2T0210481/ST1) 2021 model

Parts list

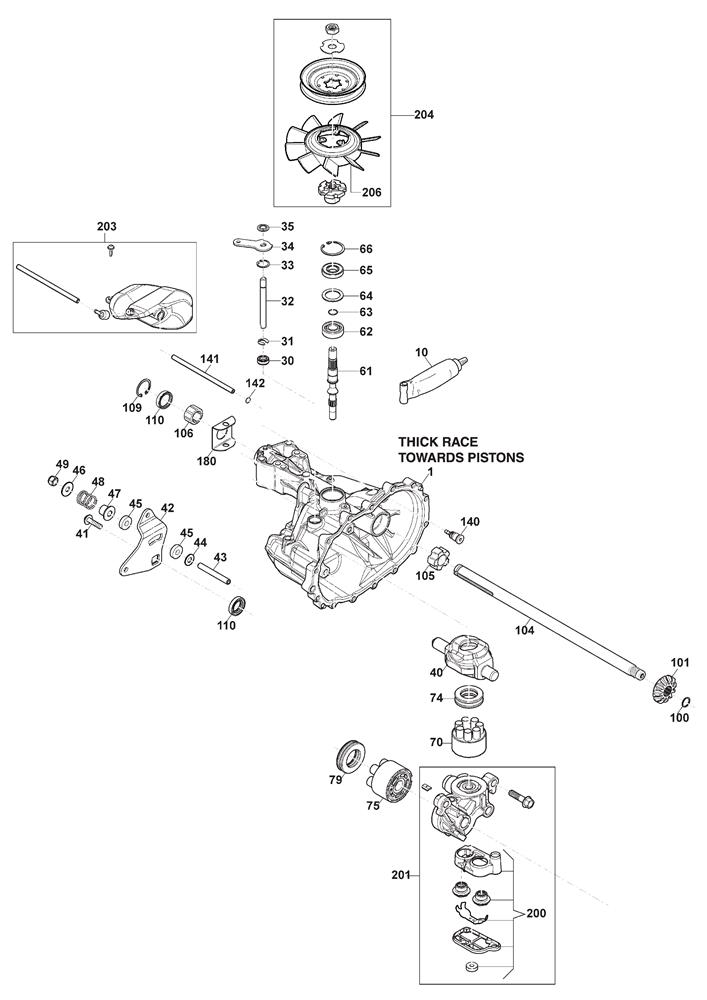

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
030118870079/0SEAL 0.375 X 0.75 X 0.25£10.09 Add to
040118870090/0SWASH PLATE£102.48 Add to
045118870087/0PLASTIC WASHER 0.32 x 0.80 x 0.21£4.52 Add to
047118870118/0FLANGED SPACER£4.23 Add to
048118870073/0COMPRESSION SPRING£10.36 Add to
049118870074/0HEX LOCK NUT 5/16-24 UNF (NYLON INSERT)£6.55 Add to
061118870092/0INPUT DRIVE SHAFT£91.58 Add to
070118870125/0PUMP BLOCK ASSEMBLY£132.33 Add to
074118870093/0THRUST BEARING 27 x 47 x 14£41.16 Add to
0751139-2063-01CYLINDER BLOCK£232.10 Add to
0791139-2021-01THRUST BEARING£43.89 Add to
100118870072/0RETAINING RING£6.27 Add to
104118870115/0AXLE SHAFT 0.75 x 16.48 (L/H KEY)£128.77 Add to
106118870085/0AXLE BUSH£8.44 Add to
1101139-2204-01SEAL£8.87 Add to
180118870112/0SPRING PLATE£13.47 Add to
203118870122/0EXPANSION TANK KIT£65.69 Add to
2041139-2202-01HYDRO FAN KIT£142.15 Add to
206118870131/0HYDRO GEAR FAN [AJBF/BDBE-2X3C/2X1A-16X1£28.90 Add to
