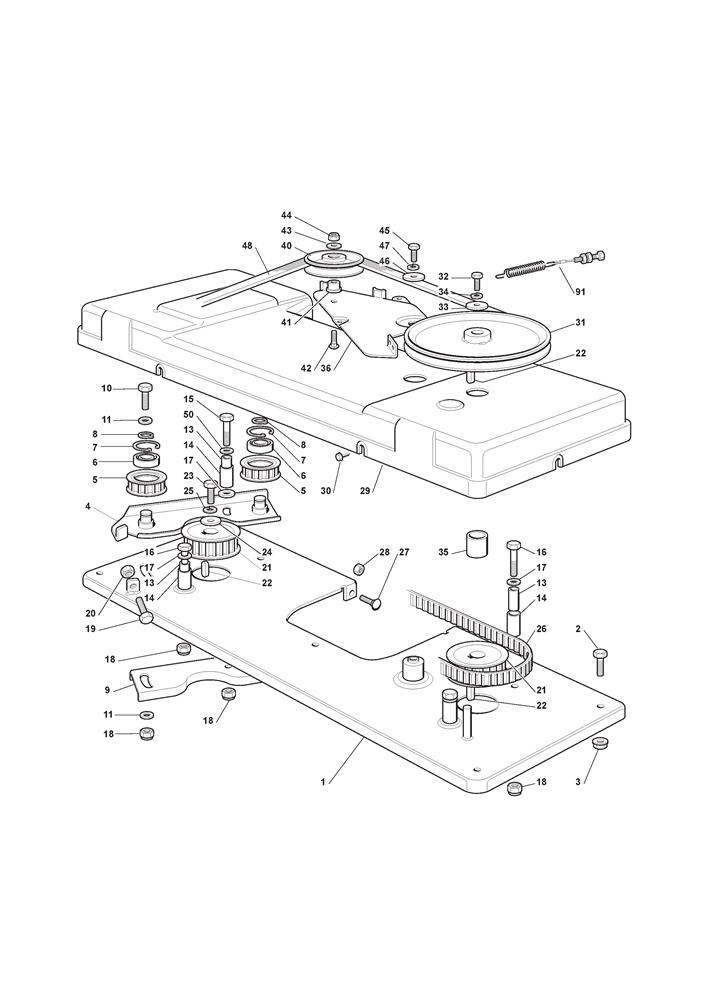

BLADES ENGAGEMENT assembly details for Stiga Estate 7102 HWSY (2T0980381/ST1P) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382547029/3TRANSMISSION PLATE£108.31 Add to
002112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
003112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
004382785084/3PULLEY SUPPORT PLATE£27.27 Add to
005125601559/1TOOTHED PULLEY£42.53 Add to
006119216048/0BEARING£18.27 Add to
007112610800/0CIRCLIP D=35£2.06 Add to
008112609200/0CIRCLIP D=15£2.06 Add to
009325650037/1REINFORCEMENT PLATE£8.73 Add to
010112691700/0SCREW M8 x 55£1.91 Add to
011112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
013125160003/2SPACER£2.18 Add to
014125038000/0BUSH£2.06 Add to
015112691700/0SCREW M8 x 55£1.91 Add to
016112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
017112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
018112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
019112793900/0HEX-HEAD SCREW M8 x 60£2.06 Add to
020112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
021125601560/0PULLEY£56.15 Add to
022112139480/0KEY 6x6x20 UNI6604-A 6.8£2.06 Add to
023112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
024125670007/0FIXING WASHER£2.06 Add to
025112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
026135065605/0LCTOOTHED BELT [102cm]£83.52 Add to
027112815200/0SCREW TTDQ M6X16£2.06 Add to
028112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
029325060128/0BELT TRANSMISSION CASE£30.77 Add to
030112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
031125601550/0BLADE SHAFT PULLEY£45.26 Add to
032112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
033125670007/0FIXING WASHER£2.06 Add to
034112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
035125160002/1SPACER£3.96 Add to
036325318115/2BLADE BRAKE LEVER£26.18 Add to
040325601599/0PULLEY (STEEL) (BEARING HOLE D 15)£19.62 Add to
041125160079/0SPACER£4.35 Add to
042112818900/0SCREW TTDQ M8 x 35£1.97 Add to
043112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
044112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
0459959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
046112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
047112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
048135062827/0BLADE DRIVE BELT OPTIBELT£47.97 Add to
050122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
091182004608/0BLADE ENGAGE CABLE£23.58 Add to
