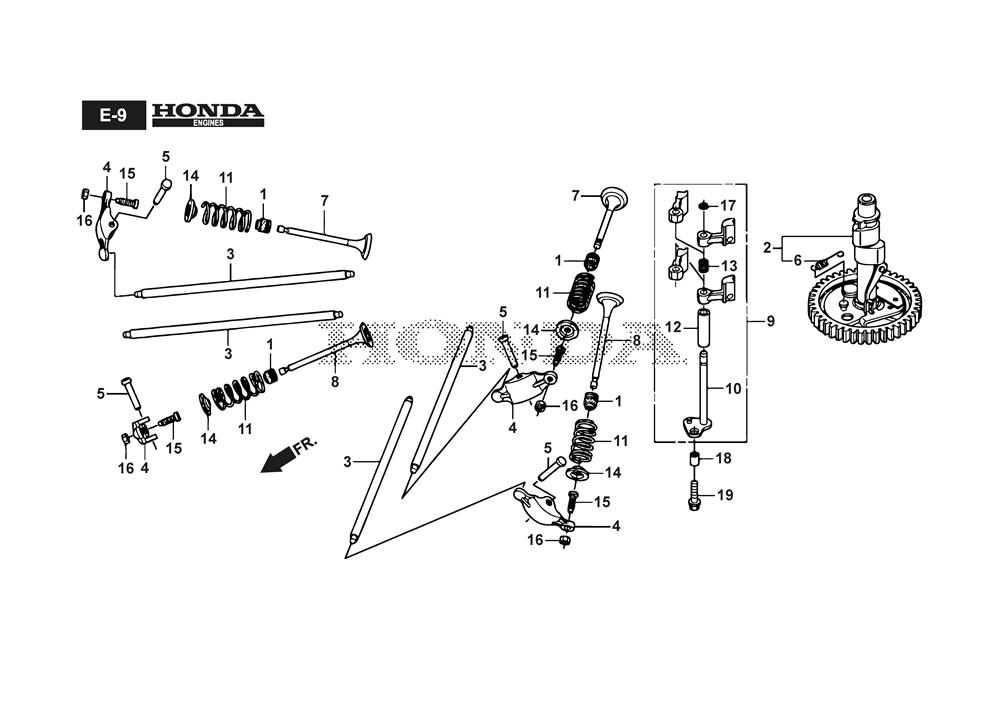

CAM SHAFT assembly details for Stiga Estate 7102 HWSY (2T0980381/ST1) 2020 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref | No | Description | Price | |
|---|
| 001 | 118551735/0 | SEAL, VALVE STEM | £13.64 | Add to |
| 002 | 118551811/0 | CAMSHAFT ASSY. | £647.56 | Add to |
| 003 | 118551828/0 | ROD COMP., PUSH | £31.63 | Add to |
| 004 | 118551834/0 | ARM, VALVE ROCKER | £32.99 | Add to |
| 005 | 118551844/0 | SHAFT, ROCKER ARM | £5.46 | Add to |
| 006 | 118551847/0 | SPRING, WEIGHT RETURN | £4.52 | Add to |
| 007 | 118551851/0 | VALVE, IN. | £42.53 | Add to |
| 008 | 118551858/0 | VALVE, EX. | £64.32 | Add to |
| 009 | 118551865/0 | LIFTER ASSY., VALVE | £184.24 | Add to |
| 011 | 118551872/0 | SPRING, VALVE | £12.00 | Add to |
| 014 | 118551879/0 | RETAINER, IN. VALVE SPRING | £12.96 | Add to |
| 015 | 118552221/0 | SCREW, TAPPET ADJUSTING | £6.14 | Add to |
| 016 | 118552231/0 | TAPPET ADJUSTING NUT | £3.24 | Add to |
| 017 | 118552244/0 | GOVERNOR HOLDER CLIP | £1.74 | Add to |
