BODY

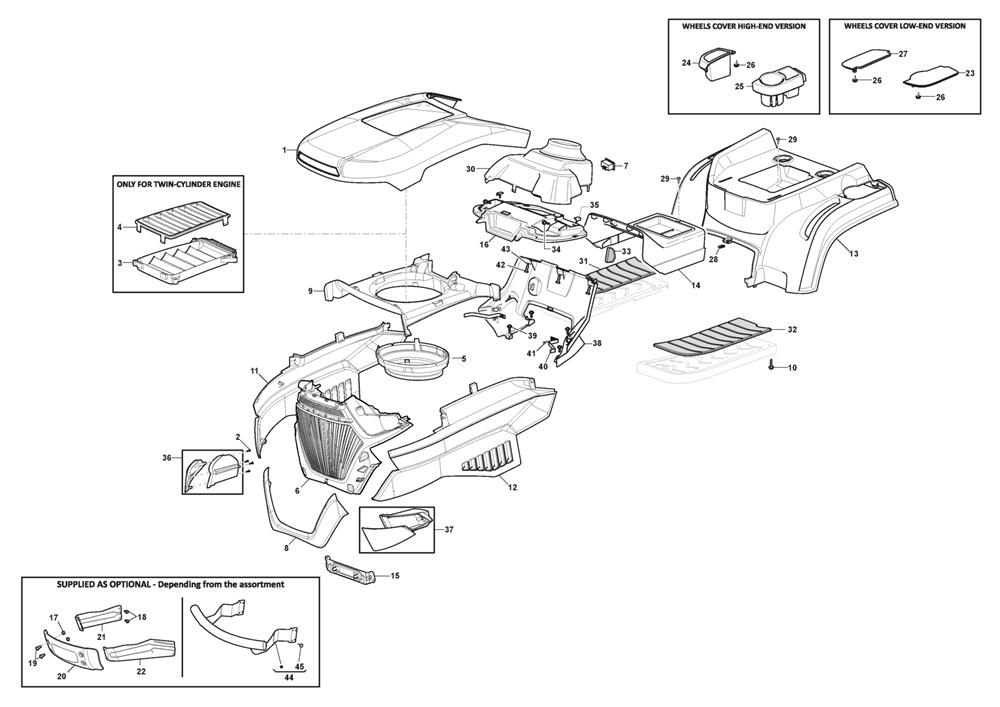

BODY assembly details for Stiga Estate 3084 H (2T2110281/ST1) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325077005/0ENGINE HOOD SDST [YELLOW]£124.82 Add to
002112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
003325263313/0AIR INTAKE GRILL [YELLOW] (ONLY FOR TWIN CYLINDER ENGINE)£18.68 Add to
004325263314/0UPP. BONNET AIR INTAKE GRILL YELLOW SDST (ONLY FOR TWIN CYLINDER ENGINE)£17.80 Add to
005325108108/0LONG AIR CONVEYOR SDST BLACK£12.00 Add to
006325076997/0FRONT HOOD [BLACK]£62.97 Add to
0079400-0384-01HOUR METER£94.31 Add to
008325076998/0LOWER FRONT HOOD [GREY]£16.22 Add to
009325108109/0STIGA YELLOW BONNET AIR CONVEYOR SDST£37.64 Add to
010112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
011325207283/0R/H SIDE BONNET COVER [GREY]£60.24 Add to
012325207284/0L/H SIDE BONNET COVER [GREY]£60.24 Add to
013325110438/1WHEELS COVER [YELLOW]£113.39 Add to
014325110463/0CENTRAL COVER [GREY]£34.35 Add to
015325785551/0HOOD SUPPORT£11.36 Add to
016325120259/2DASHBOARD [BLACK]£35.71 Add to
017112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
018112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
019112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
020382263501/0FRONT GUARD£33.62 Add to
021382785255/0RIGHT BUMPER SUPPORT£29.14 Add to
022382785257/0LEFT BUMPER SUPPORT£29.14 Add to
023325207197/0L/H WHEEL COVER [BLACK]£4.11 Add to
024325207198/0R/H WHEEL COVER HOLDER [BLACK]£9.23 Add to
025325207199/0L/H WHEEL COVER HOLDER [BLACK]£11.27 Add to
026112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
027325207196/0R/H WHEEL COVER [BLACK]£3.96 Add to
028112437506/0DOUBLE PLATE£2.87 Add to
029125943010/0FLANGED SCREW£2.06 Add to
030325120288/0HIGH DASHBOARD MP/SD [BLACK] W/O HOLE£22.52 Add to
031325110384/0RIGHT FOOTBOARD COVER [BLACK] (AS OPTIONAL)£15.59 Add to
032325110385/0LEFT FOOTBOARD COVER [BLACK] (AS OPTIONAL)£15.59 Add to
033325207191/0CENTRAL COVER CLOSE CAP (NOT NEEDED FOR HYDRO MODEL)£2.06 Add to
034125943010/0FLANGED SCREW£2.06 Add to
035325260003/0DASHBOARD GROMMET£2.06 Add to
036382185514/0RH LED LIGHT SD/MP ST ASSY (FOR LED VERSION)£170.61 Add to
037382185515/0LH LED LIGHT SD/MP ST ASSY (FOR LED VERSION)£170.61 Add to
038325785298/0DASHBOARD SUPPORT [BLACK]£29.30 Add to
039125943010/0FLANGED SCREW£2.06 Add to
040325270325/0DASHBOARD SUPPORT GUIDE£5.19 Add to
041112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
042112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
043112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
044382869037/0SILENC.PROTECT PIPE ASSY SD 98£38.44 Add to
045112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
046114367495/1EMBLEM DECAL STIGA 3D 120 x 25mm£9.96 Add to
