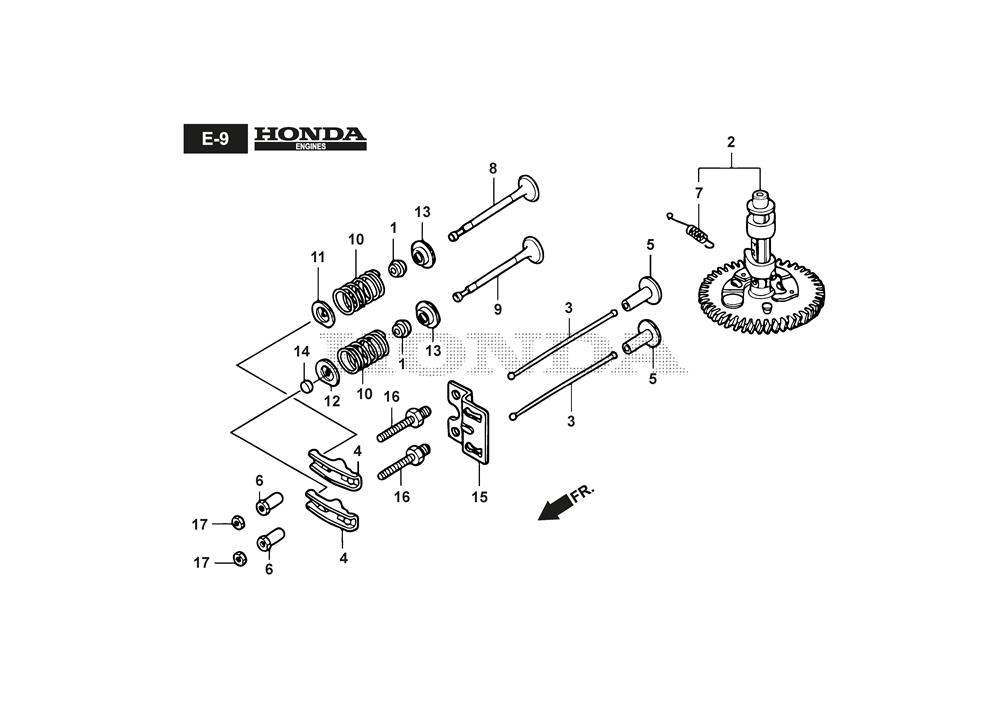

CAMSHAFT assembly details for Stiga Estate 3384 H (2T2100381/14) 2019 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref | No | Description | Price | |
|---|
| 001 | 118551739/0 | SEAL, VALVE STEM | £13.77 | Add to |
| 002 | 118551815/0 | CAMSHAFT ASSY. | £361.39 | Add to |
| 003 | 118551827/0 | ROD, PUSH | £18.00 | Add to |
| 004 | 118551836/0 | ARM, VALVE ROCKER | £23.58 | Add to |
| 005 | 118551841/0 | LIFTER, VALVE | £34.35 | Add to |
| 006 | 118551842/0 | PIVOT, ROCKER ARM | £7.92 | Add to |
| 008 | 118551853/0 | VALVE, IN. | £41.16 | Add to |
| 009 | 118551860/0 | VALVE, EX. | £68.42 | Add to |
| 010 | 118551871/0 | SPRING, VALVE | £9.14 | Add to |
| 011 | 118551878/0 | RETAINER, IN. VALVE SPRING | £4.10 | Add to |
| 012 | 118551880/0 | RETAINER, EX. VALVE SPRING | £4.10 | Add to |
| 013 | 118551881/0 | SEAT, VALVE SPRING | £7.10 | Add to |
| 014 | 118551882/0 | ROTATOR, VALVE | £9.00 | Add to |
| 015 | 118551884/0 | GUIDE, PUSH ROD | £10.91 | Add to |
| 016 | 118552223/0 | BOLT, PIVOT, 8MM | £13.64 | Add to |
| 017 | 118552232/0 | NUT, PIVOT ADJUSTING | £3.69 | Add to |
