Body

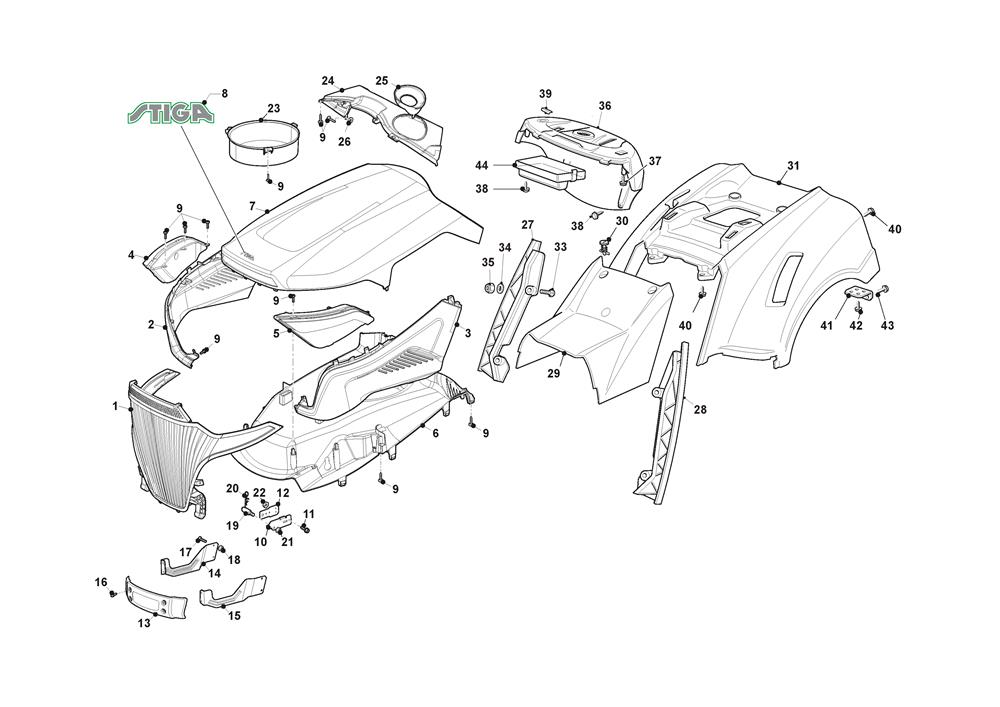

Body assembly details for Stiga Estate 5102 HW (2T1720681/ST1) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076981/0FRONT BONNET [BLACK] MTR SD£76.36 Add to
002325207270/0R/H BONNET SIDE MTR SD£62.98 Add to
003325207271/0L/H BONNET SIDE MTR SD£58.87 Add to
004382185508/0R/H LED HEADLIGHT£170.61 Add to
005382185509/0L/H LED HEADLIGHT£170.61 Add to
006325108100/1AIR INTAKE [YELLOW] TNS BONNET£75.23 Add to
007325076978/0UPPER BONNET [YELLOW] TNS£116.96 Add to
008114367495/1EMBLEM DECAL STIGA 3D 120 x 25mm£9.96 Add to
009112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
010325774689/1FULCRUM BRACKET£7.10 Add to
011112815200/0SCREW TTDQ M6X16£2.06 Add to
012325774691/2FULCRUM BRACKET£5.05 Add to
013382263503/0FRONT BUMPER GUARD£28.90 Add to
014382785259/0RIGHT SUPPORT BUMPER£27.27 Add to
015382785261/0LEFT SUPPORT BUMPER£27.27 Add to
016127943051/0SCREW D=6.3 x 13£2.18 Add to
017112800815/0SCREW TE FL M8 x 16£2.06 Add to
018112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
019125510068/0BONNET FULCRUM PIN£2.06 Add to
020124487998/0R CLIP D=2£2.06 Add to
021112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
022112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
023325108103/0AIR INTAKE CONVEYOR L=40 [BLACK]£9.23 Add to
024325598056/1EXTERNAL DASHBOARD C/W HOLE£27.79 Add to
025325207272/0FUEL TANK COVER£7.63 Add to
026112523030/0WASHER M5 5.5 x 20 x 1.6£2.06 Add to
027325599019/0R/H DASHBOARD SUPPORT£7.10 Add to
028325599020/0L/H DASHBOARD SUPPORT£7.36 Add to
029325110365/0CENTRAL COVER [YELLOW]£38.44 Add to
030125580020/2SPRING TENSIONED SCREW£7.23 Add to
031325110323/0WHEELS COVER [YELLOW]£103.85 Add to
033112815210/0SCREW M6 x 20£2.06 Add to
034112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
035112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
036325120273/0DASHBOARD [GREY]£37.08 Add to
037112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
038112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
039125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
040112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
041325755041/0ANGLE BRACKET£2.06 Add to
042112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
043112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
044325600074/0PC BOARD COVER£9.07 Add to
