Lubrication-Equipment

Lubrication-Equipment assembly details for Stiga Estate 3398 H (2T2610681/16) 2018 model

Parts list

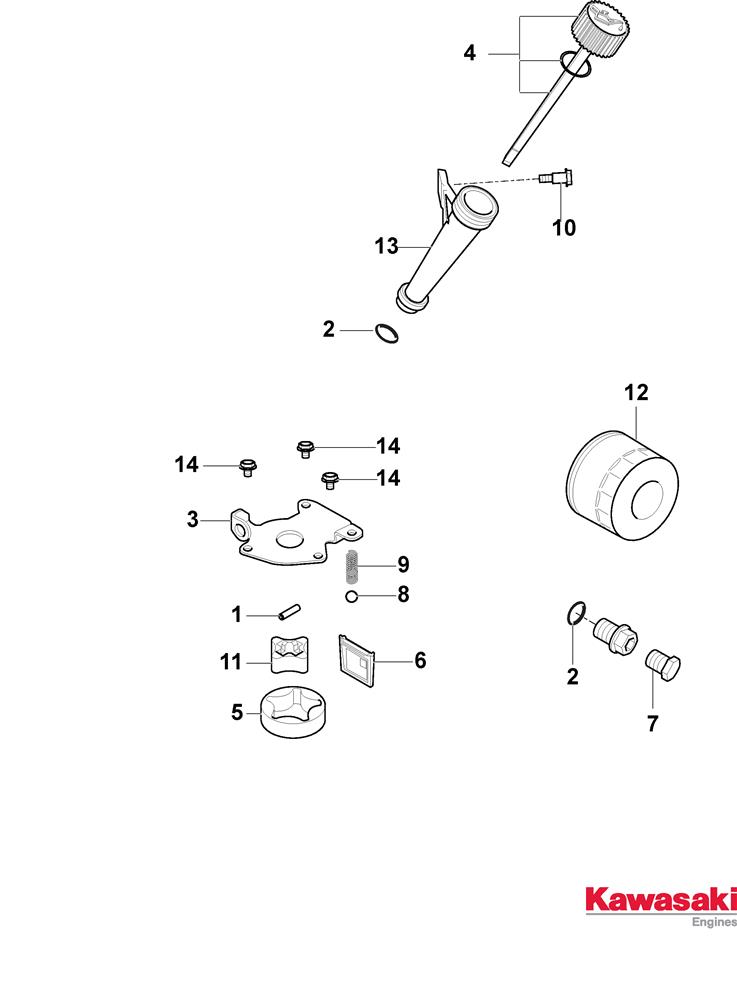

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118551056/0PIN- SPRING, 4X20N/A POA
002118551063/0O RING,16MM£1.83 Add to
003118551001/0PLATE, ROTORN/A POA
004118551004/0CAP- ASSY, OIL GAUGEN/A POA
005118551014/0ROTOR -PUMP, OUTERN/A POA
006118551041/0FILTER-OIL- ZRUSENON/A POA
007118551079/0PLUG - NLAN/A POA
008118551081/0BALLN/A POA
009118551083/0SPRINGN/A POA
010118551087/0BOLTN/A POA
011118551015/0ROTOR-PUMP, INNERN/A POA
012118551042/0OIL FILTER£32.12 Add to
013118551061/0FILLERN/A POA
014112735699/0SCREW M6 x 12£1.79 Add to
