Camshaft

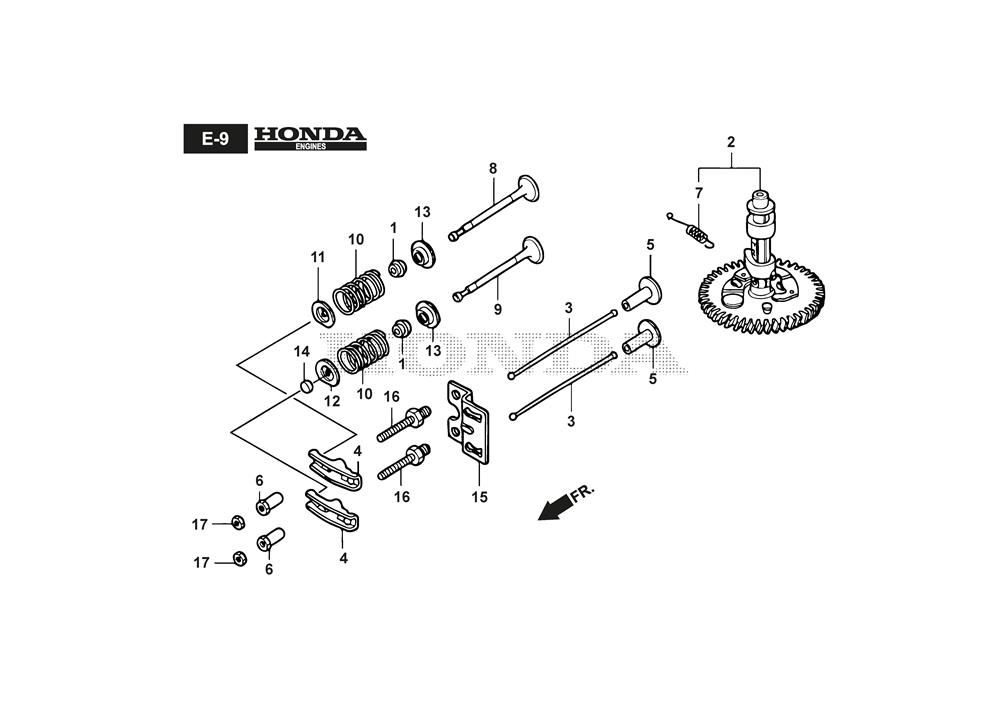

Camshaft assembly details for Stiga Estate 3384 H (2T2100381/14) 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118551739/0	SEAL, VALVE STEM	£13.77	Add to
002	118551815/0	CAMSHAFT ASSY.	£361.39	Add to
003	118551827/0	ROD, PUSH	£18.00	Add to
004	118551836/0	ARM, VALVE ROCKER	£23.58	Add to
005	118551841/0	LIFTER, VALVE	£34.35	Add to
006	118551842/0	PIVOT, ROCKER ARM	£7.92	Add to
008	118551853/0	VALVE, IN.	£41.16	Add to
009	118551860/0	VALVE, EX.	£68.42	Add to
010	118551871/0	SPRING, VALVE	£9.14	Add to
011	118551878/0	RETAINER, IN. VALVE SPRING	£4.10	Add to
012	118551880/0	RETAINER, EX. VALVE SPRING	£4.10	Add to
013	118551881/0	SEAT, VALVE SPRING	£7.10	Add to
014	118551882/0	ROTATOR, VALVE	£9.00	Add to
015	118551884/0	GUIDE, PUSH ROD	£10.91	Add to
016	118552223/0	BOLT, PIVOT, 8MM	£13.64	Add to
017	118552232/0	NUT, PIVOT ADJUSTING	£3.69	Add to
