BODYWORK BONNET

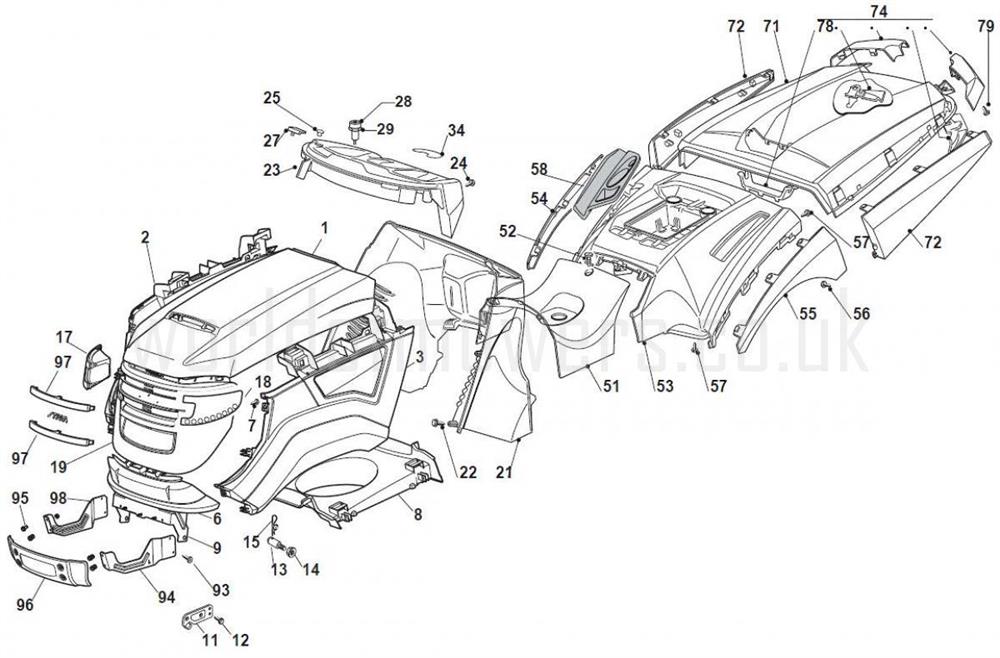

BODYWORK BONNET assembly details for Stiga 2T1525281/14 ESTATE PRO 9122 XWS (B&S 8240) 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076866/0UPPER ENGINE HOOD [YELLOW]£112.02 Add to
002382394646/0LEFT SIDE HOODN/A POA
003382394645/0RIGHT SIDE HOODN/A POA
006325076959/1LOWER FRONT BONNET [GREY]£18.74 Add to
007112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
008325108031/0INTAKE CONVEYOR£57.52 Add to
009325774301/2HOOD SUPPORT£18.13 Add to
011325547159/1PLATE£5.05 Add to
012112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
013125510169/1BONNET PIN (ROUND VERSION)£3.15 Add to
014112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
015124487998/0R CLIP D=2£2.06 Add to
017382185500/1HEADLIGHT R/H [LED]£170.61 Add to
018382185501/1HEADLIGHT L/H [LED]£170.61 Add to
019325076953/0LOWER FRONT HOOD [GREY]£61.60 Add to
021325785449/0DASHBOARD SUPPORT [GREY]£76.59 Add to
022112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
023325120256/0DASHBOARD [BLACK]£48.78 Add to
024112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
025125120200/0CAP (OBSOLETE)£2.54 Add to
027125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
028325605003/0PUSH BUTTON REVERSE GEAR£42.51 Add to
029325256250/0THREADED RING NUT£2.87 Add to
034325207185/0COVER£2.06 Add to
051325110467/0CENTRAL COVER [GREY]£47.71 Add to
052125580020/2SPRING TENSIONED SCREW£7.23 Add to
053325109754/1WHEELS COVER [YELLOW]£130.83 Add to
054325109793/0R/H WHEEL COVER [GREY]£20.09 Add to
055325109794/0L/H WHEEL COVER [GREY]£20.09 Add to
056112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
057112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
058325207184/0COVER [BLACK]£20.30 Add to
071325110308/0GRASSCATCHER TOP [YELLOW]£170.61 Add to
072382110299/0REAR WHEEL COVER KIT [TCX]£54.79 Add to
074382110300/1ANGULAR SUPPORTS KIT£38.44 Add to
078325394009/0GRASSCATCHER HANDLE [BLACK]£8.32 Add to
079112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
093112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
094382785265/0LEFT SUPPORT BUMPER£41.65 Add to
095112800815/0SCREW TE FL M8 x 16£2.06 Add to
096382263503/0FRONT BUMPER GUARD£28.90 Add to
097325076956/0FRONT MOULDING£5.46 Add to
098382785263/0RIGHT SUPPORT BUMPER£41.65 Add to
