GRASSCATCHER

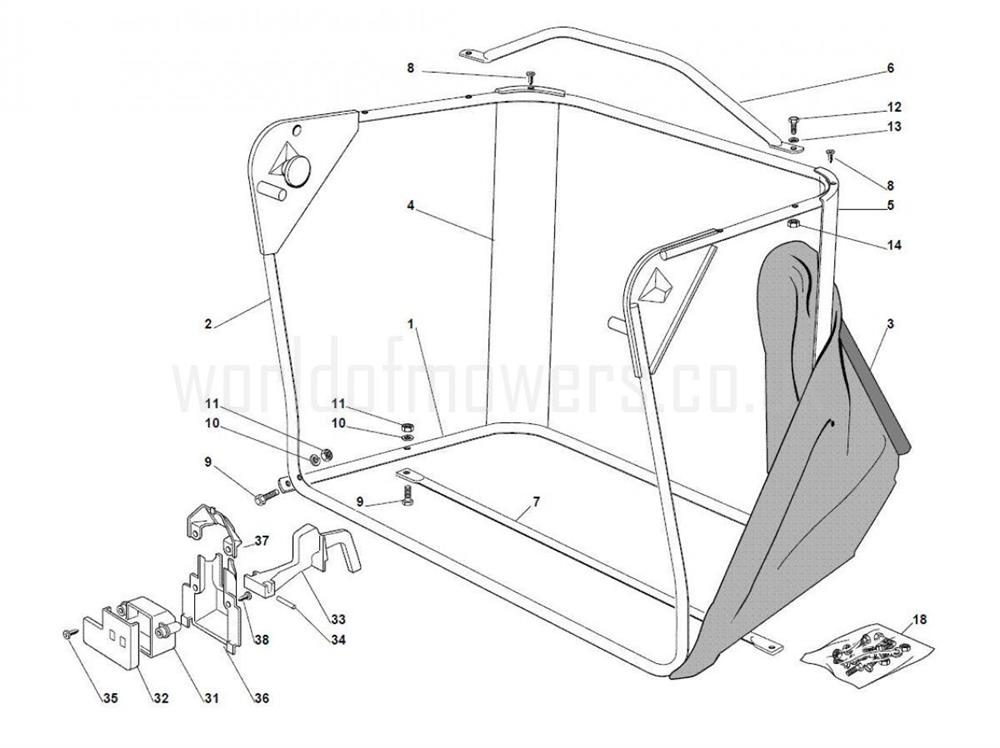

GRASSCATCHER assembly details for Stiga 2T0220281/14 COMBI 3072 H (B&S 3130 AVS) 2015 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	384801103/0	LOWER GRASSCATCHER FRAME	£21.67	Add to
002	384801105/1	UPPER GRASSCATCHER FRAME	£84.77	Add to
003	184106069/0	GRASSCATCHER BAG 72cm	£99.76	Add to
004	327010205/0	RIGHT ANGLE SUPPORT	£14.27	Add to
005	327010207/0	LEFT ANGLE SUPPORT	£14.27	Add to
006	384869051/0	GRASSCATCHER HANDLE [BLACK]	£10.77	Add to
007	384650100/0	LOWER FRAME REINFORCEMENT BAR	£10.95	Add to
008	112729601/1	SELF-TAP SCREW TE FL 5.5 x 16	£2.06	Add to
009	112792099/0	HEX HEAD SCREW M6 x 30	£1.79	Add to
010	112582101/0	WASHER M6	£2.06	Add to
011	112292100/0	HEXAGON NUT M6	£1.47	Add to
012	112674701/0	SCREW TE M6 x 35	£2.06	Add to
013	112521331/0	WASHER M6 6,4X12,5X1,6 BLACK	£2.06	Add to
014	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
018	384180180/0	GRASSCATCHER SCREW OUTFIT	£10.36	Add to
031	125600041/0	MICRO PROTECTION COVER	£2.32	Add to
032	125600042/0	MICRO PROTECTION COVER	£3.41	Add to
033	125318124/0	MICRO CONTROL LEVER	£2.32	Add to
034	112400030/0	PIN D=3 L=30	£1.91	Add to
035	112728510/0	SELF-TAP SCREW 4.8 x 13	£3.15	Add to
036	125600047/0	MICRO SWITCH PROTECTION COVER	£2.06	Add to
037	125600048/0	MICRO SWITCH COVER	£2.06	Add to
038	112728450/0	SELF-TAP SCREW 4.8 x 19	£2.81	Add to
