Protection, Belt

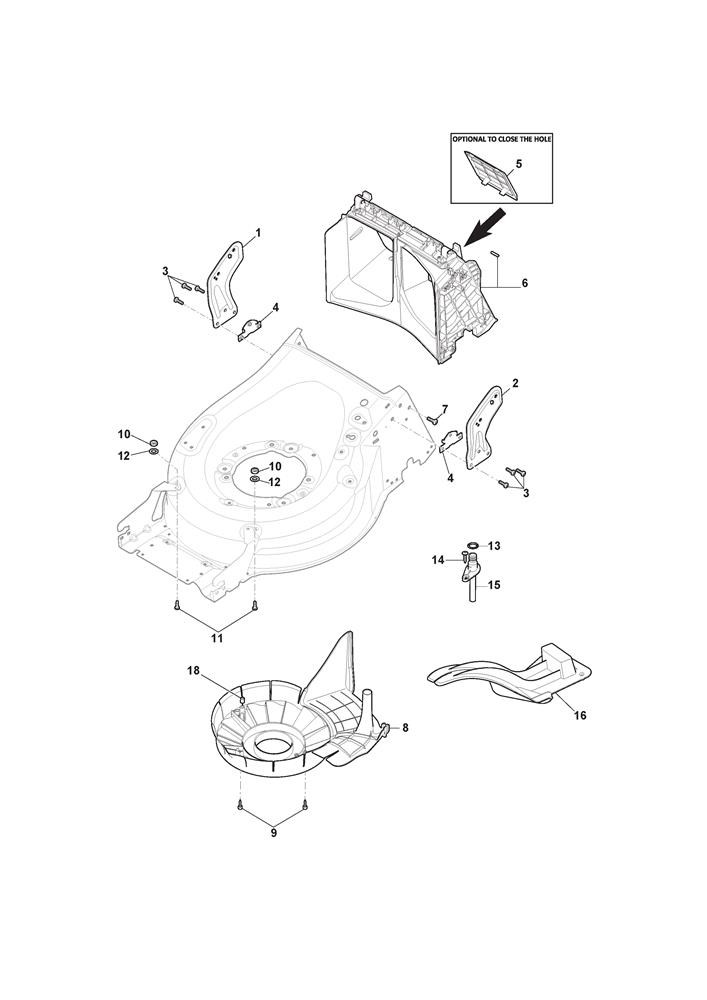

Protection, Belt assembly details for Stiga Combi 55 SQ (294556848/ST1) 2021 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381005235/2	RIGHT HANDLE SUPPORT MP1 STIGA GREY WRIN	£8.44	Add to
002	381005237/2	LEFT HANDLE SUPPORT MP1 STIGA GREY WRIN	£8.44	Add to
003	112727801/0	SCREW TCB TORX M6 x 20	£2.06	Add to
004	322545213/0	FIXING PLATE	£2.06	Add to
005	322600310/0	REAR DOOR	£5.46	Add to
006	381102204/1	REAR CONVEYOR ASSEMBLY MP1 50-55	£28.90	Add to
007	112728904/0	SELF-TAPPING SCREW K60 X 22 WM1451	£1.95	Add to
008	322060271/2	BELT PROTECTION GUARD [MP1 55]	£24.81	Add to
009	112735645/0	SCREW TCB TORX M4 x 20	£2.18	Add to
010	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
011	112815206/0	SCREW M6 x 12 UNI5732 8.8 WHITE ZINC	£2.05	Add to
012	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
013	119035000/0	O RING 10.77 x 2.62	£5.46	Add to
014	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
015	322034002/0	WASHING CONNECTION	£2.06	Add to
016	322140246/0	MULCHING PLUG [MP1 55]	£13.77	Add to
018	122042073/0	BELT GUARD BUSH MP1-MP2	£2.06	Add to
