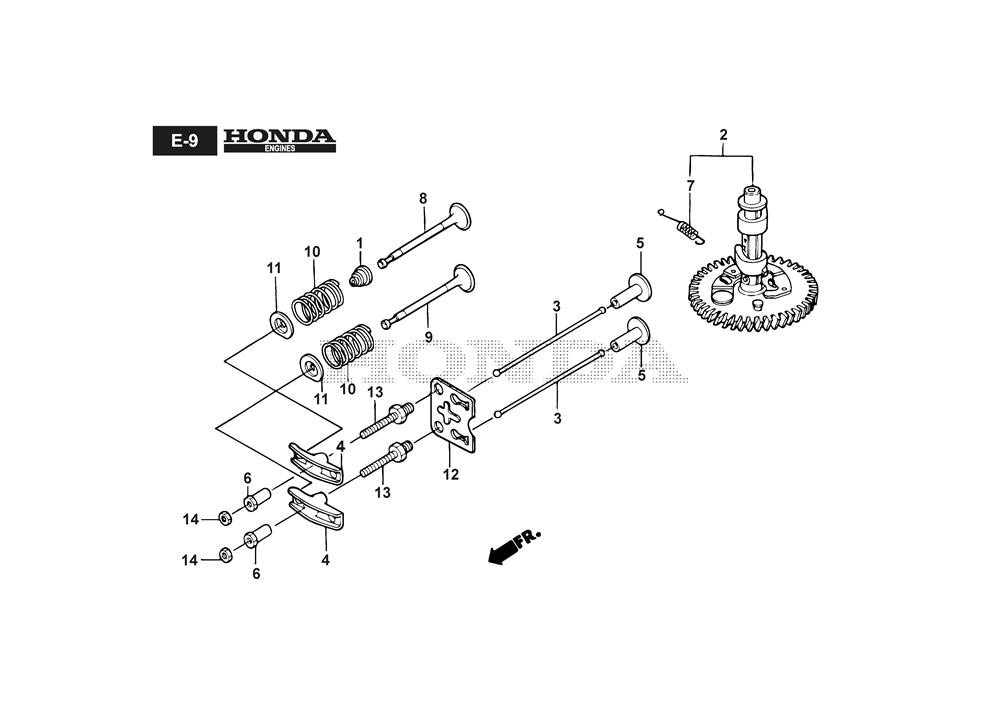

Camshaft assembly details for Stiga TWINCLIP 55 S H BBC - GXV 160 OHV (294568038/ST1) 2020 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref | No | Description | Price | |
|---|
| 001 | 118551738/0 | SEAL, VALVE STEM | £9.00 | Add to |
| 002 | 118551814/0 | CAMSHAFT ASSY. | £238.75 | Add to |
| 004 | 118551832/0 | ARM, VALVE ROCKER | £20.45 | Add to |
| 005 | 118551840/0 | LIFTER, VALVE | £30.26 | Add to |
| 006 | 118551843/0 | PIVOT, ROCKER ARM | £11.46 | Add to |
| 008 | 118551854/0 | VALVE, IN. | £34.35 | Add to |
| 009 | 118551861/0 | VALVE, EX. | £52.06 | Add to |
| 010 | 118551873/0 | SPRING, VALVE | £7.10 | Add to |
| 011 | 118551876/0 | RETAINER, VALVE SPRING | £12.96 | Add to |
| 012 | 118551883/0 | PLATE, PUSH ROD GUIDE | £6.83 | Add to |
| 013 | 118552223/0 | BOLT, PIVOT, 8MM | £13.64 | Add to |
| 014 | 118552232/0 | NUT, PIVOT ADJUSTING | £3.69 | Add to |
